Cable Industry Accessories
Insulation, mechanical protection and environmental sealing for power cable ends — from CCV/VCV curing-line seals through tamper-proof end caps for transport and storage.

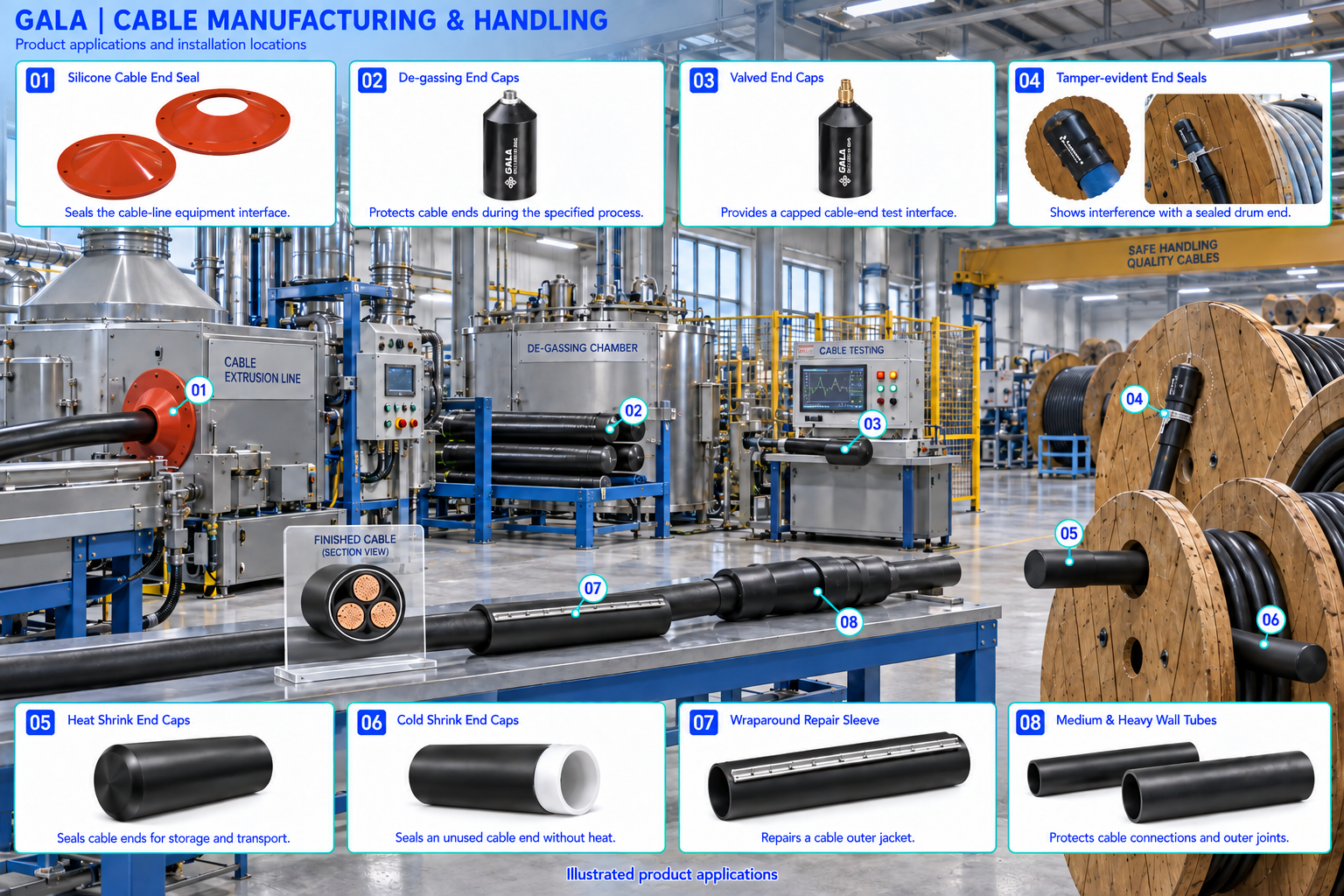

Products in this illustration (8)
- Silicone Cable End Seal
Seals the cable-line equipment interface.
- De-gassing End Caps
Protects cable ends during the specified process.
- Valved End Caps
Provides a capped cable-end test interface.
- Tamper-evident End Seals
Shows interference with a sealed drum end.
- Heat Shrink End Caps
Seals cable ends for storage and transport.
- Cold Shrink End Caps
Seals an unused cable end without heat.
- Wraparound Repair Sleeve
Repairs a cable outer jacket.
- Medium & Heavy Wall Tubes
Protects cable connections and outer joints.
Product range
Products for this industry (14)
Heat Shrink Cable End Caps
Cold Shrink End Cap
Temperproof Heat Shrink Sealing Caps
De-gassing End Caps
Heat Shrink Valved End Caps
PVC End Caps
Heat Shrink Medium/Heavy Wall Tubes
Cold Shrink Tubing
Heat Shrink Cable Repair Sleeve
Heat Shrink Wrap Around Sleeve
Silicone Cable End Seal
Heat Shrinkable Cable Joints
Show 2 more products
Overview
Insulation, mechanical protection and environmental sealing for power cable ends, joints and terminations, built for the cable manufacturing and jointing process.

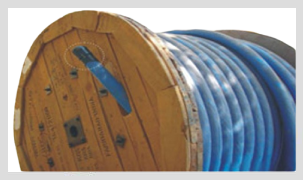

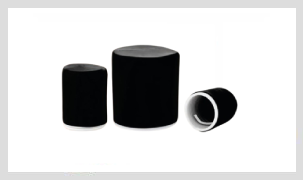

Heat Shrink Cable End Caps and Cold Shrink End Caps (EPDM) give mechanical protection and an environmental seal to cable ends in XLPE, PVC, PILC or rubber-sheathed jackets; the tamper-proof heat shrink seal also protects against pilferage claims on stored or transported cable.
Read the full overview

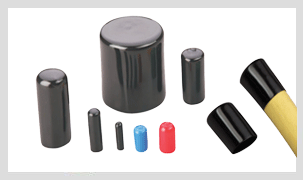

De-Gassing End Caps release the constantly evolving gas generated inside high voltage and extra-high-voltage cable (33 kV and above) during transport and storage in hot climates. Valved Heat Shrink End Caps are for pressurised telecom cable, and PVC End Caps seal the ends of coaxial cable, general cables and wires.

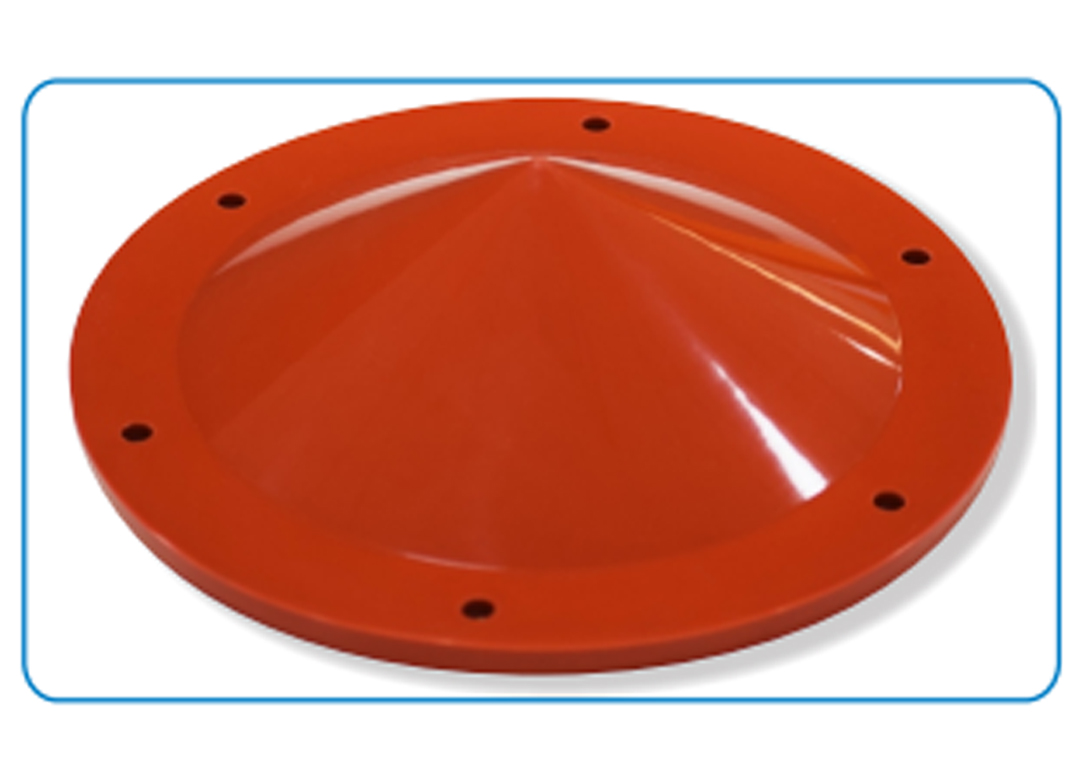

Elastomeric End Seal holds pressure to the desired level in CCV/VCV curing lines during production, made from a specially formulated rubber compound; it also helps neutralise the usage of process water or gas by holding the cable tight during production runs.

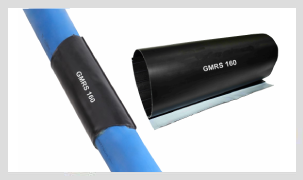

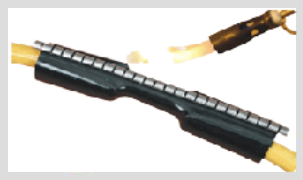

Heat Shrink Cable Repair Sleeve and Wrap Around Sleeve repair damaged cable jacket — folded around the cable and heat shrunk, or zipped up with a stainless steel channel first — and Medium/Heavy Wall Tube repairs cable jackets and insulates the cable pulling eye. High-Shrink Ratio HS Tube (GMW 5x) reaches a shrink ratio up to 5:1, so one part covers large dimensional transitions between cables, connectors and back shells.
Heat Shrinkable Cable Joints and CLASS 1 Terminations, up to 66 kV Class, complete the same power cable up to the point it's put into service.
Applications Served
- Power cable manufacturing and CCV/VCV curing lines
- Tamper-proof sealing of cable ends against pilferage claims
- High voltage and EHV cable transport/storage (33 kV and above)
- Cable jacket repair
What Gala Offers
- Heat shrink and cold shrink (EPDM) cable end caps for XLPE, PVC, PILC and rubber-sheathed cable
- De-gassing end caps release evolving gas from HV/EHV cable (33 kV and above) in hot climates
- Elastomeric end seal holds pressure in CCV/VCV curing lines
- Heat shrink cable repair sleeve and wrap-around sleeve for jacket repair
- High shrink ratio tube (GMW 5x) up to 5:1, with optional hot-melt adhesive lining
- Heat shrinkable cable joints and CLASS 1 terminations up to 66 kV Class
