Cable Joints (GXLT / GXS / GPS Series)
Heat shrinkable, waterproof straight-through and transition joint kits connecting MV power cable, spanning PVC, XLPE and PILC construction from 1.1 kV to 36 kV.
More datasheets
Full dimensional specifications and technical data — download the sheet for your size.
- GALA GXSS 1236 Straight Joint XLPE 2025
- GALA GXLT GPLT LV Straight Joint 2025
- GALA GPS 1112 Straight Joint PILC 2025
Show 3 more sheets for related products

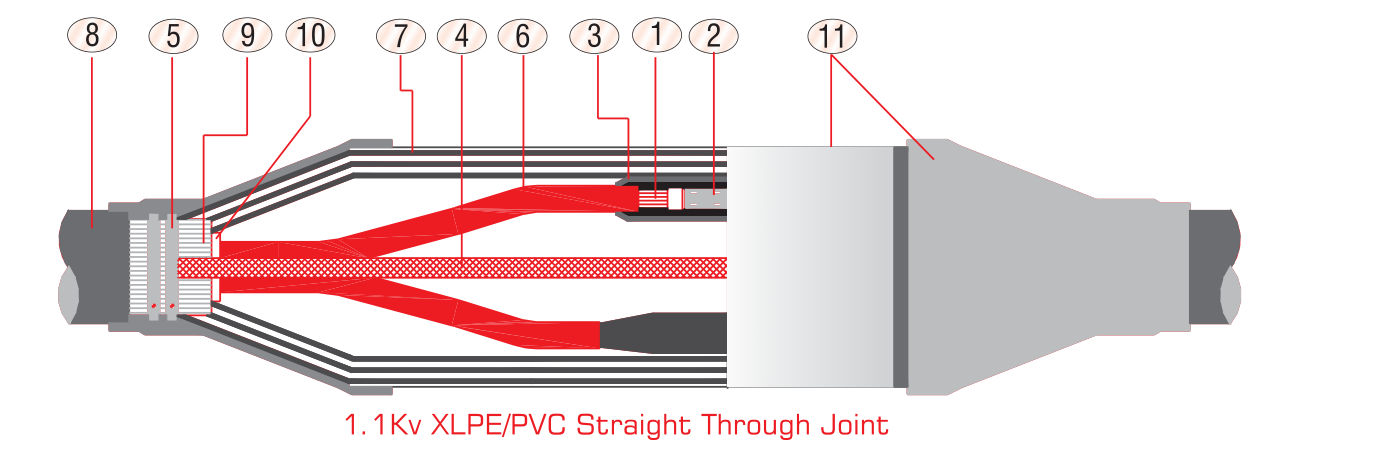

Dimensions & Drawings

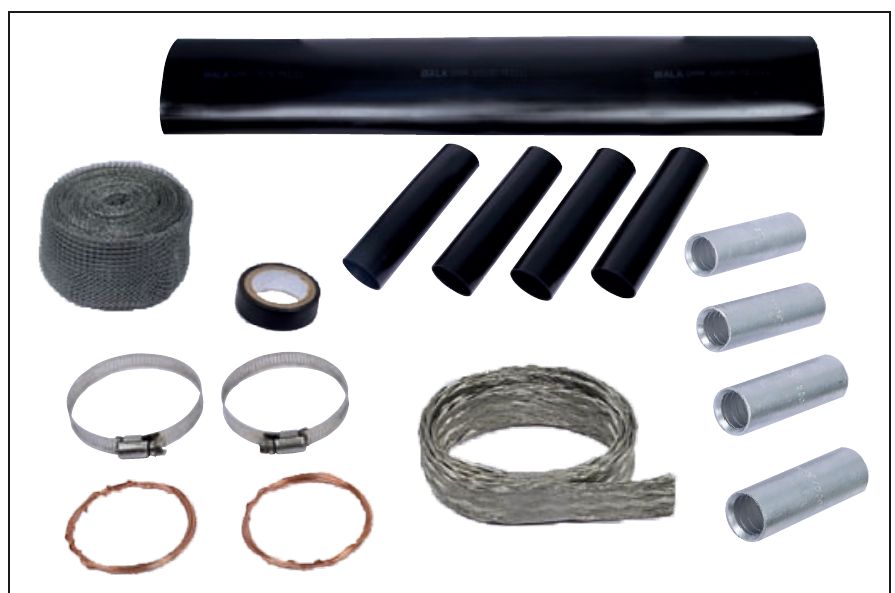

Product Images
A cable joint connects two lengths of power cable end to end and restores the insulation, screening and mechanical protection that were built into the original cable. Gala supplies it as a heat-shrinkable kit, sized to the cable's core count, insulation and voltage class.
A transition joint (GTJ series) does the same job between two different cable constructions — typically an older paper-insulated lead-covered (PILC) run being extended in XLPE.
Covered on this page
- Cable Joints - Heat Shrinkable Joints & Terminations
- CABLINK
Features & Benefits
- GXLT/GPLT series: waterproof straight-through joints for 1, 2, 3 or 4-core PVC/XLPE and paper-insulated cable up to 3.3 kV
- GXS/1236 kV series: straight-through joints for 3-core XLPE/PVC cable up to 36 kV
- GXSS-1236 series: waterproof joints for single-core XLPE/EPR/PVC cable up to 36 kV
- GPS/1112 and GPS/2436 series: straight-through joints for 3-core PILC cable up to 33 kV
- GTJ/1112 kV and GTJ/2436 kV series: PILC-to-XLPE transition joints up to 36 kV
- GXLTS series: heat shrinkable straight-through joints for submersible cable
Applications
- Straight-through jointing of MV power cable up to 36 kV
- PILC-to-XLPE transition jointing
- Cable splicing on distribution feeders
FAQs
Frequently Asked Questions
What is the Cable Joints used for?
It is used for:
- Straight-through jointing of MV power cable up to 36 kV
- PILC-to-XLPE transition jointing
- Cable splicing on distribution feeders
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
