Heat Shrink Shroud (GHSS)
Gala Heat Shrink Shroud (GHSS) is a cross-linked polyolefin sleeve, internally lined with hot melt adhesive, that seals the point where a cable enters a cable gland to IP68.
- ASTM D638
- ASTM D792
- ASTM D2671
Material properties
Technical Specifications
| Technical Specification | ||
|---|---|---|
| PROPERTIES | VALUE | STANDARD |
| Physical | ||
| Tensile Strength | 12 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 350 % (min.) | ASTM D638 |
| Density | 1.0± 0.2 g/cm³ | ASTM D792 |
| Longitudinal Change | -10% (max.) | ASTM D2671 |
| Hardness | 45 ±10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (150 °C for 168 hrs.) | ASTM D2671 |
| Tensile Strength | 12 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min.) | ASTM D638 |
| Low Temperature Flexibility(-40 °C for 4 hrs.) | No Cracking | ASTM D2671 |
| Heat Shock (250 °C for 30 min.) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125 °C | IEC 216 |
| Continuous Temperature Limit | -40 to +110 °C | IEC 216 |
| Electrical | ||
| Di-electric Strength(2mm Wall) | 12 kV/mm.(min) | ASTM D149 |
| Volume Resistivity | 1 × 10¹² Ohm.cm (min) | ASTM D257 |
| Dielectric constant | 5 (max.) | ASTM D150 |
| Weathering: The material from which Medium and Heavy wall tubings are manufactured contains carbon black to protect it from UV light. | ||
Selection Chart
| Selection Chart | |||
|---|---|---|---|

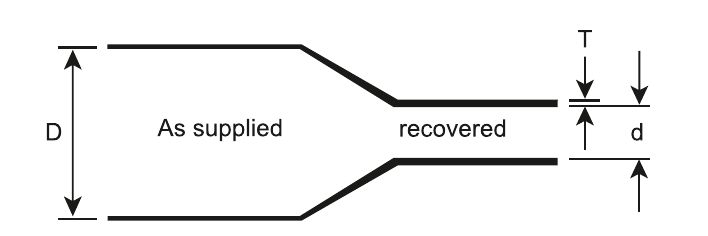

| Code | D min.(mm) | d max.(mm) | T±10%(mm) |
| GMW 22/6 | 22 | 6 | 2.3 |
| GMW 30/8 | 30 | 8 | 2.6 |
| GMW 33/10 | 33 | 10 | 2.6 |
| GMW 40/12 | 40 | 12 | 2.7 |
| GMW 50/16 | 50 | 16 | 2.7 |
| GMW 65/19 | 65 | 19 | 2.7 |
| GMW 70/22 | 75 | 22 | 2.7 |
| GMW 95/25 | 95 | 25 | 3.0 |
Dimensions & Drawings

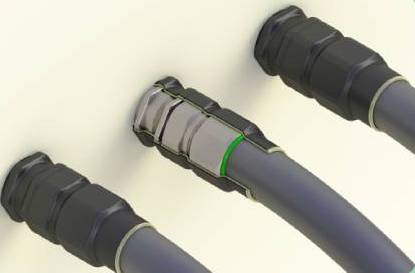

GHSS provides a watertight, fume-tight seal where a cable enters a cable gland. The hot-melt adhesive lining gives complete environmental protection from moisture, dust and water, to IP68 (Ingress Protection).
Manufactured from cross-linked polyolefin.
Covered on this page
- Heat Shrink Shroud
Features & Benefits
- IP68 Ingress Protection with hot-melt adhesive lining
- Dielectric strength 12 kV/mm min., volume resistivity 1×10¹² Ohm.cm min. (ASTM D149, ASTM D257)
- Tensile strength 12 N/mm² min., elongation 350% min. (ASTM D638)
- Continuous temperature limit -40°C to +110°C (IEC 216)
- Cross-linked polyolefin, resistant to weathering, UV, chemicals and solvents
- Custom dimensions, thickness, length and colours on request
Applications
- Sealing the cable entry point on cable glands
- Strain relief and moisture, dust and water protection at gland entries
Standards & Compliance
- ASTM D638
- ASTM D792
- ASTM D2671
- ASTM D2240
- ASTM D570
- ESI 09-11
- ASTM D149
- ASTM D257
- ASTM D150
- IEC 216
FAQs
Frequently Asked Questions
What is the Heat Shrink Shroud used for?
It is used for:
- Sealing the cable entry point on cable glands
- Strain relief and moisture, dust and water protection at gland entries
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. Start at one end and work steadily along to the other.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D638
- ASTM D792
- ASTM D2671
- ASTM D2240
- ASTM D570
- ESI 09-11
- ASTM D149
- ASTM D257
- ASTM D150
- IEC 216
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
