Solar Energy Cable Accessories
Cable joints, terminations and busbar insulation for solar energy grid connectivity, plus creepage extenders and overhead line covers — so connections stay safe, don't overheat and aren't vulnerable to wildlife.

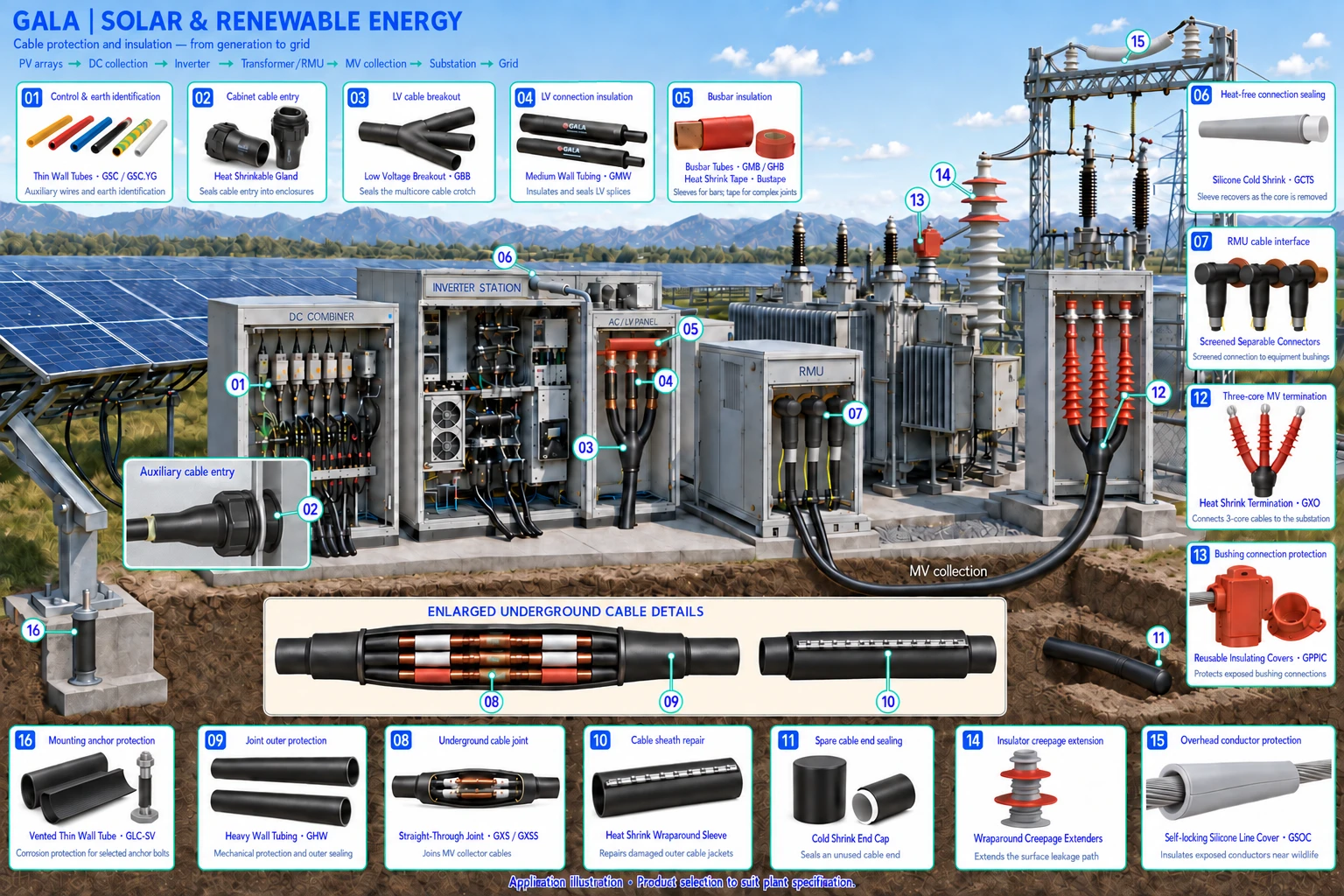

Products in this illustration (16)
- Thin Wall Tubes
Control-wire insulation and earth identification.
- Heat Shrinkable Gland
Seals the auxiliary enclosure cable entry.
- Low Voltage Breakout
Seals the common cable crotch.
- Medium Wall Tubing
Insulates an individual LV connection.
- Busbar Tubes & Tape
Insulates busbars and complex connections.
- Silicone Cold Shrink
Heat-free sealing at an auxiliary cable connection.
- Screened Separable Connectors
Connects cables to the RMU bushings.
- Straight-through Cable Joint
Connects the underground collector cables.
- Heavy Wall Tubing
Provides joint outer sealing and protection.
- Wraparound Repair Sleeve
Repairs a cable jacket with a sliding closure channel.
- Cold Shrink End Cap
Seals a horizontal spare cable end.
- Three-core Cable Termination
Connects one three-core cable at the substation.
- Reusable Bushing Covers
Covers exposed transformer terminal connections.
- Creepage Extenders
Extends the surface leakage path on the insulator.
- Self-locking Silicone Line Cover
Protects a conductor jumper between insulated supports.
- Vented Thin Wall Tube
Protects selected mounting-anchor shanks against corrosion.
Product range
Products for this industry (14)
Heat Shrinkable Cable Joints
Heat Shrinkable Cable Terminations
Screened Separable Connectors
Heat Shrink Medium/Heavy Wall Tubes
Cold Shrink Tubing
Heat Shrink Busbar Sleeves - up to 66kV
Heat Shrink Tape
Wildlife and Asset Protection Products / Insulation Enhancement Products
High Voltage Wraparound Creepage Extenders
Bus/Bushing Connection Insulating Covers (Reusable)
Overhead Line Cover - Polyolefin
Overhead Line Tube - Polyolefin
Overview
Heat Shrink Joints for PVC/PILC/XLPE/EPR low and medium voltage power cable up to 66 kV Class, with design specification and quality upheld to the most stringent national and international standards.
CLASS 1 Terminations make the terminating length between the wire and its contact point tamper-proof against environmental factors — the entire encapsulated length is protected.
Read the full overview
Screened Separable Connectors connect single- and three-core polymeric cable to switchgear, transformers and RMUs on type "C" bushings, 630A to 24 kV standard and 630/1250A to 36 kV in the extended range, in EPDM rubber with a touch-proof earthed outer screen.
GMW (medium wall) tube gives environmental protection to low voltage cable terminations and insulates connectors on splices up to 3.3 kV; GHW (heavy wall) tube gives mechanical protection and outer sealing on underground splices up to 36 kV. Cold Shrink Tube installs the same joint without a torch — factory-expanded onto a removable core.
Heat Shrink Busbar Sleeve insulates busbar systems up to 36 kV, protects against accidental flash-over and reduces air clearance; a separate extra-heavy-wall series (GEHB) extends that to 66 kV. Heat Shrink Tape insulates medium voltage busbar connections where tubing won't fit.
Overhead Line Cover and Overhead Line Tube in UV-resistant polyolefin, and Silicone Overhead Line Covers in non-tracking silicone, give retrofit Phase-to-Phase and Phase-to-Ground insulation on conductors against trees, birds and animals.

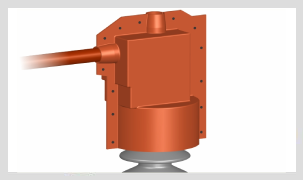

Creepage Extenders seal to porcelain or glass insulators to drive high leakage currents around the skirt edge and prevent pollution flashover. Bus/Bushing Connection Insulating Covers (GPFIC), in a UV-stable high-performance material, protect energised conductors and busbar from flashover due to contact from birds, squirrels and other wildlife.
Applications Served
- Solar energy grid connectivity cable joints and terminations
- Low and medium voltage cable joints and terminations up to 66 kV Class
- Busbar insulation and air-clearance reduction up to 66 kV
- Overhead line and busbar protection against bird and animal outages
What Gala Offers
- Heat shrink cable joints for PVC/PILC/XLPE/EPR cable up to 66 kV Class
- CLASS 1 heat shrink terminations, tamper-resistant to environmental factors
- Screened separable connectors: 630A to 24 kV standard, 630/1250A to 36 kV extended range, EPDM rubber
- Heat shrink busbar sleeve up to 36 kV (66 kV in the extra-heavy-wall GEHB series)
- UV-resistant polyolefin and non-tracking silicone overhead line covers
- Creepage extenders and GPFIC bus/bushing covers against pollution flashover and wildlife contact
