Heat Shrink Termination Kit GLT-1100 — 1.1/3.3 kV

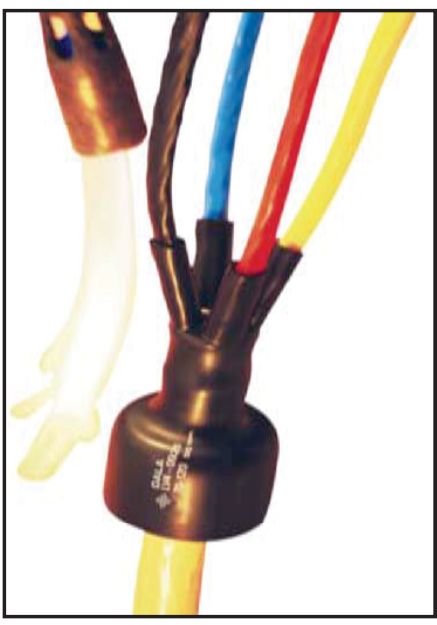

GLT-1100 series heat shrinkable termination kit for 1, 2, 3, 3½ and 4-core extruded (XLPE/PVC) and paper-insulated cable, armoured or unarmoured, rated 1.1 kV and 3.3 kV.
Choose a size
Selection Charts
| Cable size(sq. mm) | Kit code, 1.1 kV | Kit code, 3.3 kV |
|---|---|---|
| 4x16-35 | GLT-01 | GLT-11 |
| 4x50-95 | GLT-02 | GLT-12 |
| 4x120-185 | GLT-03 | GLT-13 |
| 4x225-300 | GLT-04 | GLT-14 |
| 4x400-500 | GLT-05 | GLT-15 |
All kits are supplied with full kit contents for making a LV termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GLT-1100-Series page.

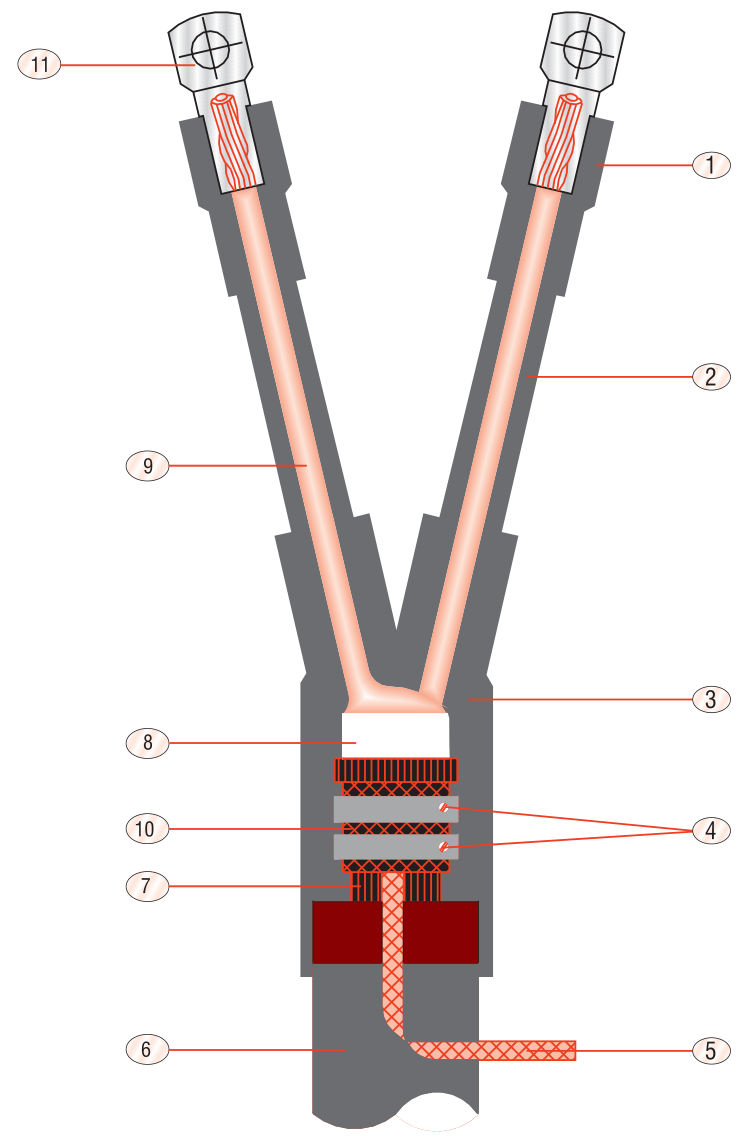

GLT-1100 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | H. S. Terminal Sleeve | 4 Nos. |
| 2. | Insulation Sleeve * | 4 Nos. |
| 3. | H. S. Cable Breakout | 1 No. |
| 4. | Jubilee Clamp | 1 No. |
| 5. | Tinned Copper Braid | 1 No. |
| 10. | Black Mastic Sealant Tape | 1 Roll. |
| 11. | Terminal Lug | 4 Nos. |
| Installation aids & accessories (part of standard kit) | ||
| • | Cleaning Tissue | 2 Nos. |
| • | Mopping Cloth | 1 No. |
| • | Installation Instruction Manual | 1 No. |
* Optional item. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GLT-1100 page.
Dimensional data
Technical Specification
| Electrical Performance | ||||
|---|---|---|---|---|
| Tests | Parmeter For Evaluation | Test Voltage Hightest Voltage Umax(kV) | Result | |
| Insulation Resistance | 1 mn. 500 V Dc | - | - | >10’ Ω |
| A.C. High Voltage Test (Dry) | 15 min. | 4 | 8 | No Breakdown & no Flashover |
| Impulse Witstand Test at Ambient Temperature | 10 Positive & 10 Negative | 8 | 12 | No Breakdown & no Flashover |
| Heating Cycle Test | 63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling | - | - | No Breakdown & no Flashover |
| Insulation Resistance after Impact Test (Immersed) | 1 min. 500 V Dc | - | - | >10’ Ω |
| Impulse Withstand Test at Elevated Temperature | 10 Positive & 10 Negative Conductor temperatur 95 to 100 °C | 8 | 12 | No Breakdown & no Flashover |
| Heating Cycle Test | 63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling | - | - | No Breakdown & no Flashover |
| D.C. High Voltage Test (Dry) | 5min | 15 | 21 | No Breakdown & no Flashover |

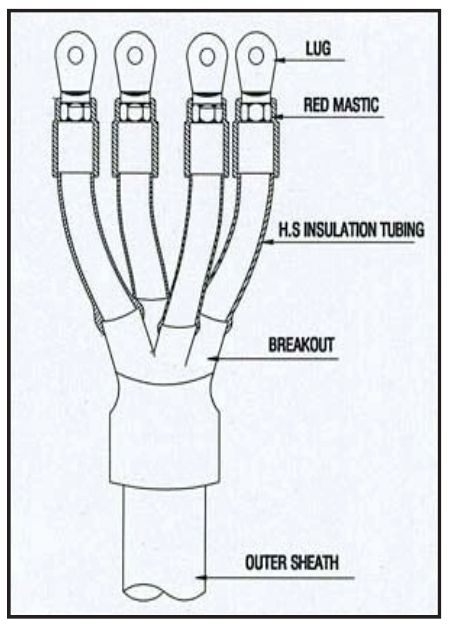

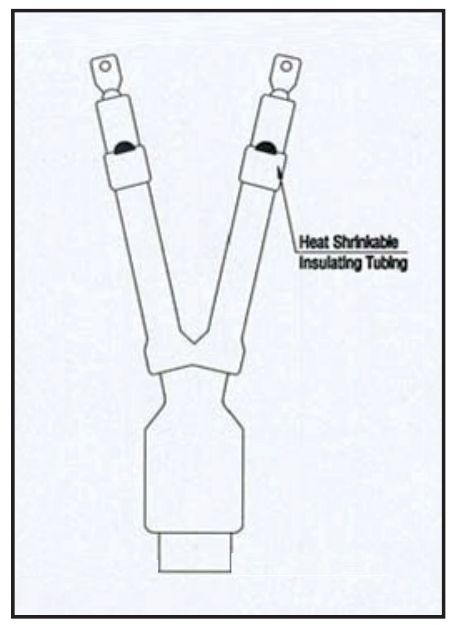

Dimensions & Drawings
GLT-1100 terminates low voltage power cable at a switchgear or equipment bushing, covering 1, 2, 3, 3½ and 4-core constructions in one kit family.
Covered on this page
- Cable Terminations - GLT - 1100 - Series Heat Shrinkable Terminations Suitable for PVC/XLPE Cables upto 3.3kV.
Features & Benefits
- Heat shrinkable terminal sleeve and insulation sleeve
- Heat shrinkable cable breakout for multi-core splitting
- Jubilee clamp, tinned copper earth braid, black mastic sealing tape and terminal lug
- Installation aids: cleaning tissue, mopping cloth and installation instructions
- Type tested: AC high voltage (dry) 4 kV / 8 kV for 15 minutes, impulse withstand 8 kV / 12 kV, DC high voltage (dry) 15 kV / 21 kV for 5 minutes — no breakdown or flashover
- 63-cycle heating test (5 hours heating, 3 hours cooling) and impulse withstand at 95–100°C conductor temperature
- Separate outdoor (GLT-01 to GLT-05) and indoor (GLT-11 to GLT-15) kit codes for 4x16–35 up to 4x400–500 sq mm cable
Applications
- Terminating 1.1 kV and 3.3 kV XLPE/PVC and paper-insulated LV cable
- Armoured and unarmoured cable terminations
