Heat Shrink Cable Joint Kit GPS/2436 — 24/36 kV PILC
GPS/2436 series heat shrinkable, waterproof straight-through joint kit for 3-core screened PILC cable up to 33 kV, covering both the 24 kV and 36 kV series.
Choose a size
Selection Charts
| Cable size (sq. mm), 24 kV | Kit code, 24 kV | Cable size (sq. mm), 36 kV | Kit code, 36 kV |
|---|---|---|---|
| 25-50 | GPS-21 | 35-70 | GPS-31 |
| 70-120 | GPS-22 | 95-150 | GPS-32 |
| 150-240 | GPS-23 | 185-300 | GPS-33 |
| 300-500 | GPS-24 | 400— | GPS-34 |
All kits are supplied with full kit contents for making a straight through joint. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPS/2436-Series page.

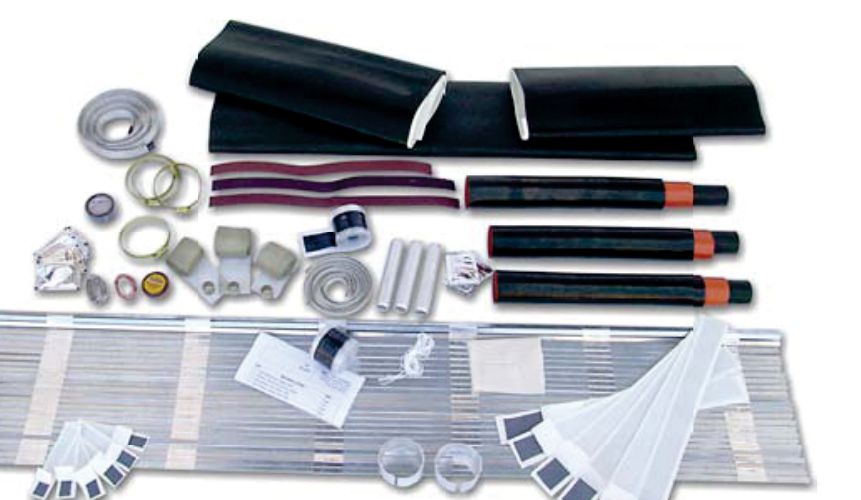

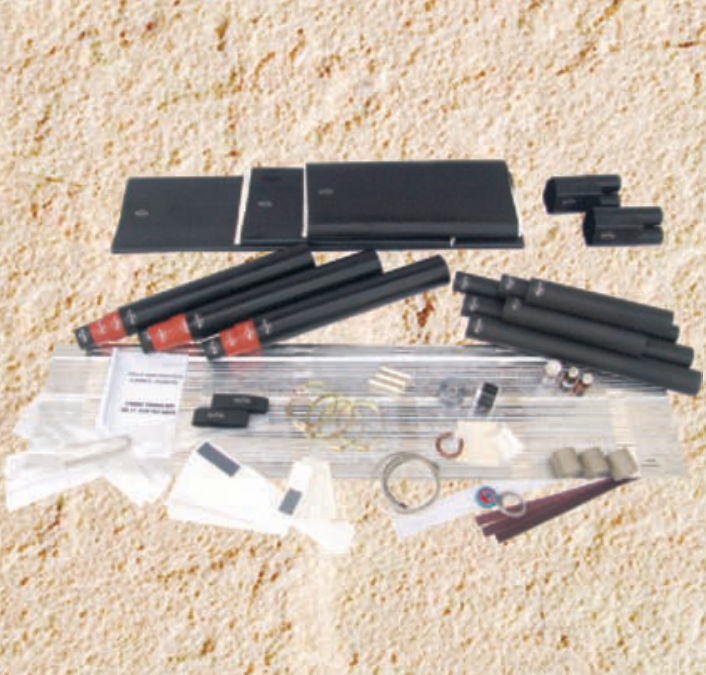

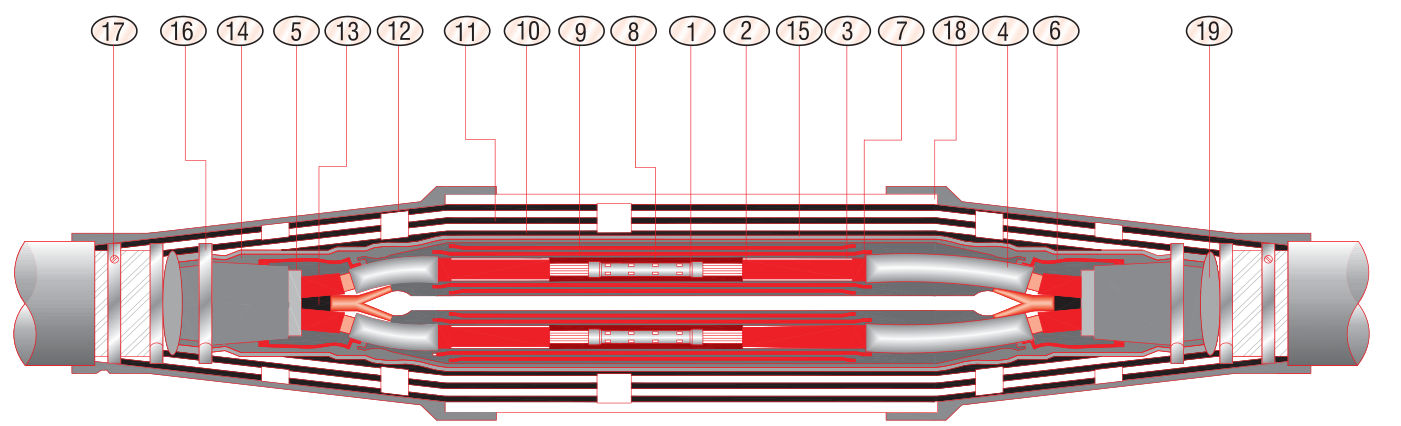

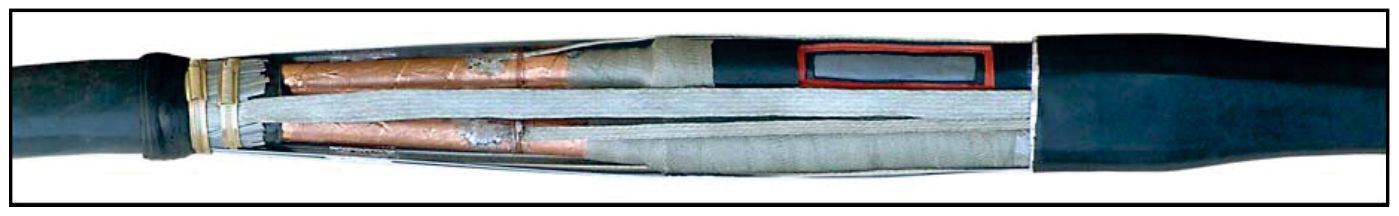

GPS/2436 — kit contents
| No. | Description |
|---|---|
| 1. | Inline Connector |
| 2. | Stress Control Mastic |
| 3. | Oil Barrier Sleeve |
| 4. | Conducting Tube (Black) |
| 5. | Void Filler |
| 6. | Conducting Breakout |
| 7. | Grey Mastic |
| 8. | Stress Control Tubing (Black) |
| 9. | Insulating Tube (Red) |
| 10. | Dual Wall Tubing (Black+Red) |
| 11. | Metallic Protection Cage |
| 12. | Adhesive Lined Side Sleeve |
| 13. | Insulating Wedge |
| 14. | Copper Mesh Tape |
| 15. | Earth Lead |
| 16. | Constant Force Spring Clamp |
| 17. | Worm Drive Clamp |
| 18. | Outer Jacketing Sleeve |
| 19. | Earthing Plumb |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPS/2436-Series page.
Dimensions & Drawings
GPS/2436 splices screened PILC cable at the top of Gala's GPS range, one kit family spanning both the 24 kV and 36 kV voltage classes.
Features & Benefits
- Inline connector and metallic protection cage
- Stress control mastic and adhesive-lined side sleeve
- Oil barrier sleeve and insulating wedge
- Conducting tube, copper mesh tape and void filler
- Earth lead, conducting breakout and constant force spring clamp
- Worm drive clamp, outer jacketing sleeve, red insulating tube and earthing plumb
- 15–24 kV system (8.7/15 kV, 11/11 kV, 12.7/22 kV): AC dry withstand 50 kV / 1 minute, DC withstand 96 kV / 30 minutes
- 36 kV system (19/33 kV): AC dry withstand 75 kV / 1 minute, DC withstand 144 kV, lightning impulse withstand 170 kV
- Kit codes GPS-21 to GPS-24 at 24 kV (25–500 sq mm) and GPS-31 to GPS-34 at 36 kV (35–400 sq mm)
Applications
- Straight-through jointing of 3-core screened PILC cable up to 33 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Cable Joint Kit GPS/2436 used for?
It is used for:
- Straight-through jointing of 3-core screened PILC cable up to 33 kV
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
