Wildlife Protection & Insulation Enhancement Products
Retrofit insulation covers, creepage extenders and busbar sleeves that stop outages caused by bird and animal contact — the risk is bare busbars, conductors and connections that can accidentally bridge phase or phase-to-ground.

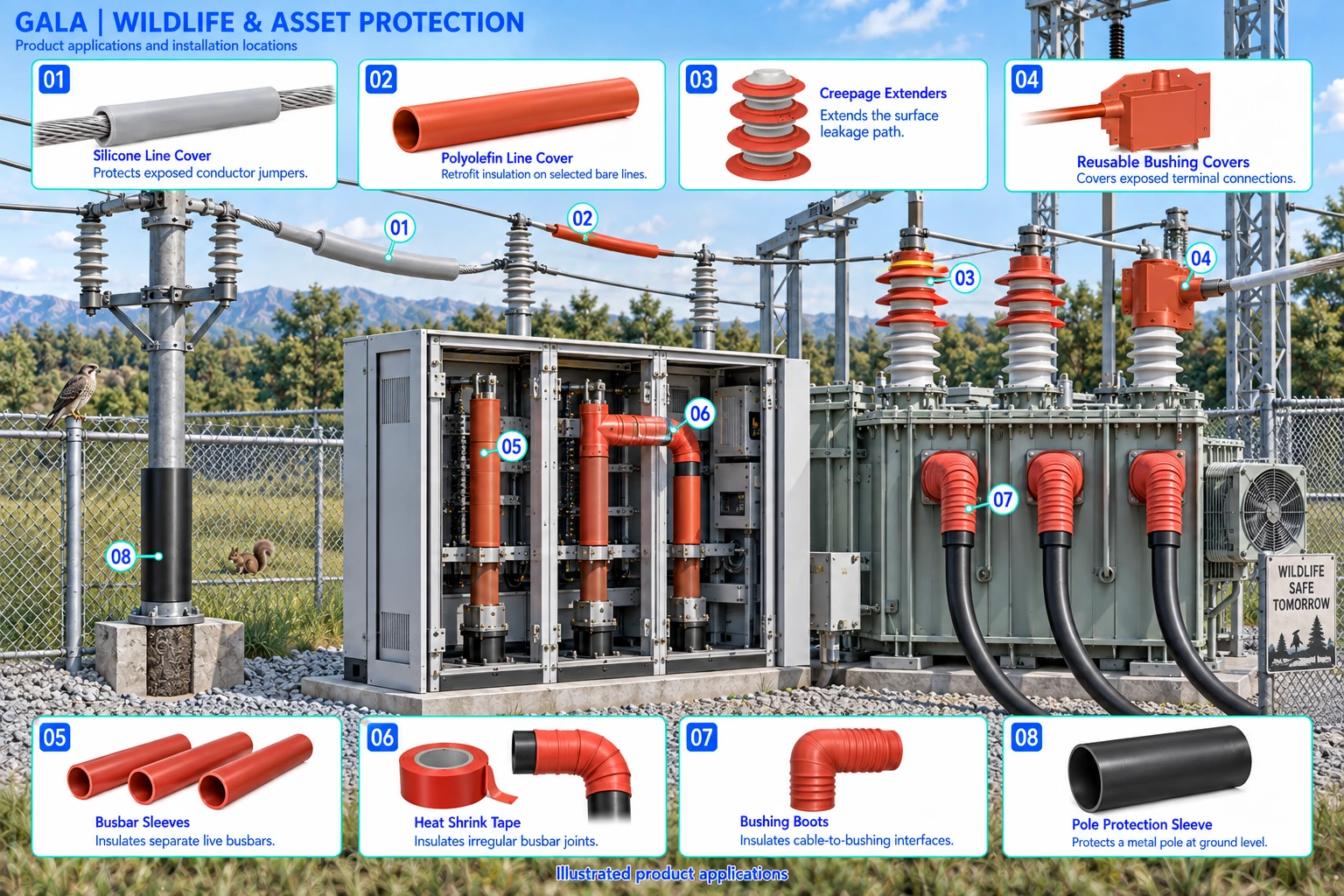

Products in this illustration (8)
- Silicone Line Cover
Protects exposed conductor jumpers.

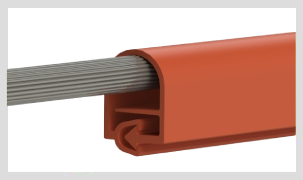

- Polyolefin Line Cover
Retrofit insulation on selected bare lines.
- Creepage Extenders
Extends the surface leakage path.
- Reusable Bushing Covers
Covers exposed terminal connections.
- Busbar Sleeves
Insulates separate live busbars.
- Heat Shrink Tape
Insulates irregular busbar joints.
- Bushing Boots
Insulates cable-to-bushing interfaces.
- Pole Protection Sleeve
Protects a metal pole at ground level.
Product range
Products for this industry (15)
Wildlife and Asset Protection Products / Insulation Enhancement Products
High Voltage Wraparound Creepage Extenders
Bus/Bushing Connection Insulating Covers (Reusable)
Overhead Line Cover - Polyolefin

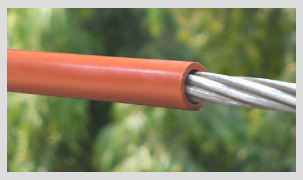

Overhead Line Tube - Polyolefin
Overhead Line Cover - Silicone - Inter-locking- Overhead Line Cover - Silicone - Self-locking
Heat Shrink Busbar Sleeves - up to 66kV
Heat Shrink Tape
Bushing Boot
Terminal Protector

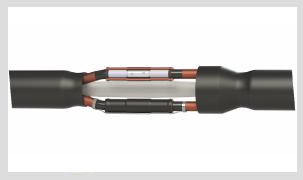

Heat Shrinkable Cable Joints
Overview

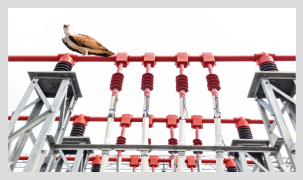

Bare busbars, conductors and connections risk birds, animals, vegetation and airborne debris bridging phase-to-phase or phase-to-earth clearances — causing outages, equipment damage and, in some cases, electrocuting the animal. Gala's pre-moulded protection covers, heat shrinkable tubes, tapes and sheets retrofit insulation onto that bare metalwork.
Creepage extenders seal to porcelain or glass insulators, adding creepage distance and reducing electric stress by driving leakage current around the extender's skirt edge.
Read the full overview

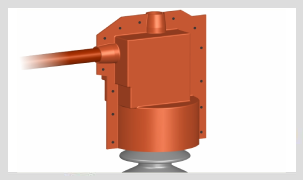

GPFIC bus/bushing connection covers are UV-stable, field-trimmable at the entry/exit holes, and reusable for later maintenance — sized for busbar connections, standoff insulators, capacitors and transformer bushings.
Overhead line covers and tubes field-install over bare conductors for phase-to-phase and phase-to-ground protection from bird and animal contact: UV-resistant polyolefin covers and tubes, GSIOC non-tracking silicone interlocking covers to 33 kV, and GSOC self-locking silicone covers for insulation enhancement to 765 kV.

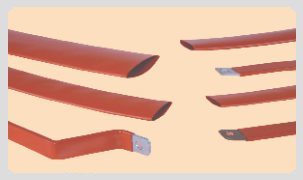

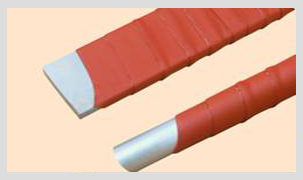

The heat shrink busbar sleeve, in cross-linked polyolefin, insulates busbar systems up to 36 kV, reduces air clearance and guards against accidental flashover — to ANSI C37.20.2 for MV switchgear application up to 36 kV; a separate extra-heavy-wall series (GEHB) extends that to 66 kV. Heat Shrink Tape insulates busbar connections where tubing cannot be used.

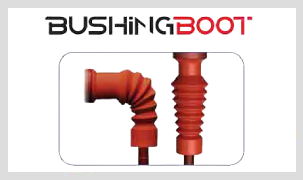

Bushing Boots are non-tracking elastomeric boots that fit over switchgear bushings, insulating right-angled or straight connections up to 24 kV and guarding against flashover or surges in switchgear and transformer boxes.

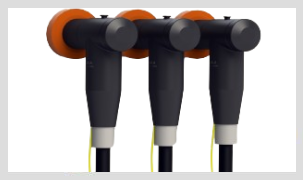

Screened Separable Connectors connect single and three-core polymeric cable to MV switchgear, transformers and RMUs via type "C" bushings, specified for 630 A up to 36 kV. Built from highly modified EPDM rubber with a touch-proof, earthed outer screen.

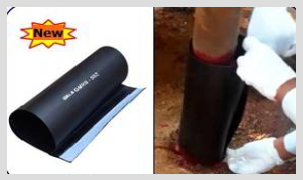

Heat Shrink Pole Protection Sleeve, in cross-linked polyolefin, seals a wooden pole's ground-line area against decay for long-term pole maintenance.
Applications Served
- Overhead distribution line protection from bird/animal contact
- Busbar and bushing flashover protection inside switchgear
- Wooden pole ground-line decay protection
What Gala Offers
- Pre-moulded protection covers, heat shrinkable tubes, tapes and sheets as a retrofit solution
- Creepage extenders seal to porcelain or glass insulators to drive leakage current around the skirt edge
- UV-stable reusable bus/bushing connection insulating covers (GPFIC)
- UV-resistant polyolefin and non-tracking silicone overhead line covers/tubes (GSIOC to 33 kV, GSOC to 765 kV)
- Heat shrink busbar sleeve up to 36 kV (66 kV in the extra-heavy-wall GEHB series), meets ANSI C37.20.2
- Non-tracking elastomeric bushing boots for right-angle/straight bushing connections up to 24 kV
- Screened separable connectors for type "C" bushings, 630 A up to 36 kV
