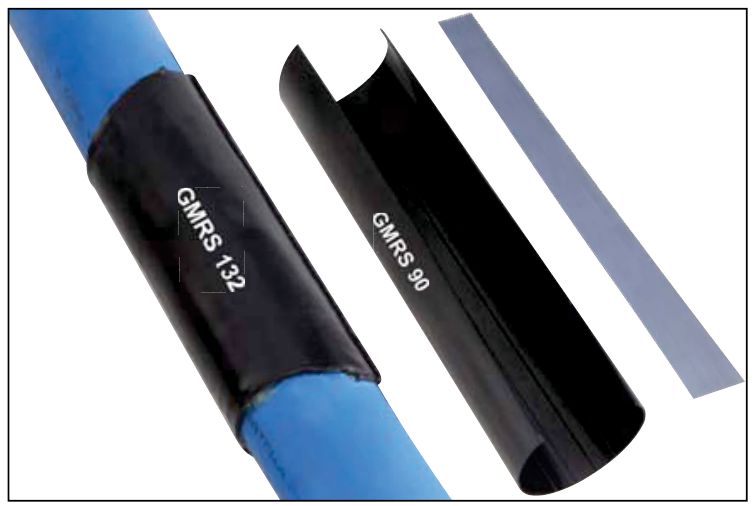

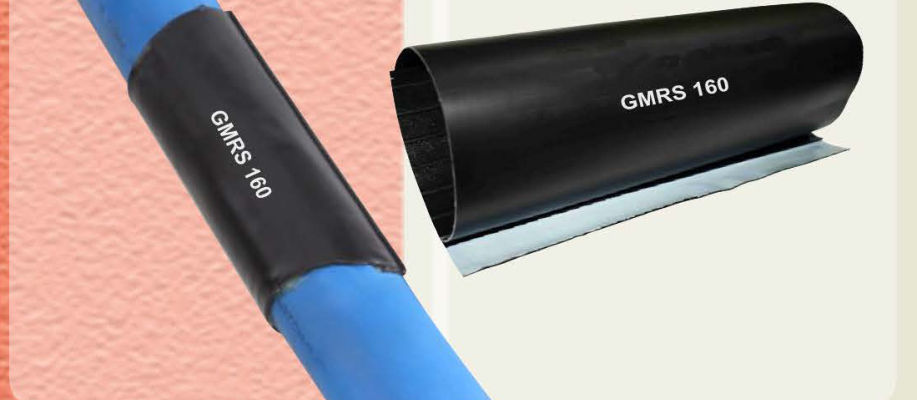

Heat Shrink Cable Repair Sleeve
An adhesive-lined, wraparound heat shrink sleeve in cross-linked polyolefin that repairs a cable jacket without disconnecting the cable, sealing to IP68.
- Hot melt adhesive seals to IP68
- ASTM D638
- ASTM D570
- ASTM D2671
Choose a size
Selection Chart
| Gala code | Cable OD | Length | Overlap length |
|---|---|---|---|
| GMRS-19 | 5 - 10 | 100/200/300 | ≥25 |
| GMRS-30 | 8 - 17 | 100/200/300 | ≥25 |
| GMRS-40 | 12 - 28 | 100/200/300 | ≥25 |
| GMRS-70 | 24 - 55 | 100/200/300 | ≥25 |
| GMRS-115 | 40 - 85 | 100/200/300 | ≥50 |
| GMRS-160 | 55 - 122 | 300/400 | ≥50 |
| GMRS-180 | 60 - 132 | 300/400 | ≥75 |
| GMRS-200 | 65 - 150 | 300/400 | ≥75 |
| GMRS-250 | 75 - 192 | 300/400 | ≥75 |
Custom dimensions available on request. Source: GALA INSULSLEEVE Heat Shrink Wrap Around Sleeve / Cable Repair Sleeve sheet, Issue 2, July 2025.

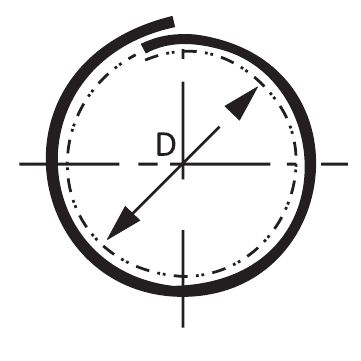

Dimensions & Drawings
This sleeve installs over a damaged section of jacket or a connector without cutting the cable, giving mechanical protection and electrical insulation in one repair.
Covered on this page
- Cable Repair Products
- Cable Repair Sleeves
- Applications:
Features & Benefits
- Permanent waterproof barrier and environmental seal
- 3:1 shrink ratio
- Flame retardant and self-extinguishing
- Resists chemicals, copper corrosion and fungus
- No system shutdown required for repair
- Hot melt adhesive seals to IP68
- Custom dimensions available on request
- Operating temperature -55°C to +125°C on the outer wall (IEC 216)
- Dielectric strength above 15 kV/mm (ASTM D2671) and dielectric constant 3.0 max (ASTM D150)
- Tensile strength 12 N/mm² min and elongation 300% min (ASTM D638); specific gravity 1.4 (ASTM D792)
- Heat shock 250°C for 4 hours — no dripping, cracking or flowing; fungus resistance inert (MIL-I-7444)
- Selection chart GMRS-19 to GMRS-250 for 5 to 192mm cable OD, 100 to 400mm lengths
Applications
- Repair of damaged cable jackets
- Retrofit protection of connections
- Confined-space and underground repair of frayed cables/connectors
- Cable/conduit transitions and cable, wire and rope bundles
- Communication, electrical, utility, industrial, shipboard, offshore and marine cable
Standards & Compliance
- ASTM D638
- ASTM D570
- ASTM D2671
- ASTM D792
- ASTM D150
- IEC 216
- MIL-I-7444
FAQs
Frequently Asked Questions
What is the Heat Shrink Cable Repair Sleeve used for?
It is used for:
- Repair of damaged cable jackets
- Retrofit protection of connections
- Confined-space and underground repair of frayed cables/connectors
- Cable/conduit transitions and cable, wire and rope bundles
- Communication, electrical, utility, industrial, shipboard, offshore and marine cable
How do I choose the right size?
Measure the outside diameter of the cable and choose the code whose "Cable OD" covers it. For example, GMRS-115 fits a cable of 40–85 mm. Where two ranges overlap, either code fits.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Which standards and test methods are quoted for it?
These:
- ASTM D638
- ASTM D570
- ASTM D2671
- ASTM D792
- ASTM D150
- IEC 216
- MIL-I-7444
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
