Heat Shrinkable Cable Joint Kit GPS/1112 — 11 kV PILC
GPS/1112 series heat shrinkable, waterproof straight-through joint kit for 3-core paper insulated lead covered (PILC) cable rated 11 kV (Umax 12 kV).
Choose a size
Selection Charts
| Cable size(sq. mm) | Kit code |
|---|---|
| 16-35 | GPS-11 |
| 50-95 | GPS-12 |
| 120-185 | GPS-13 |
| 240-400 | GPS-14 |
| 500-630 | GPS-15 |
All kits are supplied with full kit contents for making a straight through joint. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPS/1112-Series page.

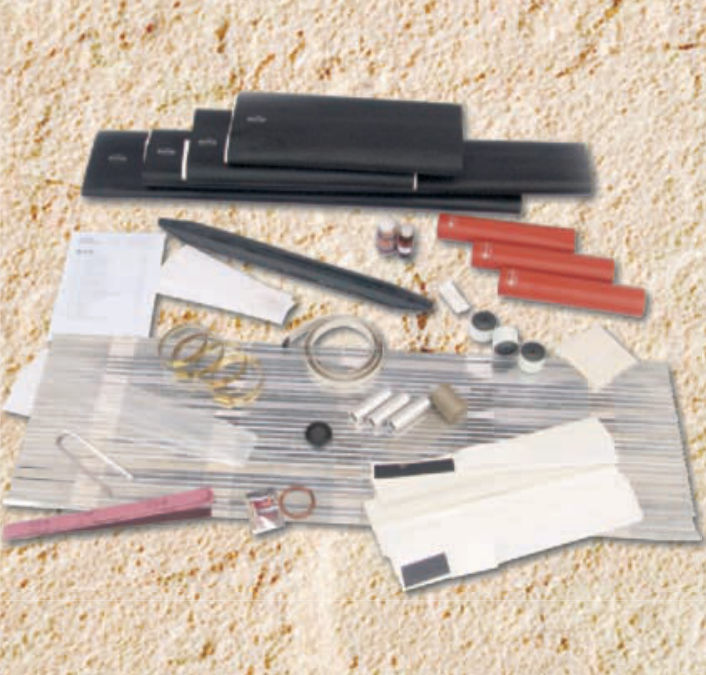

GPS/1112 — kit contents
| No. | Description |
|---|---|
| 1. | Heat Shrinkable Adhesive Lined Outer Jacketing |
| 2. | G. I. Wire Mesh |
| 3. | Armour/Lead Sheath Earthing Matl. (Copper Braid + Plumbing Metal + Flux + Copper Binding Wire) |
| 4. | Polymeric Core Separator |
| 5. | Copper Woven Flexible Mesh Tape |
| 6. | Glass Cushion Tape |
| 7. | Heat Shrinkable Oil Barrier Sleeve |
| 8. | Heat Shrinkable Insulating Tubing |
| 9. | Heat Shrinkable Internal Protection Sleeve |
| 10. | Insulation Built Up Mastic |
| 11. | Inline Connector (Crimping Type) Ferrule Cu/Al |
| 12. | Oil Barrier Sleeves |
| 13. | Insulating Wedge |
| 14. | Mastic Sealing Tape |
| 15. | Cleaning Solvent * |
| 16. | Mopping Cloth * |
| 17. | PVC - Na - Tape * |
| 18. | Silicon Grease * |
| 19. | Emery Sheet * |
* Installation aids, part of the standard kit. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPS/1112-Series page.

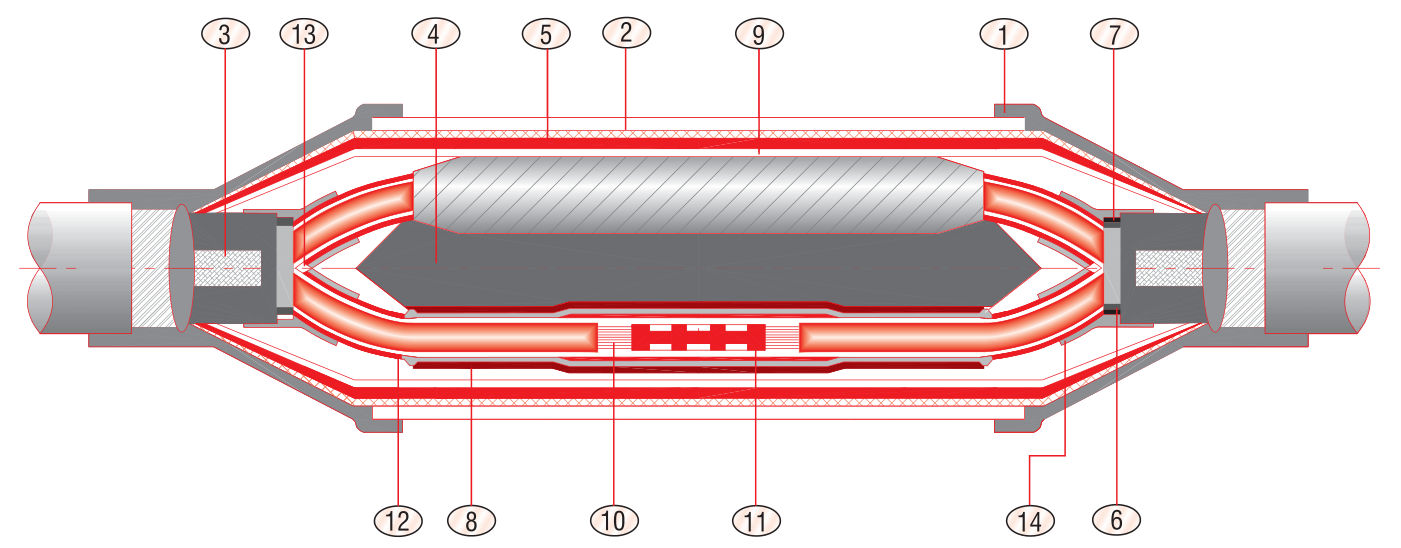

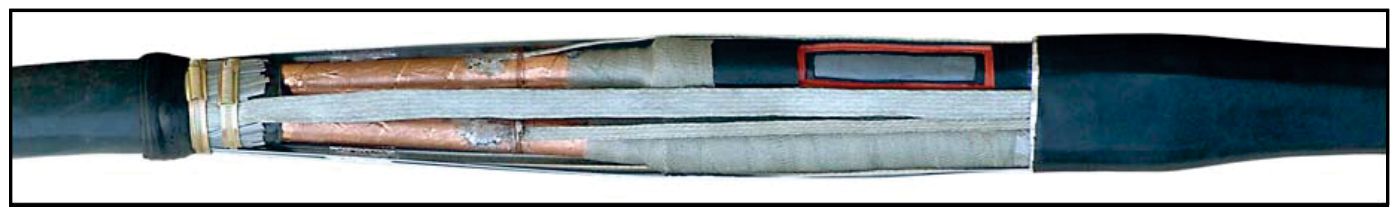

Dimensions & Drawings
GPS/1112 splices PILC cable at 11 kV — the entry point of Gala's GPS paper-insulated joint range, which continues at 24/36 kV as GPS/2436.
Covered on this page
- Cable Joints - GPS/1112 - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for 11kv 3 Core PILC Cables (UMAX - 12kv)
Features & Benefits
- Heat shrinkable, adhesive-lined outer jacketing
- Inline connector (crimping type), copper or aluminium ferrule
- GI wire mesh and armour/lead-sheath earthing material
- Oil barrier sleeves, insulating wedge and polymeric core separator
- Mastic sealing tape and copper woven flexible mesh tape
- Complete installation kit: cleaning solvent, glass cushion tape, mopping cloth, silicone grease, emery sheet
- Electrical performance: AC withstand 35 kV / 1 minute, DC withstand 48 kV / 30 minutes, lightning impulse withstand 75 kV required and 95 kV typical
- Kit codes GPS-11 to GPS-15 for 16 to 630 sq mm cable; every kit supplied with full contents for one straight-through joint
Applications
- Straight-through jointing of 3-core, 11 kV PILC cable
- Waterproof splicing of paper-insulated lead-covered power cable
FAQs
Frequently Asked Questions
What is the Heat Shrinkable Cable Joint Kit GPS/1112 used for?
It is used for:
- Straight-through jointing of 3-core, 11 kV PILC cable
- Waterproof splicing of paper-insulated lead-covered power cable
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 120-185 sq mm cable takes kit GPS-13.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
