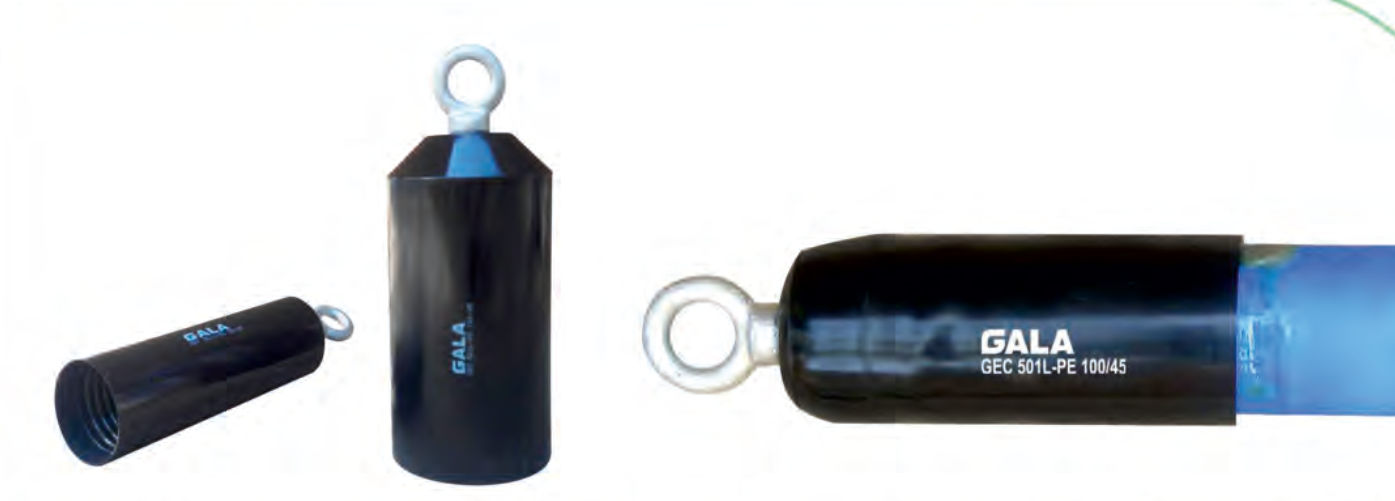

Heat Shrink End Cap with Cable Pulling Eye
Heat Shrink End Caps with Cable Pulling Eye, for telephone and power cable, form a pulling connection as strong as the cable itself while sealing the end against water and moisture.
- ASTM D638
- ASTM D792
- ASTM D2240
Choose a size
Selection Chart
- Ds (min.)
- Minimum internal diameter as supplied
- Df (max.)
- Maximum internal diameter after free recovery
- Ls (min.)
- Minimum length as supplied
- Tf
- Wall thickness after recovery (±10%)
- Pulling strength
- Minimum pulling force the eye withstands
- Cable range
- Cable outside diameter the cap fits
| Code No. | Ds(Min.) | Df(Max.) | Ls(Min.) | Tf(±10%) | Pulling Strength(Min.) | Cable Range |
|---|---|---|---|---|---|---|
| GEC 301L-PE | 55 | 25 | 170 | 3.5 | 1400 N | 28 - 38 |
| GEC 401L-PE | 75 | 35 | 180 | 4.0 | 2400 N | 38 - 52 |
| GEC 501L-PE | 100 | 45 | 200 | 4.0 | 2900 N | 50 - 70 |
| GEC 601L-PE | 130 | 65 | 300 | 4.6 | 3900 N | 65 - 91 |
| GEC 701L-PE | 160 | 65 | 300 | 4.5 | 4400 N | 80 - 112 |
D: internal diameter; s: as supplied; f: after free recovery. Source: GALA End Cap with Cable Pulling Eye sheet, Issue 2, January 2024.
Material properties
Technical Specification
| Properties | Value | Standard |
|---|---|---|
| Physical | ||
| Tensile Strength | 15 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 400 % (min) | ASTM D638 |
| Density | 0.96± 0.1 gm/cm³ | ASTM D792 |
| Hardness | 55 ±10 Shore D | ASTM D2240 |
| Water absorption | 0.2 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (120 °C for 500 hrs) | ASTM D2671 |
| Tensile Strength | 13 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 350 % (min.) | ASTM D638 |
| Low Temperature Flexibility (-40 °C for 4 hrs.) | No Cracking | ASTM D2671 |
| Heat Shock (250 °C for 30 min.) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125 °C | IEC 216 |
| Continuous Temperature Limit | -40 to +100 °C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 12 KV/mm.(min) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm (min) | ASTM D257 |
| Dielectric constant | 5 (max.) | ASTM D150 |
Source: GALA End Cap with Cable Pulling Eye sheet, Issue 2, January 2024.

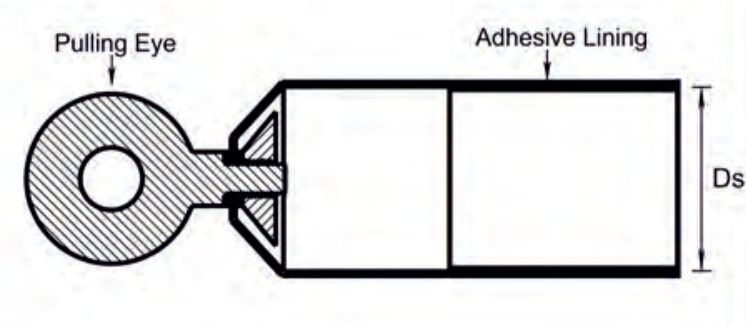

Dimensions & Drawings
The full cable — jacket and conductor — is used to form the pull, which reduces the risk of cable deformation during pulling. Properly installed, the cap is virtually impossible to pull off and seals against water and moisture ingress.
Typically factory installed; can also be field installed with a propane (preferred) or butane gas torch.
Covered on this page
- End Cap with Cable Pulling Eye
Features & Benefits
- Minimum pulling force 13 N/mm² (GEC 301L-PE to GEC 701L-PE: 150-450 kg)
- Dual function: seals the cable end and forms the pulling connection in one component
- No special tools or crimpers required
- Reduces risk of cable deformation during pulling
- GEC 301L-PE to GEC 701L-PE covers cable range 28-112 mm
- Field installable with a propane or butane gas torch
- Dielectric strength 12 kV/mm min., volume resistivity 1×10¹⁴ Ohm.cm min. (ASTM D149, ASTM D257)
- Continuous temperature limit -40°C to +100°C (IEC 216)
Applications
- Cable pulling for power and telephone cable installation
- Sealing the cable end against water and moisture during and after pulling
Standards & Compliance
- ASTM D638
- ASTM D792
- ASTM D2240
- ASTM D570
- ASTM D2671
- ESI 09-11
- IEC 216
- ASTM D149
- ASTM D257
- ASTM D150
FAQs
Frequently Asked Questions
What is the Heat Shrink End Cap with Cable Pulling Eye used for?
It is used for:
- Cable pulling for power and telephone cable installation
- Sealing the cable end against water and moisture during and after pulling
How do I choose the right size?
Measure the outside diameter of the cable and choose the code whose "Cable Range" covers it. For example, GEC 501L-PE fits a cable of 50–70 mm. Where two ranges overlap, either code fits.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. Start at one end and work steadily along to the other.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D638
- ASTM D792
- ASTM D2240
- ASTM D570
- ASTM D2671
- ESI 09-11
- IEC 216
- ASTM D149
- ASTM D257
- ASTM D150
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
