MV Cable Joints — Cable Splicing Kit
GXLT/GPLT series heat shrinkable, waterproof straight-through joint kit for 1, 2, 3 or 4-core extruded (XLPE/PVC) and paper-insulated MV cable, armoured or unarmoured, rated 1.1 kV and 3.3 kV.
- IEC 60502
- IEC 60060
- IEC 60230
Choose a size
Selection Charts
| Cable size(sq. mm) | Kit code, 1.1 kV | Kit code, 3.3 kV |
|---|---|---|
| 4x1.5-6 | GXLT-1 | GXLT-11 |
| 4x10-16 | GXLT-2 | GXLT-12 |
| 4x25-50 | GXLT-3 | GXLT-13 |
| 4x70-150 | GXLT-4 | GXLT-14 |
| 4x185-240 | GXLT-5 | GXLT-15 |
| 4x300-400 | GXLT-6 | GXLT-16 |
All kits are supplied with full kit contents for making a joint. Galvanised mesh application is an alternative design replacing the wraparound joint case. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXLT/GPLT-Series page.

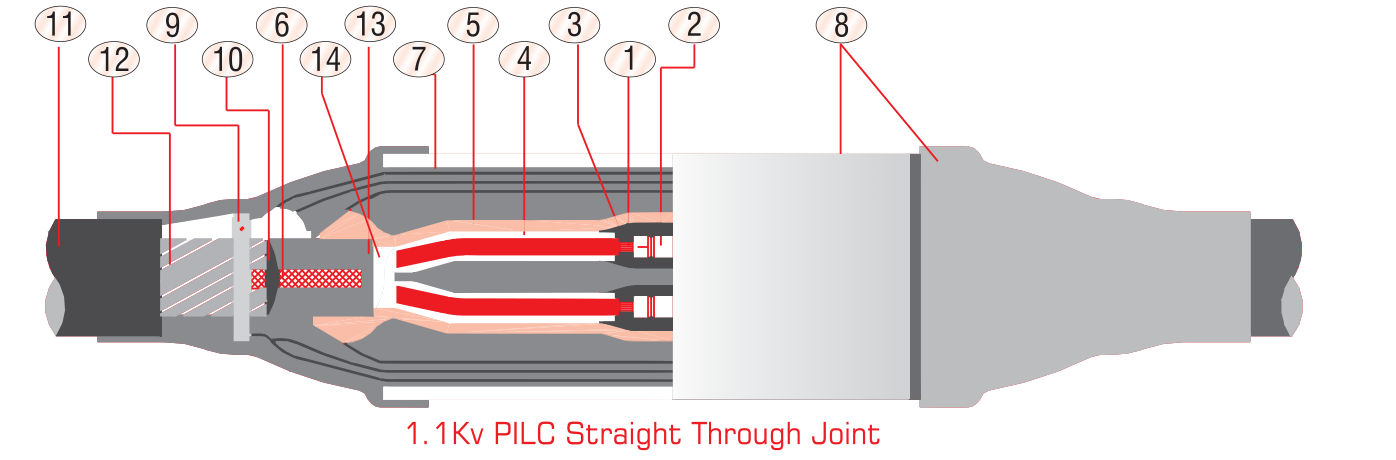

GXLT/GPLT — components of the 1.1 kV XLPE/PVC and PILC joints (numbers as on the drawings)
| No. | XLPE/PVC joint | PILC joint |
|---|---|---|
| 1. | Conductor (Aluminium/copper) | Conductor (Aluminium/copper) |
| 2. | Inline Connector (Ferrule) | Inline Connector (Ferrule) |
| 3. | Insulation Sleeve | Insulation Sleeve |
| 4. | Armour Continuity Connection | Oil Barrier Tubing |
| 5. | Worm Drive Clamps | Inner Protective Tubing |
| 6. | Cable Insulated Core | Armour/Lead Sheath Continuity System |
| 7. | Wraparound Joint Case | Wraparound Joint Case |
| 8. | Outer Sheath | Outer Jacketing Sleeve |
| 9. | Cable Armour | Cable Armour |
| 10. | Inner sheath | Plumb |
| 11. | Outer Jacketing Sleeves | Outer Sheath |
| 12. | — | Armour |
| 13. | — | Lead Sheath |
| 14. | — | Paper Inner Sheath |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXLT/GPLT-Series page.

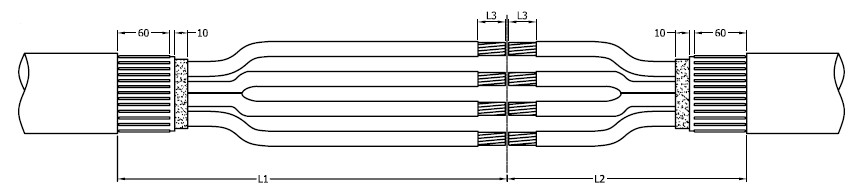

Dimensions & Drawings

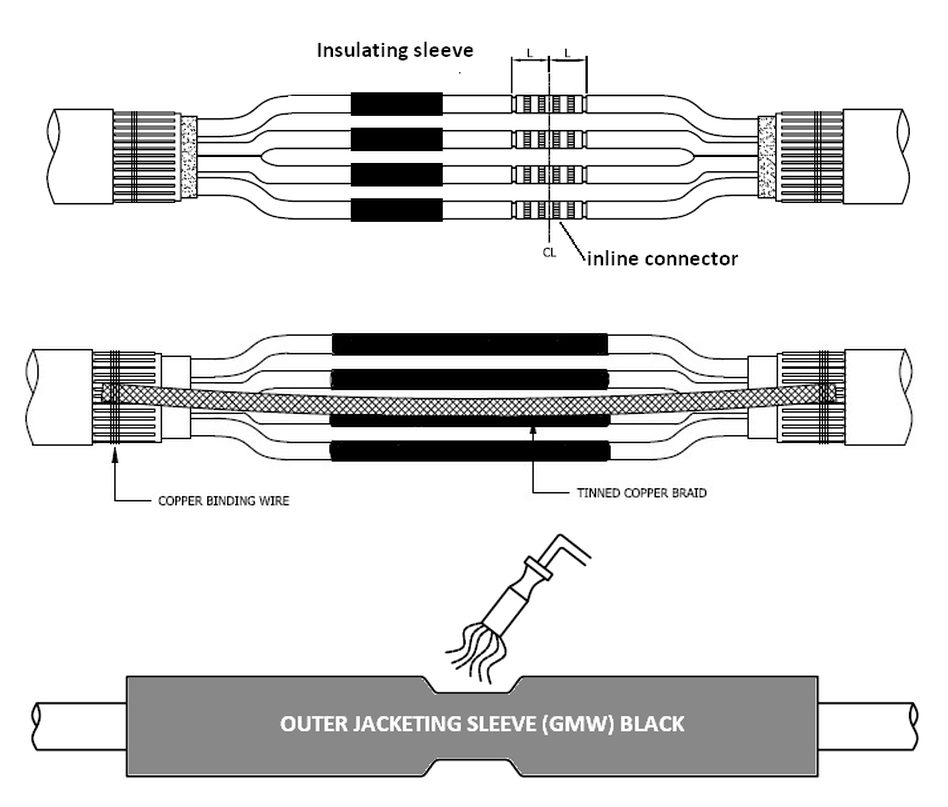

GXLT/GPLT splices two lengths of MV cable end to end, restoring conductor continuity, armour/lead-sheath continuity and outer sheath across the join.
Covered on this page
- MV Cable Joints - Cable Splicing Kit
Features & Benefits
- Kit includes conductor connector, armour/lead-sheath continuity system and outer sheath
- Wraparound joint case with insulation sleeve and outer jacketing sleeve
- Oil barrier tubing option for lead-sheathed cable
- Full kit contents supplied for making one complete joint
- Galvanised mesh application available as an alternative to the wraparound joint case
- Guaranteed technical particulars in compliance with IEC 60502, IEC 60060 and IEC 60230
- Type tested at 1.1 kV and 3.3 kV: AC high voltage joint immersed in water 3.5 kV / 6 kV for 5 minutes, impulse withstand 8 kV / 12 kV, DC high voltage (dry) 15 kV / 21 kV for 5 minutes
- 63-cycle heating test in water (5 hours heating, 3 hours cooling) at 95°C conductor temperature — no breakdown or flashover
- Kit codes GXLT-1 to GXLT-5 and GXLT-11 to GXLT-15 for 4x1.5–6 up to 4x185–400 sq mm cable
Applications
- MV cable splicing for XLPE and PVC insulated cable
- Paper-insulated lead-covered MV cable splicing
Standards & Compliance
- IEC 60502
- IEC 60060
- IEC 60230
FAQs
Frequently Asked Questions
What is the MV Cable Joints used for?
It is used for:
- MV cable splicing for XLPE and PVC insulated cable
- Paper-insulated lead-covered MV cable splicing
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 4x70-150 sq mm cable takes GXLT-4 (1.1 kV) or GXLT-14 (3.3 kV).
Which standards and test methods are quoted for it?
These:
- IEC 60502
- IEC 60060
- IEC 60230
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
