Product line
Overhead line covers, pole protection sleeves and pole caps for outdoor conductor and pole insulation — polyolefin Insulcover and silicone GSOC constructions, plus a composite insulator and dock pile caps.
15 products in the Pole & Overhead Protection range — 13 with downloadable datasheets, 6 with dimensional spec tables.
The family covers overhead line and bus-connection covers — non-tracking cross-linked polyolefin (Insulcover) and non-tracking silicone rubber (GSOC self-locking and silicone interlocking) — pole protection sleeves for steel, concrete and wooden poles, pole caps, a vinyl pole cap for wooden dock piles, an electrical insulating boot/shroud, a polymeric standoff/support insulator, and the Polytek composite insulator.
Tested to ASTM D149, D638, D2671, D570, D257, D150 and D792.
Browse every Pole & Overhead Protection datasheet in the datasheet library →
Showing all 15 products
Dock Pile Cap is a heat-shrinkable cap that covers the top of a wooden dock pile to keep out water and moisture, increasing dock pile life, with a service life of more than 30 years from one torch-applied installation.
Insulshroud is a flexible insulating boot/shroud in specially formulated PVC, UL certified under File No. E335936, that prevents electrocution of birds and wildlife and the power outages it causes.
Datasheet

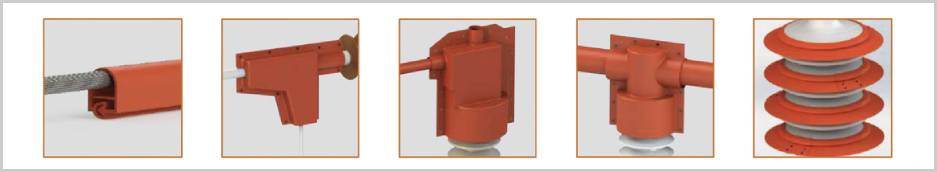

Insulcover overhead line covers, GSOC silicone line covers and GPFIC bus connection covers — a retrofit insulation system that prevents wildlife-caused flashovers on bare conductors and bus connections.
DatasheetSpec table
Insulcover is a wrap-around medium voltage line cover that retrofits insulation onto bare overhead conductors, preventing outages caused by tree branches or wildlife contact.
DatasheetSpec table
A shorter Insulation Enhancement Products overview covering Gala's Overhead Line Cover, Overhead Line Tube, Silicone Overhead Line Cover (GSOC) and reusable Bus Connection Insulating Covers (GPFIC).
Datasheet
Overhead Line Tube is a medium voltage line cover that insulates overhead conductors, helping prevent electrical outages caused by trees or wildlife coming into contact with distribution lines.
DatasheetSpec table
Pole Cap is a heat shrink cap that covers the top of a wooden power pole to protect it from water and moisture ingress, extending pole life.
Datasheet
A heat-shrinkable sleeve, used with epoxy paint, that seals the vulnerable ground-line section of street-lighting poles against corrosion and decay.
Datasheet

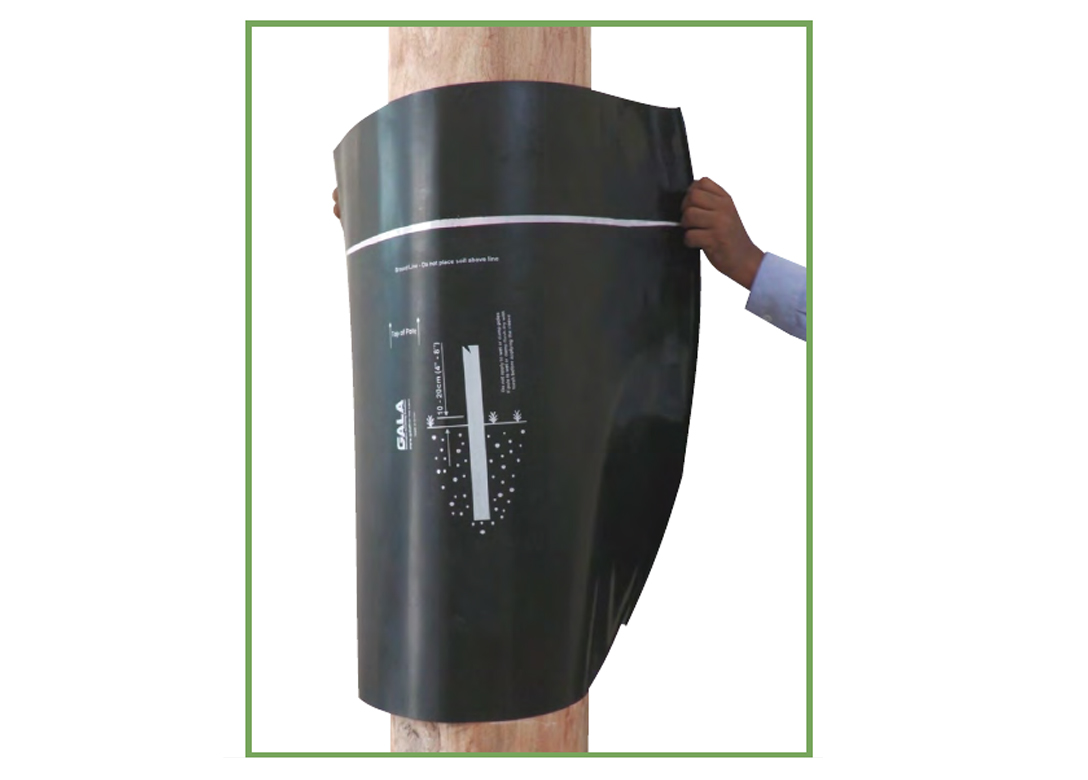

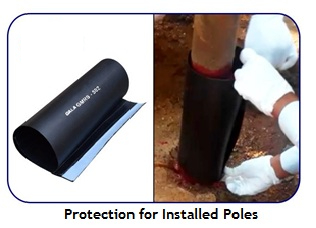

A heat-shrinkable sleeve with a bituminous liner that creates an airtight, watertight seal at a wooden pole's vulnerable ground-line section.
Datasheet
Polymeric Insulator (Support Insulator) consists of a fibreglass core covered with a weather-resistant polymeric shedded sleeve and aluminium end fittings, offering better performance in highly polluted environments, flame/arc resistance, chemical and UV resistance, and vandal-proof construction, in 11 kV and 25/33 kV ratings.
Datasheet
Insulcover is a wrap-around medium voltage line cover that retrofits insulation onto bare overhead conductors, preventing outages caused by tree branches or wildlife contact.
DatasheetSpec table
Polytek composite insulators pair a high-mechanical-strength fibreglass-reinforced rod and metal end fittings with a cross-linked polyolefin cladding material, replacing traditional glass or porcelain insulators for outdoor installations.
Gala Silicone Interlocking Overhead Line Covers are made from non-tracking silicone rubber, designed for field installation over bare conductors, insulating up to 33 kV.
DatasheetSpec table
A self-locking silicone cover that field-installs over bare overhead conductors, giving phase-to-phase and phase-to-ground insulation plus bird and animal protection across four voltage classes from 12 kV to 765 kV.
DatasheetSpec table
Polecap/Dock Pile Cap covers the top of a power pole or dock pile, preventing bird perching and protecting the top from rain and decay, made from specially formulated PVC.
Datasheet
No products match your search.
Send us your requirement — voltage class, cable size, environment — and we'll point you to the right part.
