Product line
Bushing boots, cable terminal protectors and end-sealing kits for RMU and GIS bushings, plus a screened separable connector — 630 A to 24 kV, extending to 630/1250 A at 36 kV.
11 products in the RMU & Bushing Components range — 11 with downloadable datasheets, 7 with dimensional spec tables.
The family covers bushing boots and bellows for switchgear, reusable insulating (rubber angled) boots, right-angle and straight boots, cable terminal protectors (including the GTPE-500 and GSTB/GRTB series), an insulation boot for circuit breakers, an end-sealing kit for extensible RMU/GIS bushings, and a screened separable connector.
The screened separable connector is offered in two variants: 630 A up to 24 kV, and 630/1250 A up to 36 kV in the extended range. Both mate with C-type bushings and plugs to EN 50180 and EN 50181, are tested in compliance with IEC 60502-4, and every connector is factory tested for AC withstand and partial discharge.
Tested to ANSI C37.20.2, ASTM D638, D2671, D149, D2240, D570, D257, D150 and IEC 216.
Browse every RMU & Bushing Components datasheet in the datasheet library →
Showing all 11 products
Bushing Boots are non-tracking elastomeric insulating boots used with terminations, fitting over switchgear bushings to insulate right-angle or straight bushing connections up to 25 kV; Bellows are flexible PVC components used for cable ducting in low-voltage switchgear and transformer industry.
Datasheet
Elastomeric boots that fit over switchgear bushings to insulate the cable-connector interface, available in a single-use bushing boot and a reusable insulating-boot design.
DatasheetSpec table
The Cable Terminal Protector is a re-usable insulating barrier system used with any indoor termination, providing phase-to-phase-to-earth insulation for power cable terminals in compact enclosures.
DatasheetSpec table
The GSTB/GRTB Cable Terminal Protector is an insulating barrier system used with any indoor termination, providing phase-to-phase-to-earth insulation for power cable terminals.
DatasheetSpec table
.png)
The GTPE-500 elbow terminal protector is used in cable entry boxes with any indoor termination, where phase-to-phase clearance is limited and there is a risk of air flash-over.
DatasheetSpec table
The End Sealing Kit for RMU extensible/GIS bushing seals and insulates the ends of bushings, protecting them from moisture ingress, manufactured from heat shrinkable material.
DatasheetSpec table
Heat shrink Right Angle Boots (GRB) and Straight Boots (GSB) insulate bushings in the cable termination box where phase clearance is tighter than normal air clearance.
Datasheet
Cross-linked polyolefin boots that insulate cable termination bushings against flashover where phase-to-phase and phase-to-earth clearances are reduced, in Right Angle (GRB) and Straight (GSB) profiles.
Datasheet
Insulation Boot for Circuit Breaker is an electrical insulation boot designed to insulate draw-out circuit breakers in MV/HV power plants and substations, installed or removed in minutes and manufactured from non-tracking cross-linked polyolefin material.
DatasheetSpec table

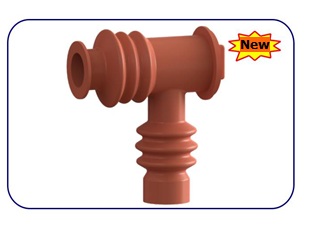

Reusable Insulating Boots are designed for use with all types of terminations and are suitable for PILC and XLPE cable, using a modified silicon/rubber shroud for flexibility.
Datasheet
Gala Screened Separable Connectors and touch-proof terminations connect single and three core polymeric cables to medium voltage switchgear and other equipment using type "C" bushings.
DatasheetSpec table
No products match your search.
Send us your requirement — voltage class, cable size, environment — and we'll point you to the right part.
