Termicover — Terminal Insulation Cover
Termicover is Gala's flexible-PVC insulating cover for straight or flat-type electrical terminals, GTIC series, moulded with tab-retaining recesses and a dust-excluding sleeve.

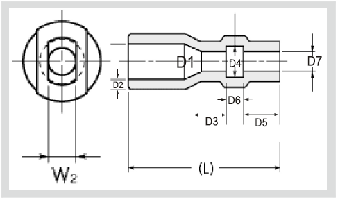

Technical drawings
Recesses on the tab shoulders keep the terminal firmly seated, and the sleeve keeps dust out of the cable end.
Terminal Insulation Cover - TERMICOVER
Key Features
- GTIC series (GTIC-1 to GTIC-3), custom sizes, shapes and colours available
- Dielectric strength 12 kV/mm (min., ASTM D149)
- Tensile strength 12 N/mm² (min.), elongation 350% (min.), ASTM D638
- Continuous operating temperature −20°C to 115°C (IEC 216)
- Self-extinguishing, ASTM D876
Applications
- Insulating straight or flat-type electrical terminals
- Keeping crimped tabs seated and dust out of the cable end
