Switchgear & Busduct Insulation Products
Busbar sleeves, boots and end caps that insulate live conductors and cut air clearance inside switchgear and busduct panels — the panel builder's route to a smaller, more compact enclosure.

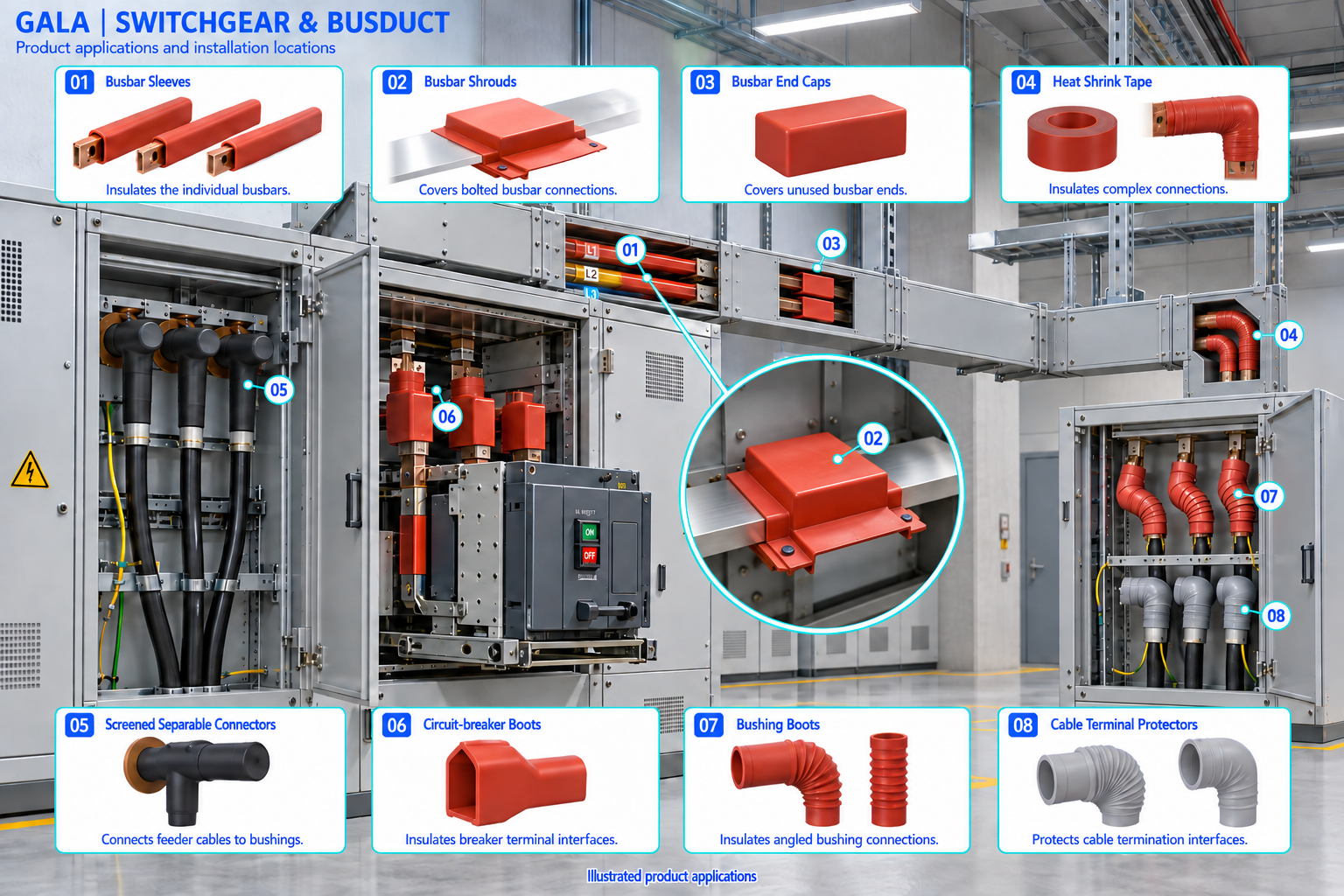

Products in this illustration (8)
- Busbar Sleeves
Insulates the individual busbars.
- Busbar Shrouds
Covers bolted busbar connections.
- Busbar End Caps
Covers unused busbar ends.
- Heat Shrink Tape
Insulates complex connections.
- Screened Separable Connectors
Connects feeder cables to bushings.
- Circuit-breaker Boots
Insulates breaker terminal interfaces.
- Bushing Boots
Insulates angled bushing connections.
- Cable Terminal Protectors
Protects cable termination interfaces.
Product range
Products for this industry (12)

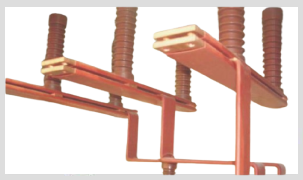

Heat Shrink Busbar Sleeves - for 66kV

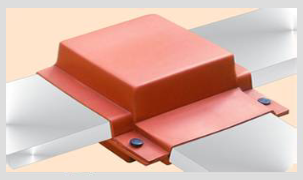

Busbar Insulating Boots/Shrouds - Polyolefin
Busbar Insulating Boots/Shrouds - PVC

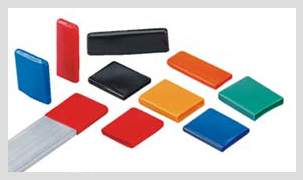

Busbar End Caps
Heat Shrink Tape

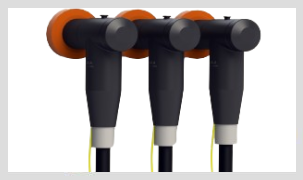

Screened Separable Connectors
Heat Shrinkable Cable Joints
Heat Shrinkable Cable Terminations

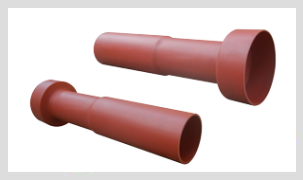

Insulation Boot for Circuit Breaker

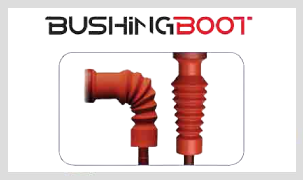

Bushing Boot

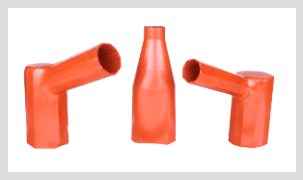

Heat Shrink Right Angle / Straight Boot Industry/Cable Terminal Protector(GTPE-500).png)

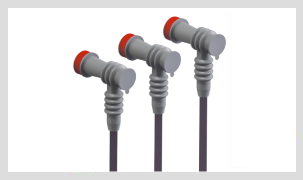

Cable Terminal Protector(GTPE-500)
Overview
Products and solutions for switchgear/busduct industries. The insulating portfolio reduces air clearance in switchgear by insulating busbars and gas vacuum bottles, so customers can design more compact and reliable equipment.
Heat Shrink Busbar Sleeve insulates busbar systems up to 36 kV and protects against accidental flashover while reducing air clearance; a separate extra-heavy-wall series (GEHB) extends that to 66 kV.
Read the full overview

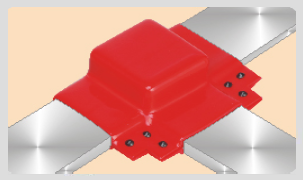

Polyolefin Busboot and PVC Busboot are flexible insulating boots/shrouds for busbar and switchgear connections up to 36 kV, installed, removed or replaced in a few minutes; the PVC Busboot is UL certified (File No. E335936) and tested to ANSI C37.20.2.

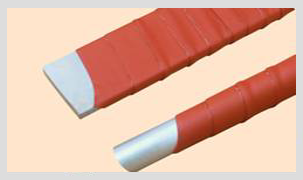

Busbar End Cap covers the end of a live busbar, in PVC formulated for high-voltage electrical application. Heat Shrink Tape insulates medium voltage busbar connections where tubing can't be used.
Screened Separable Connectors connect single- and three-core polymeric cable to switchgear, transformers and RMUs on type "C" bushings — 630A to 24 kV standard, 630/1250A to 36 kV in the extended range — in EPDM rubber with a touch-proof outer screen connected to earth.
Heat Shrink Joints and CLASS 1 Terminations complete the cable up to 66 kV Class. Insulation Boot for Circuit Breaker insulates draw-out circuit breakers in MV/HV power plants and substations. Bushing Boot insulates the cable termination to the bushing up to 24 kV, and Angleboot insulates termination-box bushings where phase-to-phase and phase-to-earth clearance is less than normal air clearance. Terminal Protector Kit shrouds exposed live parts on RMU, switchgear panel and transformer terminal bushings.
Applications Served
- Switchgear panel busbar air-clearance reduction for a smaller enclosure
- Busduct connection insulation up to 66 kV
- Draw-out circuit breaker insulation in MV/HV substations
What Gala Offers
- Heat shrink busbar sleeve up to 36 kV (66 kV in the extra-heavy-wall GEHB series)
- Polyolefin and PVC busbar boots/shrouds up to 36 kV, installed or replaced in minutes; PVC variant UL certified (File No. E335936), tested to ANSI C37.20.2
- Busbar end cap in PVC for live busbar ends
- Insulation boot for draw-out circuit breakers in MV/HV power plants and substations
- Bushing boot for cable-to-bushing insulation up to 24 kV
- Terminal protector kit for RMUs, switchgear panels and transformers
