Heat Shrink Cable Joint Kit GXSS-1236 — Single Core, up to 36 kV
GXSS/1236 series heat shrinkable, waterproof straight-through joint kit for single-core extruded dielectric, shielded, armoured or unarmoured cable, spanning 12 kV, 15–24 kV and 36 kV usage.
Choose a size
Selection Charts
| System | Cable size(sq. mm) | Kit code |
|---|---|---|
| 12 kV | 16 - 50 | GXSS-11 |
| 12 kV | 70 - 120 | GXSS-12 |
| 12 kV | 150 - 300 | GXSS-13 |
| 12 kV | 400 - 630 | GXSS-14 |
| 12 kV | 800 - 1000 | GXSS-15 |
| 15–24 kV | 16 - 50 | GXSS-21 |
| 15–24 kV | 70 - 150 | GXSS-22 |
| 15–24 kV | 185 - 300 | GXSS-23 |
| 15–24 kV | 400 - 600 | GXSS-24 |
| 15–24 kV | 800 - 1000 | GXSS-25 |
| 36 kV | 25 - 50 | GXSS-31 |
| 36 kV | 70 - 185 | GXSS-32 |
| 36 kV | 240 - 500 | GXSS-33 |
| 36 kV | 630 - 800 | GXSS-34 |
| 36 kV | 1000 | GXSS-35 |
12 kV system: 6.6/6.6 kV, 6.35/11 kV. 15–24 kV system: 8.7/15 kV, 11/11 kV, 12.7/22 kV. 36 kV system: 19/33 kV. All kits are supplied with full kit content for making a straight through joint. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXSS-1236-Series page.
GXSS-1236 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | Inline Connection Ferrule | 1 No. |
| 2. | Heat Shrinkable Stress Control Mastic for Ferrule Region | 2 Nos. |
| — 12 kV | 2 Nos. | |
| — 24 kV | — | |
| — 36 kV | 4 Nos. | |
| 3. | Heat Shrinkable Stress Control Tubing | 1 Nos. |
| 4. | H. S. Insulating Tubing — 12 kV | 1 No. |
| H. S. Insulating Tubing — 24 kV | 1 No. | |
| H. S. Insulating Tubing — 36 kV | 2 Nos. | |
| 5. | H.S. Dual Wall Tubing | 1 No. |
| 6. | Stress Control Mastic | 2 Nos. |
| 7. | Copper Woven Flexible Mesh Tape | 1 Roll |
| 8. | G. I. Mesh | 1 Roll |
| 9. | Red Insulating Mastic Tape — 12 kV | 1 Nos. |
| Red Insulating Mastic Tape — 24 kV | 2 Nos. | |
| Red Insulating Mastic Tape — 36 kV | 2 Nos. | |
| 11. | Spring Clamp / Solder Flux | 2 Nos. / 1 Set |
| 12. | H. S. Outer Jacketing Sleeve | 1 No. |

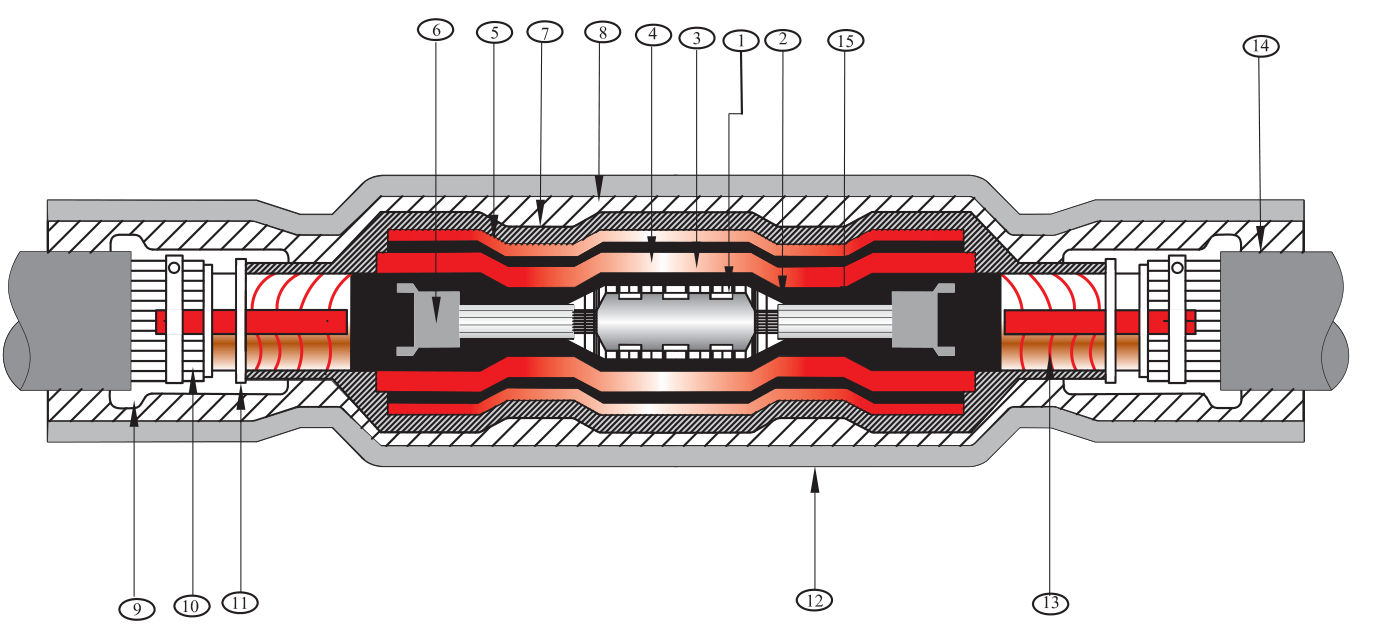

| Cable components (numbers on the drawing) | ||
| 10. | Armour | |
| 13. | Copper Screen | |
| 14. | Outer Sheath | |
| 15. | XPLE Insulation | |
| Installation aids & accessories (part of the standard kit) | ||
| • | Copper Binding Wire | 1 Roll. |
| • | Aloxite Emery Tape | 1 No. |
| • | Silicon Grease | 2 Nos. |
| • | Cleaning Tissue | 2 Nos. |
| • | Mopping Cloth | 1 No. |
| • | Installation Instruction Manual | 1 No. |
Quantities as printed; the sheet gives no quantity for item 2 at 24 kV. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXSS-1236-Series page.
Dimensions & Drawings
GXSS/1236 splices single-core shielded MV cable — the single-core counterpart to the GXS series, which covers 3-core constructions.
Features & Benefits
- Inline connection ferrule
- Stress control mastic for the ferrule region and stress control tubing
- Insulating tubing and dual wall tubing
- Copper woven flexible mesh tape, GI mesh, red insulating mastic tape
- AC dry withstand 35 kV / 50 kV / 75 kV for 1 minute at 12 kV / 15–24 kV / 36 kV system voltage
- DC withstand 48 kV / 96 kV / 144 kV for 30 minutes; lightning impulse withstand 75 kV / 125 kV / 170 kV
- Partial discharge at 12.7 kV, 25 kV and 38 kV
- Kit codes GXSS-11 to GXSS-35 covering 16 to 1000 sq mm cable across the three system voltages
Applications
- Straight-through jointing of single-core extruded-dielectric cable up to 36 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Cable Joint Kit GXSS-1236 used for?
It is used for:
- Straight-through jointing of single-core extruded-dielectric cable up to 36 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, on a 15–24 kV system, a 185 - 300 sq mm cable takes kit GXSS-23.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
