Cable Accessories for Dry & Oil-Type Transformers
Cable accessories for dry- and oil-filled transformer bushing connections — screened separable connectors, CLASS 1 terminations, busbar sleeves and a compact-enclosure terminal protector — backed by an in-house services team.

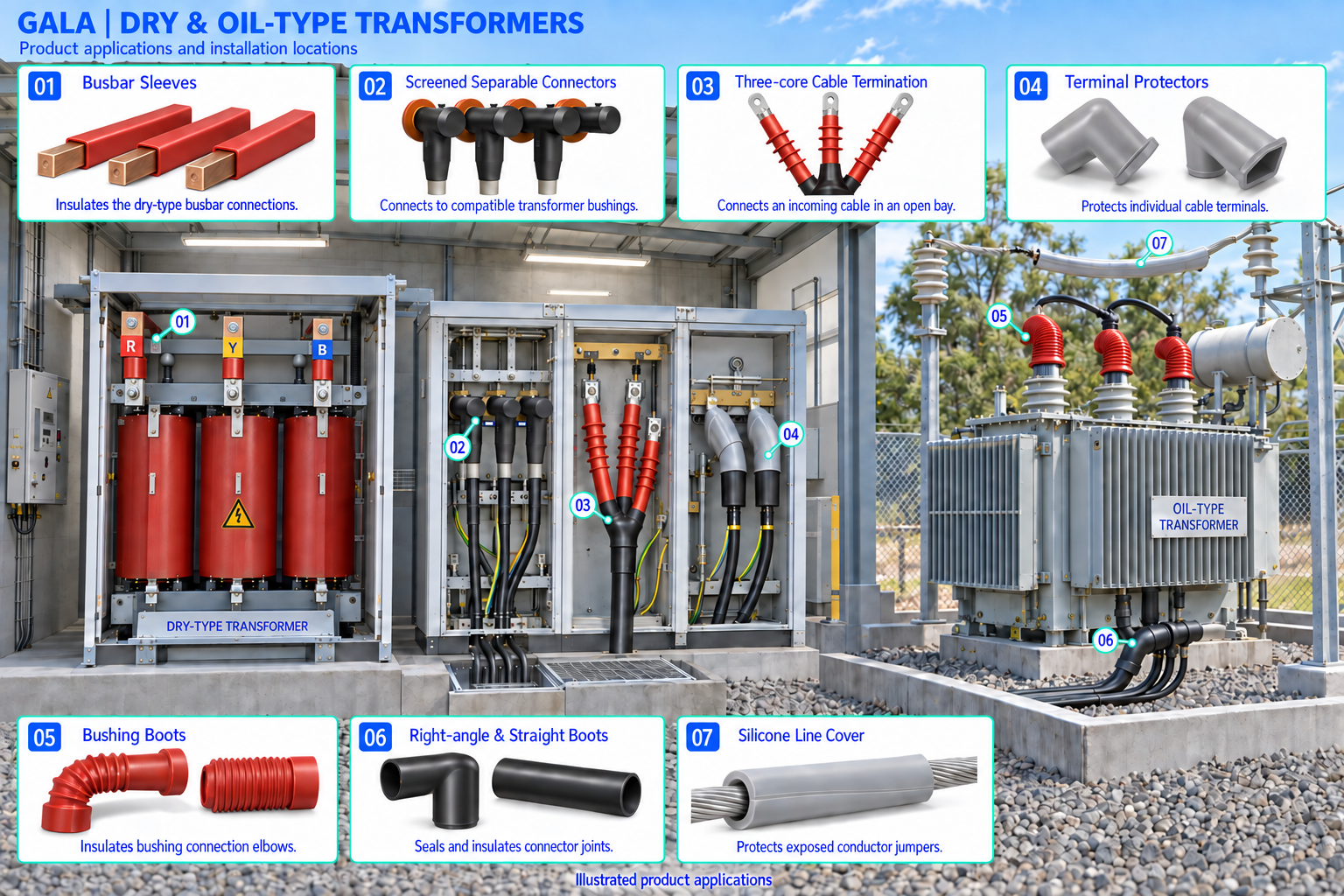

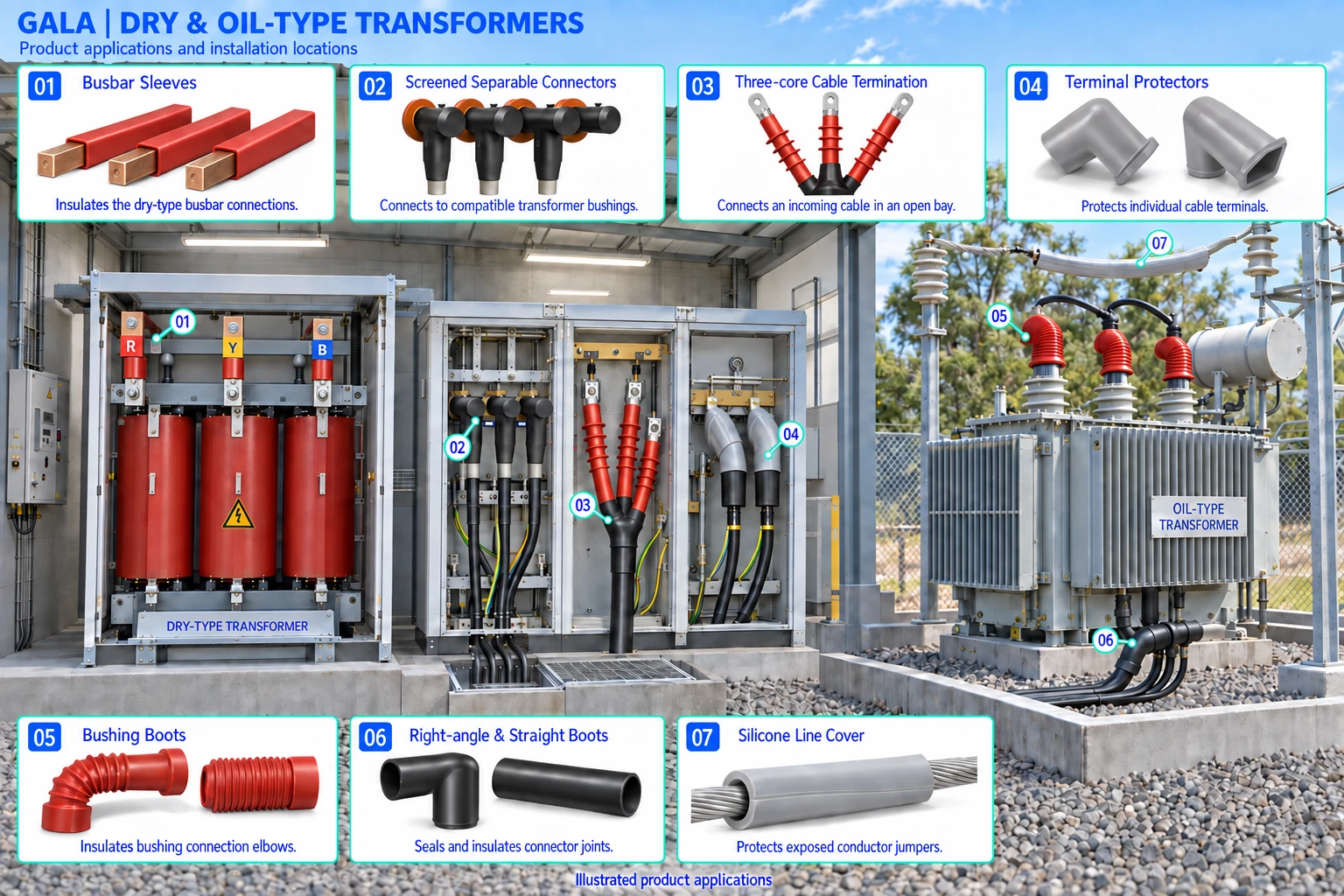

Products in this illustration (7)
- Busbar Sleeves
Insulates the dry-type busbar connections.
- Screened Separable Connectors
Connects to compatible transformer bushings.
- Three-core Cable Termination
Connects an incoming cable in an open bay.
- Terminal Protectors
Protects individual cable terminals.

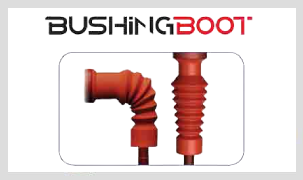

- Bushing Boots
Insulates bushing connection elbows.
- Right-angle & Straight Boots
Seals and insulates connector joints.
- Silicone Line Cover
Protects exposed conductor jumpers.
Product range
Products for this industry (11)

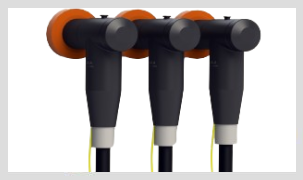

Screened Separable Connectors

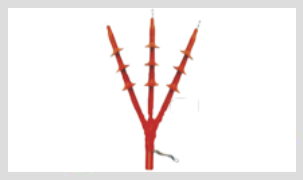

Heat Shrinkable Cable Terminations
Terminal Protector

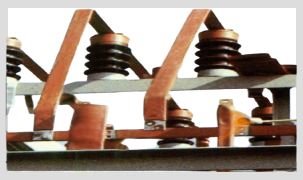

Heat Shrink Busbar Sleeves - for 66kV

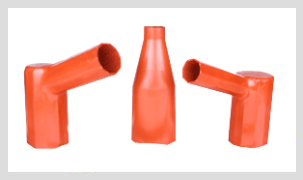

Heat Shrink Right Angle / Straight Boot
Bushing Boot

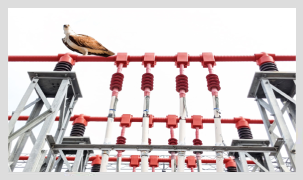

Wildlife and Asset Protection Products / Insulation Enhancement Products

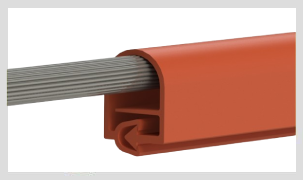

Overhead Line Cover - Polyolefin
Overhead Line Tube - Polyolefin
Overhead Line Cover - Silicone - Inter-locking- Overhead Line Cover - Silicone - Self-locking
Overview
Products for dry-type and oil-filled transformer connections, with an in-house services team providing end-to-end support rather than parts alone.
Screened Separable Connectors connect single- and three-core polymeric cable to the transformer's bushings — type "C", 630A to 24 kV standard and 630/1250A to 36 kV in the extended range — in EPDM rubber with a touch-proof earthed outer screen.
Read the full overview
CLASS 1 Terminations make the terminating length between the wire and its contact point tamper-proof against environmental factors for PVC/PILC/XLPE/EPR power cable up to 66 kV Class.
Terminal Protector gives phase-to-phase-to-earth insulation to cable terminals where the termination has to fit a compact enclosure — motor terminal boxes, RMUs and distribution transformers.
Angleboot (Heat Shrink Right Angle / Straight Boot) insulates the bushings in the cable termination box where the phase-to-phase and phase-to-earth clearance is less than normal air clearance, protecting against flashover from high humidity, rodent menace and surge impulse. Bushing Boot insulates and protects the cable termination to the bushing up to 24 kV against flashovers or surges induced in switchgear and transformer boxes.
Heat Shrink Busbar Sleeve insulates busbar systems, protects against accidental flash-over and reduces air clearance — up to 36 kV, with a separate extra-heavy-wall series (GEHB) to 66 kV. Wildlife and Asset Protection / Insulation Enhancement Products — pre-moulded covers, heat shrinkable tubes, tapes and sheets, plus polyolefin and silicone Overhead Line Covers and Tubes — retrofit onto the network to eliminate outages caused by birds and animals.
Applications Served
- Dry-type transformer bushing connections
- Oil-filled transformer bushing connections
- RMU and switchgear bushing connections sharing the same connector
- Motor terminal boxes and distribution transformers needing compact-enclosure insulation
What Gala Offers
- Screened separable connectors: 630A to 24 kV standard, 630/1250A to 36 kV extended range, EPDM rubber, touch-proof earthed screen
- Class 1 terminations for PVC/PILC/XLPE/EPR power cable up to 66 kV
- Terminal protector gives phase-to-phase-to-earth insulation in compact enclosures
- Bushing boot insulates the cable termination to the bushing up to 24 kV; angleboot insulates termination-box bushings where clearance is tight
- Heat shrink busbar sleeve up to 36 kV (66 kV in the extra-heavy-wall GEHB series)
- In-house services team providing end-to-end solutions
