Wind Energy Cable Accessories
Cable joints, busbar insulation and a corrosion-protection tube for onshore and offshore wind farm cable accessories and wind power anchor bolts.

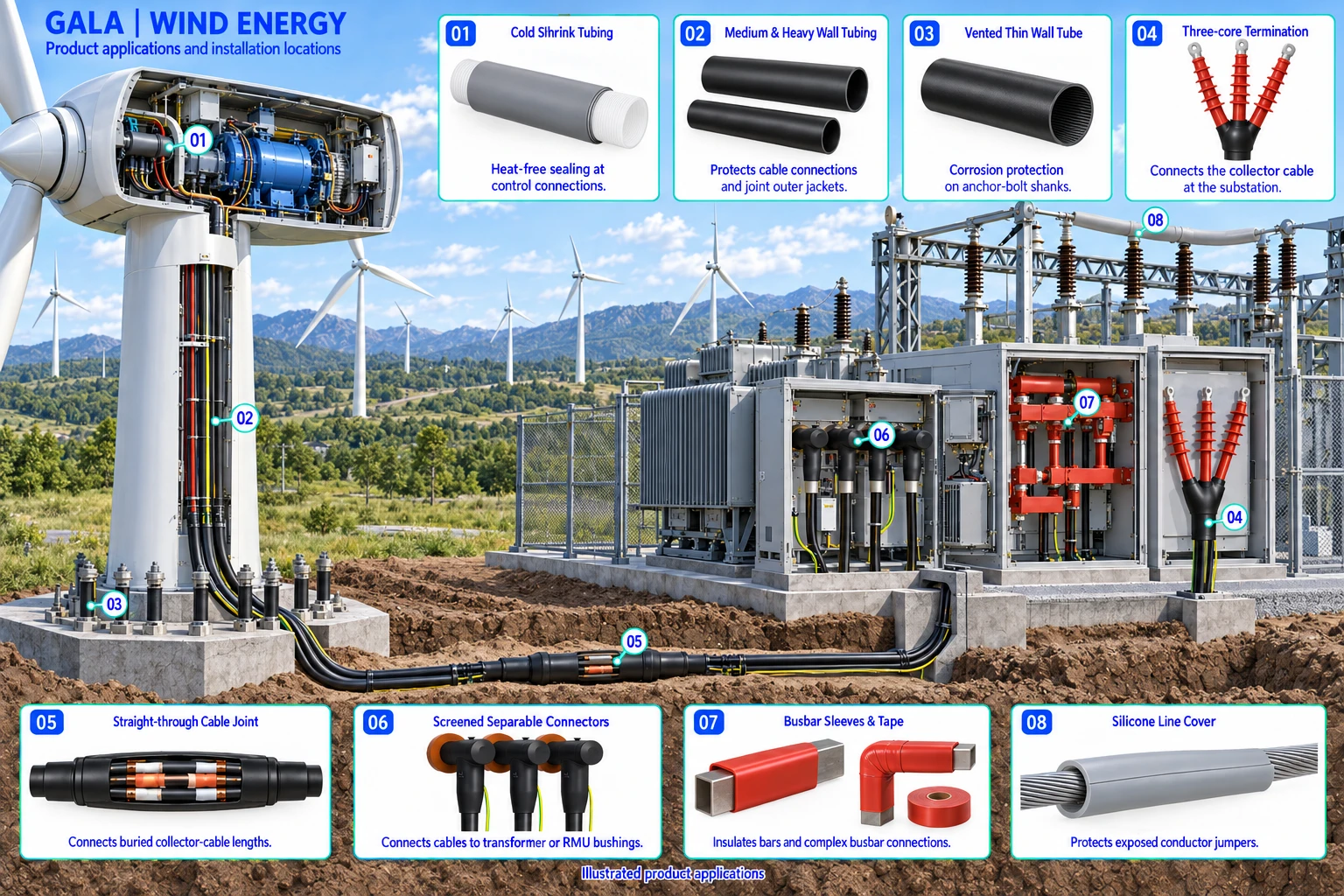

Products in this illustration (8)
- Cold Shrink Tubing
Heat-free sealing at control connections.
- Medium & Heavy Wall Tubing
Protects cable connections and joint outer jackets.
- Vented Thin Wall Tube
Corrosion protection on anchor-bolt shanks.
- Three-core Termination
Connects the collector cable at the substation.
- Straight-through Cable Joint
Connects buried collector-cable lengths.
- Screened Separable Connectors
Connects cables to transformer or RMU bushings.
- Busbar Sleeves & Tape
Insulates bars and complex busbar connections.
- Silicone Line Cover
Protects exposed conductor jumpers.
Product range
Products for this industry (15)

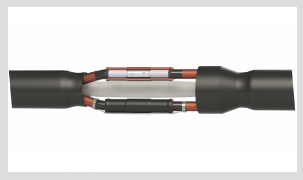

Heat Shrinkable Cable Joints
Heat Shrinkable Cable Terminations
Screened Separable Connectors
Heat Shrink Medium/Heavy Wall Tubes
Cold Shrink Tubing
Heat Shrink Busbar Sleeves - up to 66kV
Heat Shrink Tape
Heat Shrink Vented Thin Wall Tube

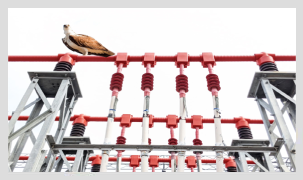

Wildlife and Asset Protection Products / Insulation Enhancement Products
High Voltage Wraparound Creepage Extenders

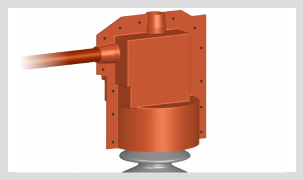

Bus/Bushing Connection Insulating Covers (Reusable)

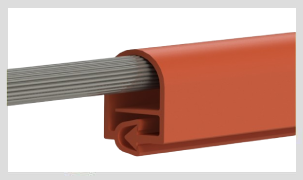

Overhead Line Cover - Polyolefin
Overview
Heat Shrink Joints for PVC/PILC/XLPE/EPR low and medium voltage power cable up to 66 kV Class, with design specification and quality upheld to the most stringent national and international standards.

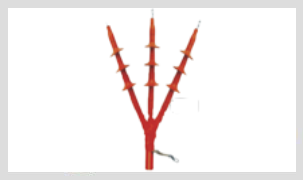

CLASS 1 Terminations make the terminating length between the wire and its contact point tamper-proof against environmental factors — the entire encapsulated length is protected.
Read the full overview

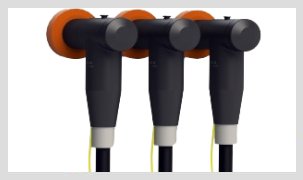

Screened Separable Connectors connect single- and three-core polymeric cable to switchgear, transformers and RMUs on type "C" bushings, 630A to 24 kV standard and 630/1250A to 36 kV in the extended range, in EPDM rubber with a touch-proof earthed outer screen.
GMW (medium wall) tube gives environmental protection to low voltage cable terminations and insulates connectors on splices up to 3.3 kV; GHW (heavy wall) tube gives mechanical protection and outer sealing on underground splices up to 36 kV. Cold Shrink Tube installs the same joint without a torch — factory-expanded onto a removable core.

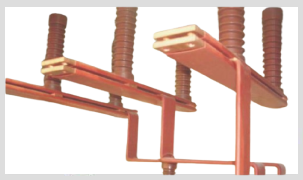

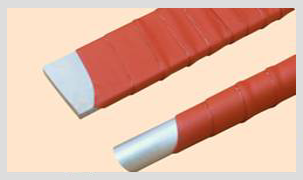

Heat Shrink Busbar Sleeve insulates busbar systems up to 36 kV, protects against accidental flash-over and reduces air clearance; a separate extra-heavy-wall series (GEHB) extends that to 66 kV. Heat Shrink Tape insulates medium voltage busbar connections where tubing won't fit.
Heat Shrinkable Vented Thin Wall Tube protects wind power anchor bolts, U-bolts and automotive parts against corrosion, in cross-linked material.

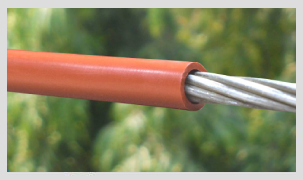

Overhead Line Covers and Tubes in UV-resistant polyolefin and non-tracking silicone, Creepage Extenders for polluted-area insulators, and GPFIC Bus/Bushing Connection Insulating Covers eliminate outages caused by birds and animals.
Applications Served
- Onshore and offshore wind farm cable joints and terminations
- Wind power anchor bolt and U-bolt corrosion protection
- Medium voltage busbar insulation and air-clearance reduction up to 66 kV
What Gala Offers
- Heat shrink cable joints for PVC/PILC/XLPE/EPR cable up to 66 kV Class
- CLASS 1 heat shrink terminations, tamper-resistant to environmental factors
- Screened separable connectors: 630A to 24 kV standard, 630/1250A to 36 kV extended range, EPDM rubber
- Heat shrink busbar sleeve up to 36 kV (66 kV in the extra-heavy-wall GEHB series)
- Vented thin wall tube protects wind power anchor bolts and U-bolts against corrosion
- Overhead line covers, creepage extenders and GPFIC covers against bird and animal outages
