Cable Terminal Protector (GTPE-500)
The GTPE-500 elbow terminal protector is used in cable entry boxes with any indoor termination, where phase-to-phase clearance is limited and there is a risk of air flash-over.
- Economically viable for 11 kV and 22 kV
.png)
.png)
.png)
Choose a size
Selection Chart
| Product code | Application voltage(kV) | Bushing centre distance |
|---|---|---|
| GTPE - 500 | 12 | 95 |
*All dimensions are in mm. Source: GALA Cable Terminal Protector for RMU catalogue sheet, Issue 1, July 2026.
Material properties
Technical Specification
| Test description | Recorded value | Test method |
|---|---|---|
| Physical | ||
| Tensile Strength | 10 N/mm² (MPA) (min.) | ASTM D638 |
| Ultimate Elongation | 200% (min.) | ASTM D638 |
| Water Absorption | 0.5% (max) | ASTM D570 |
| Hardness | 35±5 shore D | ASTM D2240 |
| Thermal | ||
| Continuous Temp. Limit | -40° to +115 °C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 15 kV/mm (min.) | ASTM D149 |
| Dielectric constant | 5 (max.) | ASTM D150 |
Source: GALA Cable Terminal Protector for RMU catalogue sheet, Issue 1, July 2026.

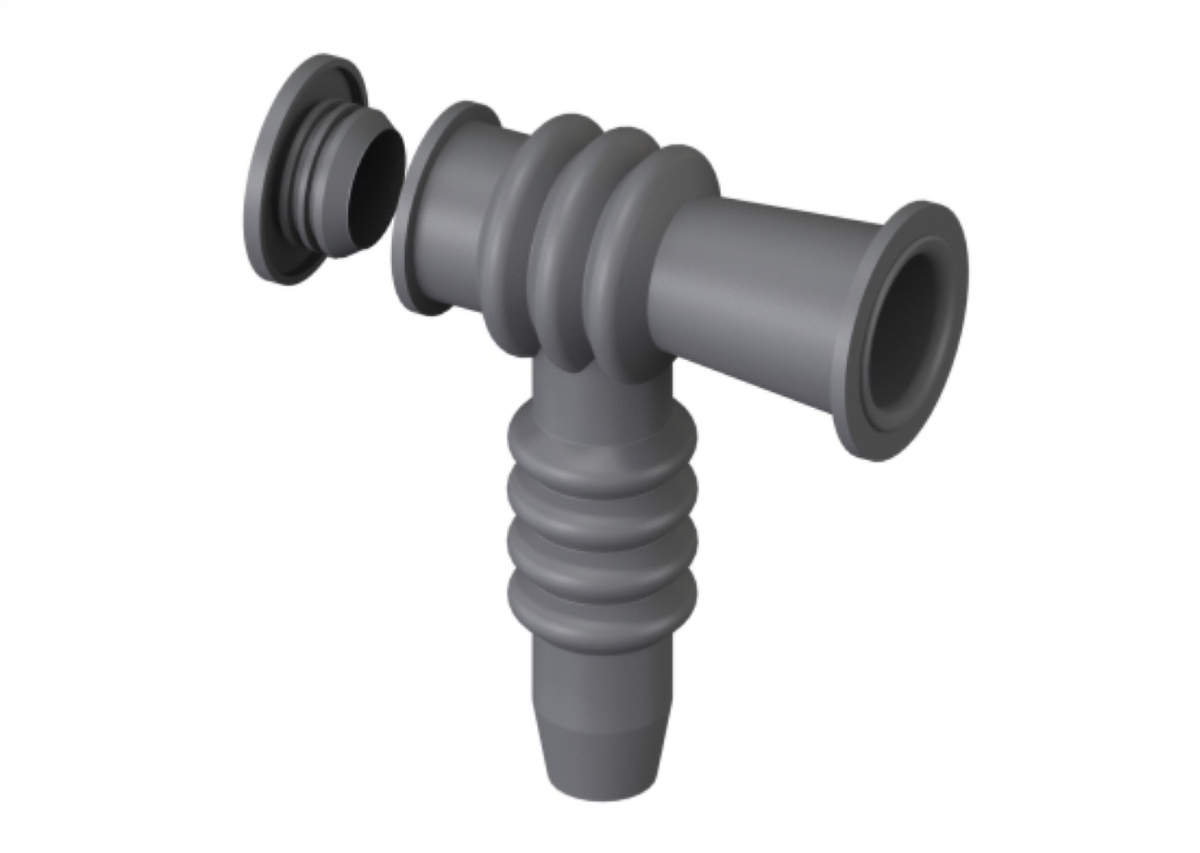

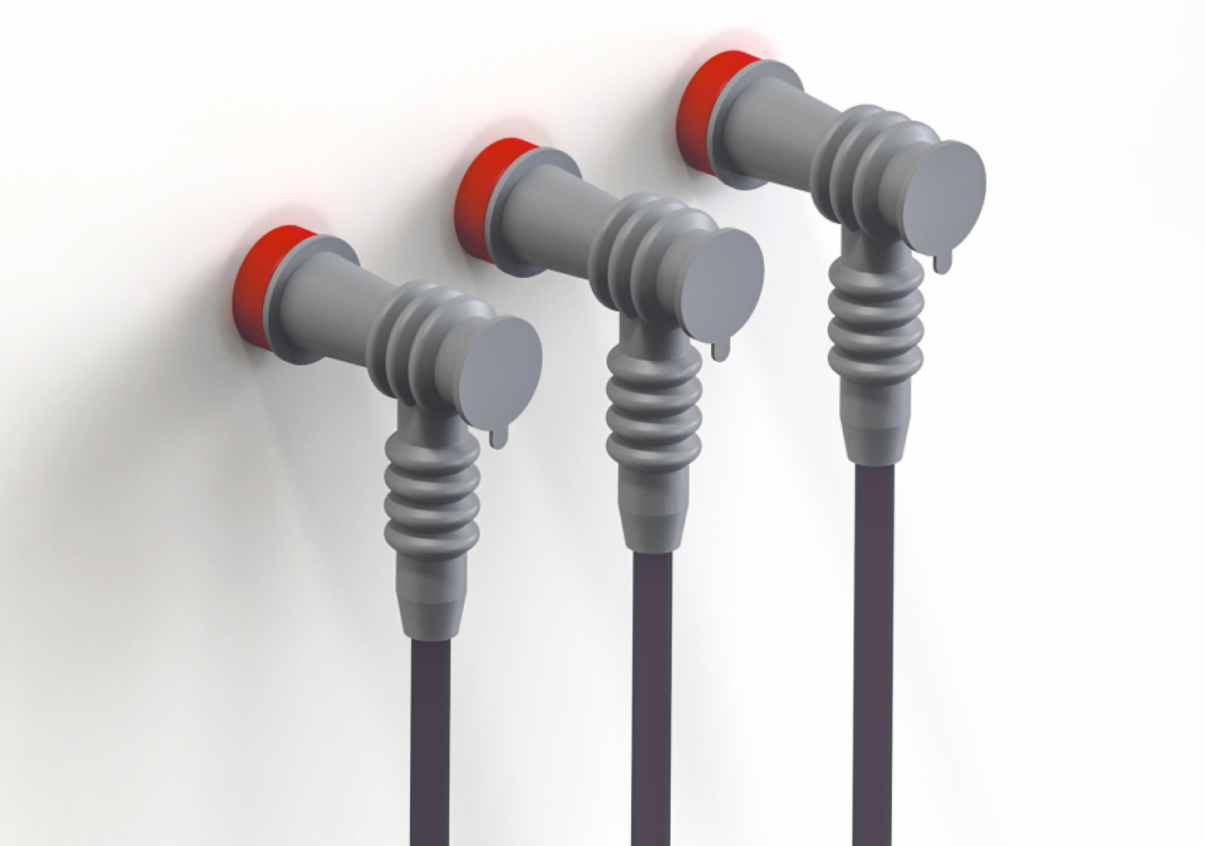

GTPE-500 is a one-piece elbow terminal protector for cable entry boxes where phase-to-phase clearance is tight and air alone would not give adequate insulation, acting as a barrier against flashover. Moulded from EPDM rubber for UV resistance, tracking resistance, insulation and mechanical strength, and factory-tested for reliability.
Fits epoxy bushings and RMU type-C bushings; dielectric strength exceeds 15 kV/mm. It is not a touch-proof product.
Covered on this page
- Cable Terminal Protector(GTPE-500)
Features & Benefits
- Easy to install and re-usable
- Suitable for cable range 25 sq.mm to 300 sq.mm
- Fits sector-shaped cables
- Facilitates direct voltage testing
- Economically viable for 11 kV and 22 kV
- Suitable for RMU with type C bushing in a compact design
Applications

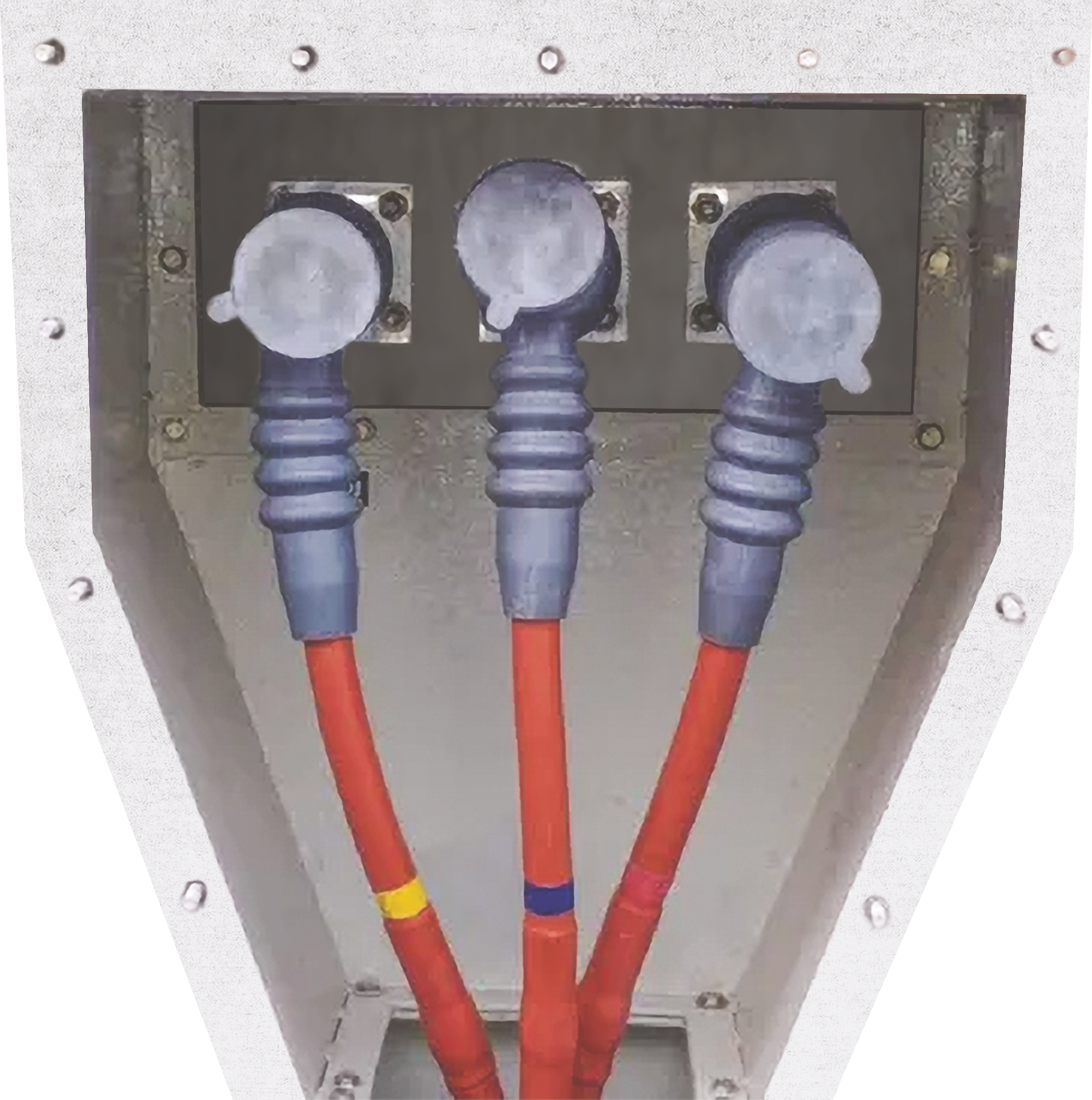

- Compact cable entry boxes with limited phase-to-phase clearance
- RMU bushings of type C, compact design
FAQs
Frequently Asked Questions
What is the Cable Terminal Protector used for?
It is used for:
- Compact cable entry boxes with limited phase-to-phase clearance
- RMU bushings of type C, compact design
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
