Heat Shrink Termination Kit GXO/E-3336 — 36 kV XLPE/EPR
GXO/E-3336 series Class I heat shrinkable termination kit for 3-core XLPE/EPR insulated cable, shielded, armoured or unarmoured, rated 36 kV — the top of the GXO/E range.
Choose a size
Selection Charts
| Cable size(sq. mm) | Outdoor kit code | Indoor kit code |
|---|---|---|
| 25-50 | GXO-31 | GXE-31 |
| 70-95 | GXO-32 | GXE-32 |
| 120-185 | GXO-33 | GXE-33 |
| 240-400 | GXO-34 | GXE-34 |
All kits are supplied with full kit contents for making a termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXO/E-3336-Series page.
GXO/E-3336 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 6. | Terminal Sleeve | 3 Nos. |
| 7. | Non-Tracking Weather Resistant Tubing | 3 Nos. |
| 8. | Stress Control Tubing | 3 Nos. |
| 9. | Rain Shed | 12 Nos. |
| 10. | Non-Tracking Cable Break Out | 1 Nos. |
| 11. | Tinned Copper Earth Braid | 1 Nos. |
| 14. | Worm Drive Clips | 2 Nos. |
| 15. | Mastic Sealing Tape | 1 Roll. |
| 16. | Terminal Lug | 3 Nos. |
| 17. | Lug Selling Tape | 3 Nos. |
| 18. | Stress Mastic | 3 Nos. |

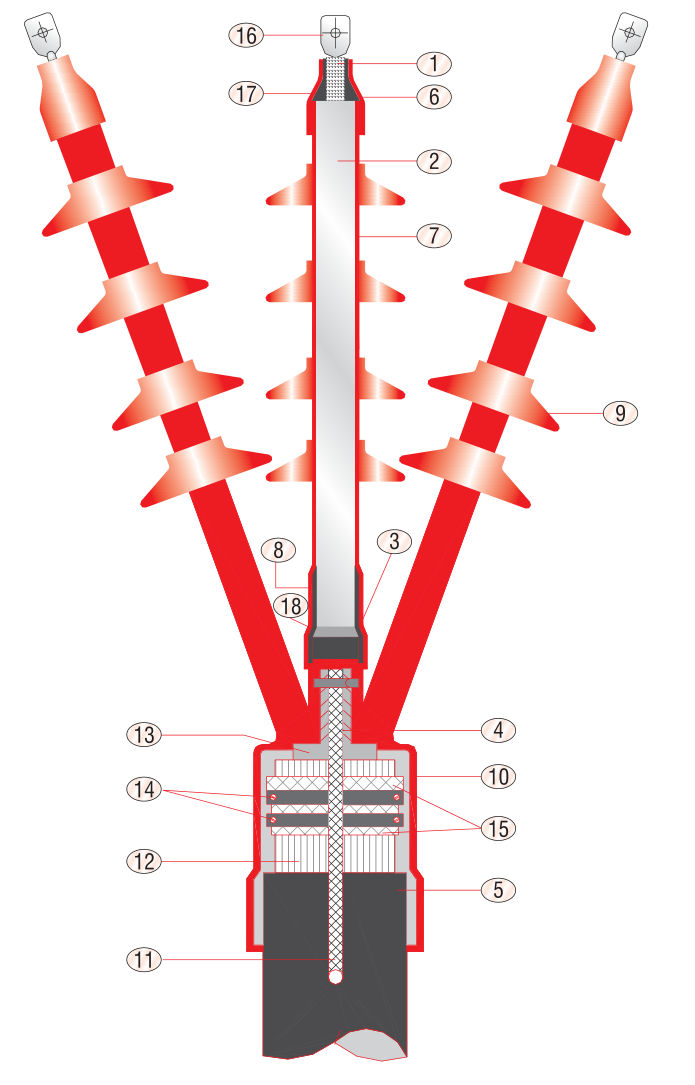

| Cable components (numbers on the drawing) | ||
| 1. | Conductor | |
| 2. | Insulation | |
| 3. | Semi Conductor Screen | |
| 4. | Metal Shield | |
| 5. | Outer Sheath | |
| 12. | Armour | |
| 13. | Inner Sheath | |
| Installation aids & accessories (part of the standard kit) | ||
| • | Armour Earthing Arrangement (Tinned Copper + Back Up Ring + Jubilee Clamp) | 1 Set. |
| • | Metal Shield Earthing Arrangement (Small Copper Braid + Solder + Flux) | 1 Set. |
| • | Silicone Grease | 2 Nos. |
| • | Cleaning Tissue | 3 Nos. |
| • | Nylon String for Cutting XLPE Insulation | 1 Nos. |
| • | Aloxite Emery Tape | 3 Nos. |
| • | Mopping Cloth | 1 Nos. |
| • | Installation Instruction Manual | 1 Nos. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXO/E-3336-Series page.

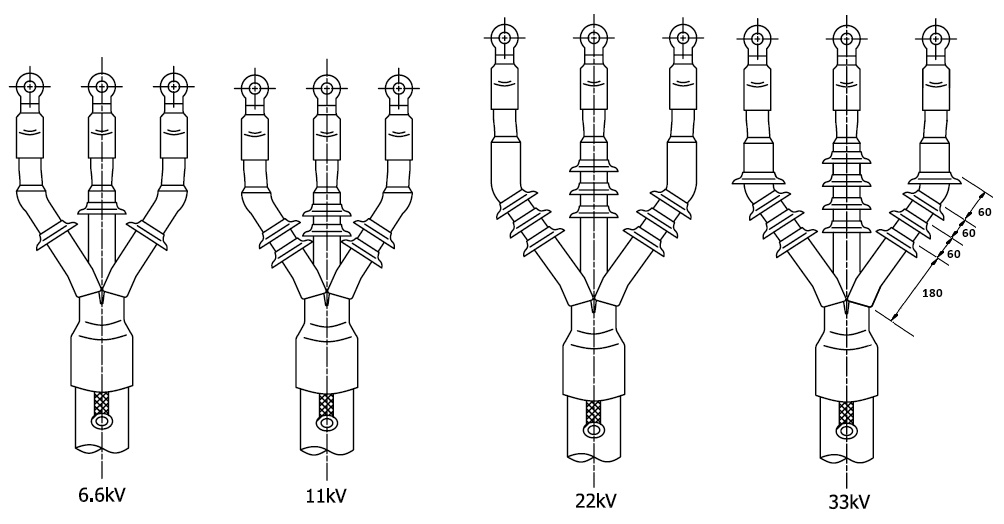

Dimensions & Drawings
GXO/E-3336 terminates 3-core XLPE/EPR shielded cable at 36 kV, the highest voltage class in Gala's GXO/E extruded-dielectric termination series.
Covered on this page
- Cable Terminations - GXO/E - 3336 - Series Heat Shrinkable Terminations Suitable for 3 Core XLPE/EPR Insulated Cables For 36kV
- Accessories and optional items
Features & Benefits
- Terminal sleeve and non-tracking weather-resistant tubing
- Stress control tubing
- Rain shed and non-tracking cable breakout
- Tinned copper earth braid and worm drive clips
- Standard tail length 600mm outdoor and 450mm indoor; special tail lengths on request
- Indoor kits supplied without rain sheds; temperature-sensitive paint changes colour when shrinking is complete
- Solderless and special purpose earthing kits, polymeric insulators and T brackets available on request
- Outdoor (GXO-31 to GXO-34) and indoor (GXE-31 to GXE-34) kit codes for 25 to 400 sq mm cable
Applications
- Terminating 3-core XLPE/EPR insulated cable rated 36 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Termination Kit GXO/E-3336 used for?
It is used for:
- Terminating 3-core XLPE/EPR insulated cable rated 36 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 120-185 sq mm cable takes GXO-33 (Outdoor) or GXE-33 (Indoor).
How is it installed?

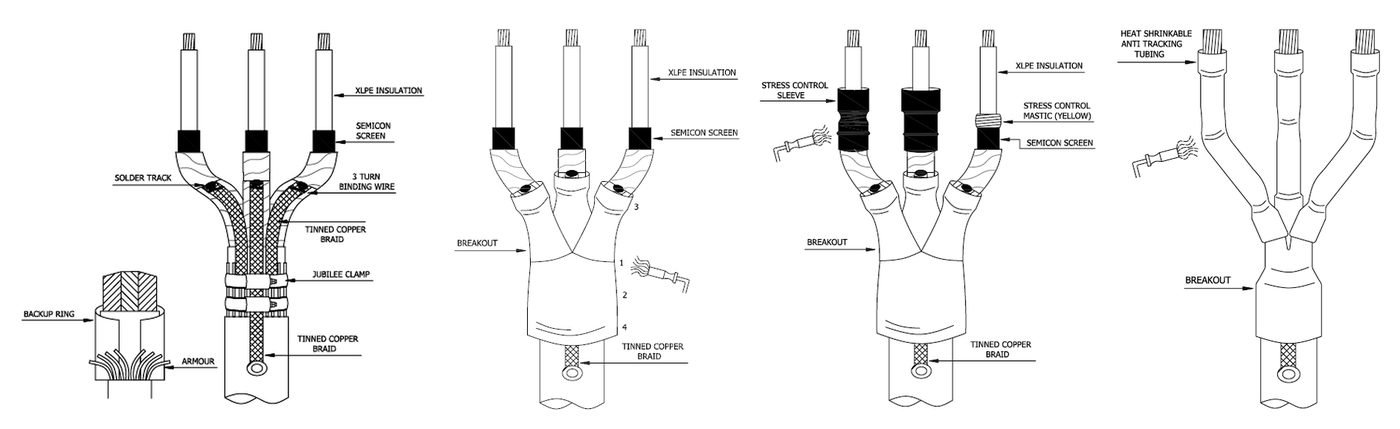

Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
