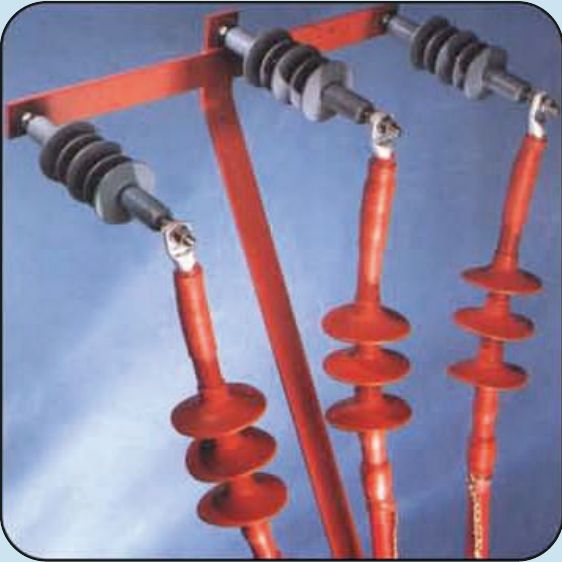

Heat Shrink Termination Kit GPO/E-1112 — 12 kV PILC
GPO/E-1112 series Class I heat shrinkable termination kit for 3-core paper insulated lead covered (PILC), armoured or screened cable, rated 12 kV.
Choose a size
Selection Charts
| Cable size(sq. mm) | Outdoor kit code | Indoor kit code |
|---|---|---|
| 16-35 | GPO-11 | GPE-11 |
| 50-95 | GPO-12 | GPE-12 |
| 120-185 | GPO-13 | GPE-13 |
| 240-400 | GPO-14 | GPE-14 |
| 500 | GPO-15 | GPE-15 |
Standard tail length is 600 mm for outdoor and 450 mm for indoor terminations; special tail lengths on request. All indoor kits are supplied without rain shed. All kits are supplied with full kit contents for making a termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-1112-Series page.

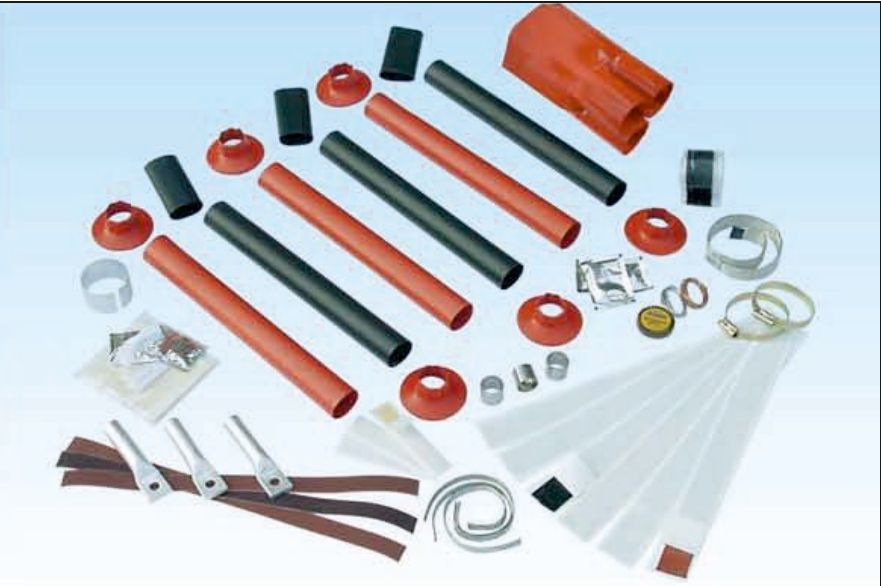

GPO/E-1112 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | Terminal Lug | 3 Nos. |
| 2. | Lug Sealing Mastic | 3 Strips |
| 3. | Terminal Sleeve | 3 Nos. |
| 4. | Oil Barrier Sleeve | 3 Nos. |
| 5. | Non Tracking Weather Resistant Sleeve | 3 Nos. |
| 6. | Stress Control Sleeve | 3 Nos. |
| 7. | Belting Oil Barrier Sleeve | 1 No. |
| 8. | Glass Cushion Tape | 1 No. |
| 9. | Cable Breakout | 1 No. |
| 10. | Earthing Connection Lead | 1 No. |
| 11. | Earthing Plumb | 1 Set |
| 12. | Rain Sheds | 6 Nos. |
| Installation aids & accessories (part of standard kit) | ||
| • | Mastic Sealing Tape | 1 Roll |
| • | Cleaning Solvent | 1 Bottle |
| • | Emery Sheet | 1 No. |
| • | Mopping Cloth | 1 Pc. |
| • | Installation Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-1112 page.

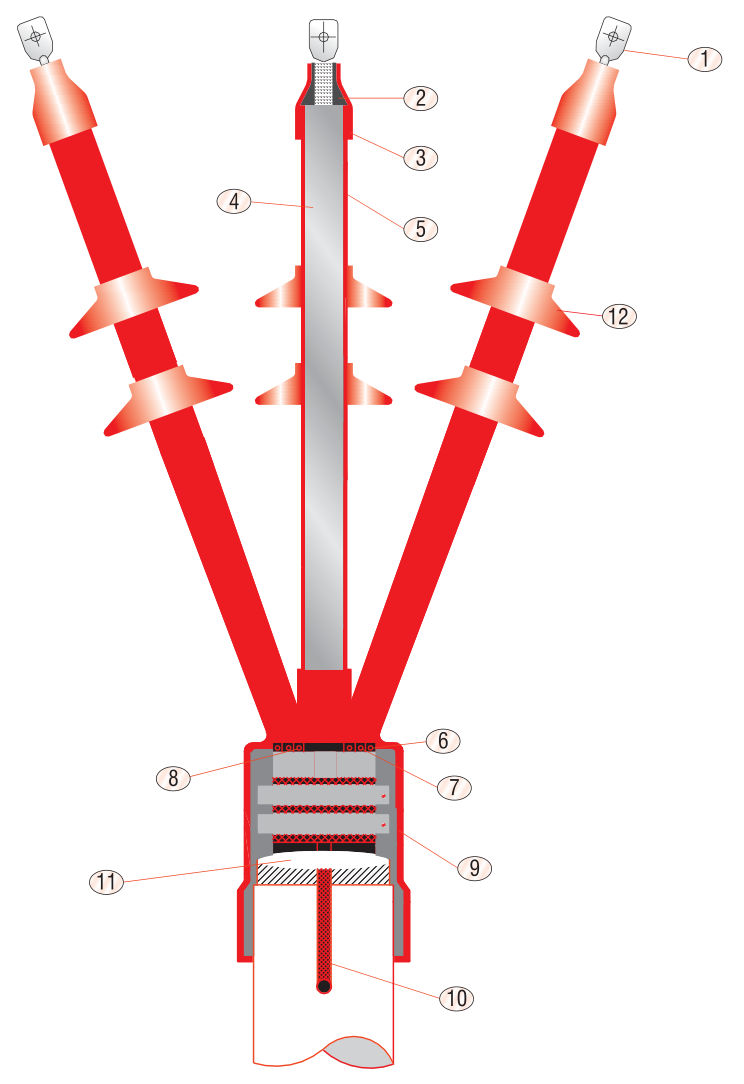

Dimensions & Drawings
GPO/E-1112 terminates PILC cable at 12 kV — the entry point of Gala's GPO/E paper-insulated termination range, which continues at 24 kV and 36 kV.
Covered on this page
- Accessories and optional items
Features & Benefits
- Terminal lug and lug sealing mastic
- Terminal sleeve and oil barrier sleeve
- Non-tracking weather-resistant sleeve and stress control sleeve
- Belting oil barrier sleeve, glass cushion tape, cable breakout, earthing lead and rain sheds
- Installation aids: mastic sealing tape and cleaning solvent
- 12 kV electrical performance: AC dry withstand 35 kV / 1 minute, DC withstand 48 kV / 30 minutes, lightning impulse withstand above 75 kV
- Standard tail length 600mm outdoor and 450mm indoor; indoor kits supplied without rain sheds
- Outdoor (GPO-11 to GPO-15) and indoor (GPE-11 to GPE-15) kit codes for 16 to 500 sq mm cable
Applications
- Terminating 3-core PILC armoured/screened cable up to 12 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Termination Kit GPO/E-1112 used for?
It is used for:
- Terminating 3-core PILC armoured/screened cable up to 12 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 120-185 sq mm cable takes GPO-13 (Outdoor) or GPE-13 (Indoor).
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
