Cable Terminations (GLT / GXO / GPO Series)

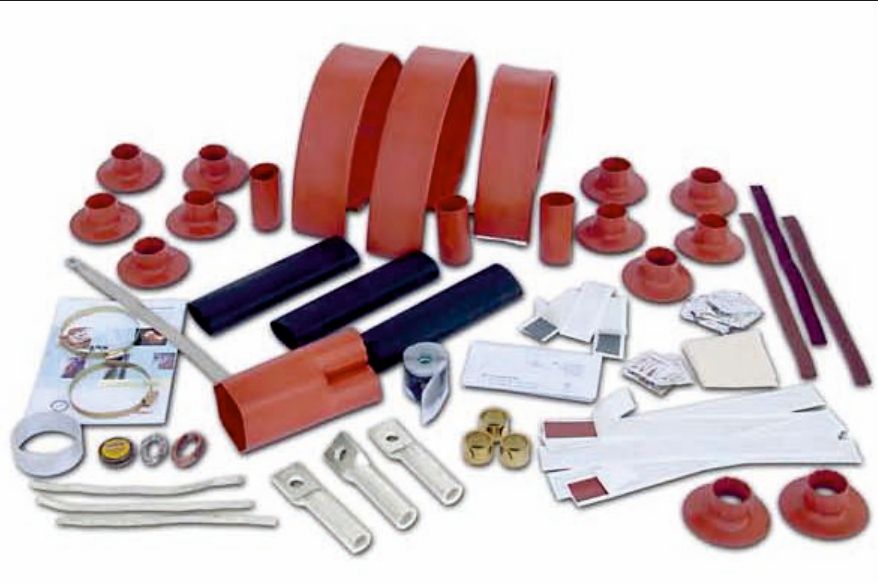

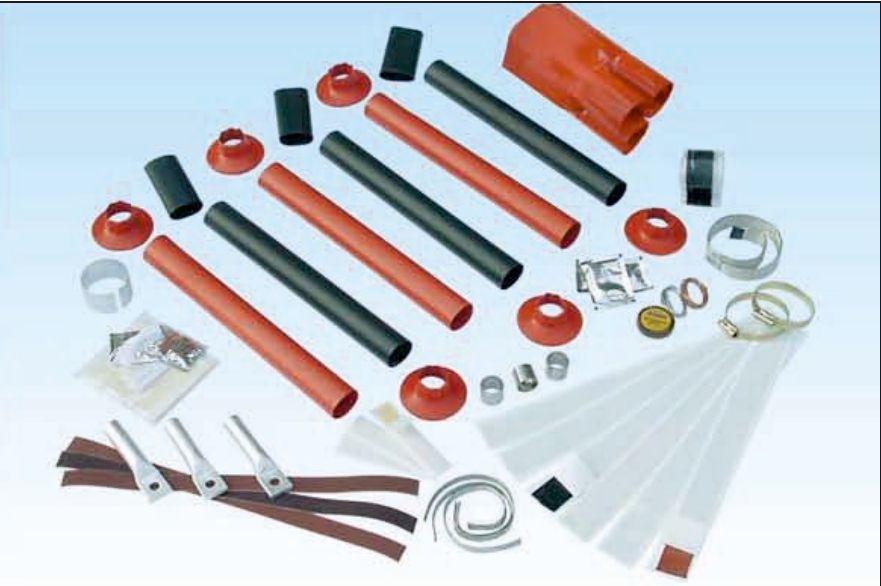

Heat shrinkable termination kits that seal and stress-grade the cut end of an MV power cable at a switchgear bushing, transformer or overhead line, from 1.1 kV up to 36 kV.
Dimensions & Drawings
Product Images

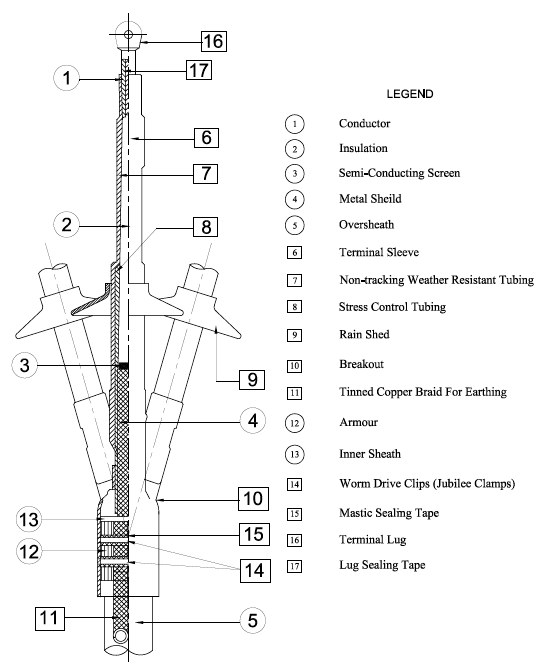

A cable termination ends a power cable at the point it connects to a bushing, transformer or overhead line, reconstructing stress control and weatherproofing over the exposed core ends. Gala's kits are supplied by voltage class and cable construction.
Covered on this page
- Cable Terminations
- Cable & Joints Terminations CABLINK
Features & Benefits

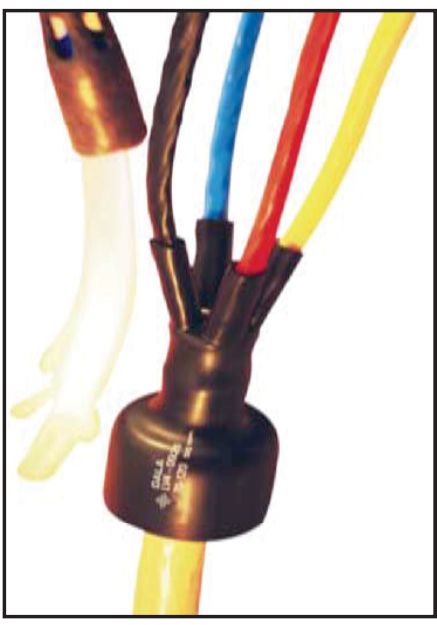

- GLT-1100 series: PVC/XLPE and paper-insulated cable up to 3.3 kV

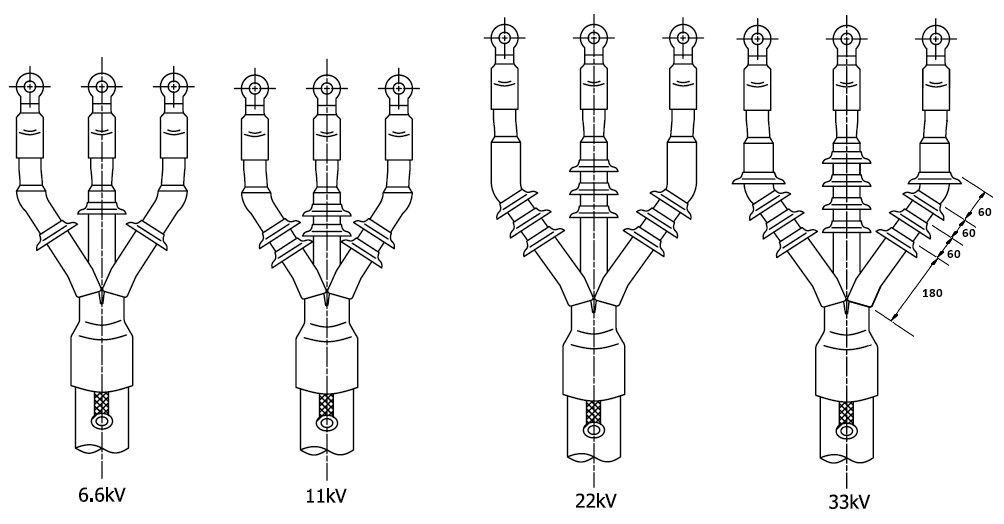

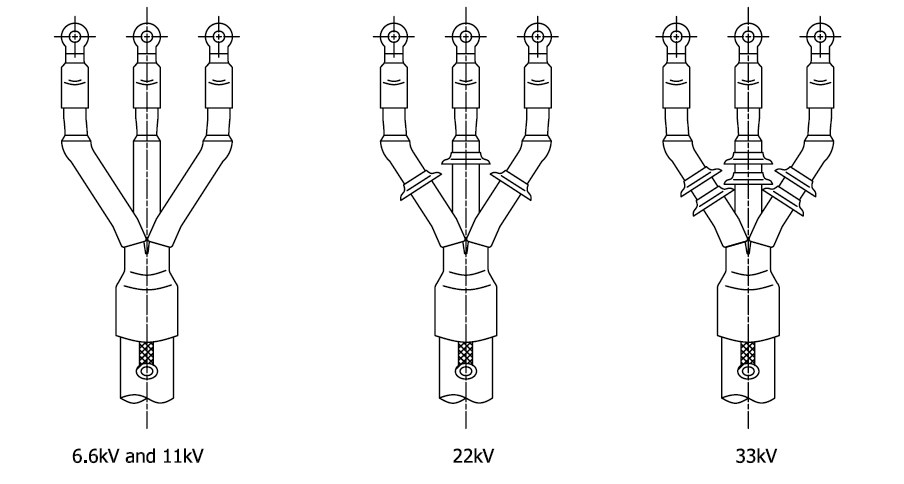

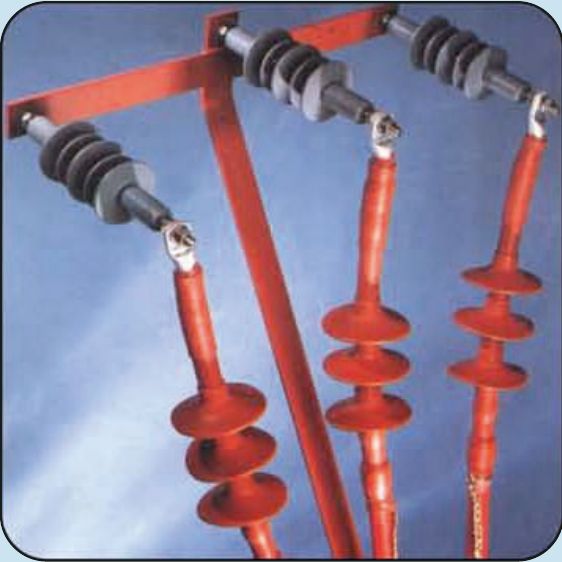

- GXO/E-1112, 1524 and 3336 series: 3-core XLPE/EPR cable at 12 kV, 24 kV and 36 kV

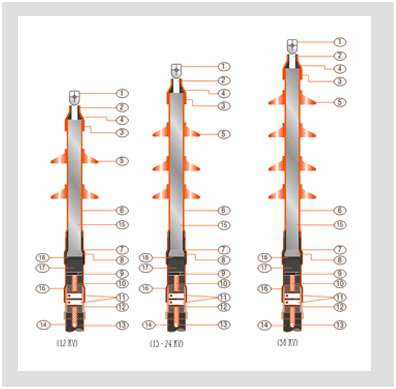

- GXOS/E-1236 series: single-core XLPE/EPR/PVC cable up to 36 kV
- GPO/E-1112, 1524 and 3336 series: PILC cable at 12 kV, 24 kV and 36 kV
Applications
- Indoor and outdoor MV cable terminations up to 36 kV
- PILC cable termination on legacy distribution feeders
- XLPE/EPR cable termination at switchgear bushings
FAQs
Frequently Asked Questions
What is the Cable Terminations used for?
It is used for:
- Indoor and outdoor MV cable terminations up to 36 kV
- PILC cable termination on legacy distribution feeders
- XLPE/EPR cable termination at switchgear bushings
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
