Heat Shrink Transition Joint GTJ/2436 kV — PILC to XLPE, 24/36 kV
GTJ/2436 kV series heat shrinkable transition joint designed for jointing XLPE cable to PILC cable, covering the 24 kV and 36 kV voltage classes in one kit.
Choose a size
Selection Charts
| System | Cable size(sq. mm) | Kit code |
|---|---|---|
| 15–24 kV | 25-50 | GTJ-21 |
| 15–24 kV | 70-95 | GTJ-22 |
| 15–24 kV | 120-150 | GTJ-23 |
| 15–24 kV | 185-300 | GTJ-24 |
| 15–24 kV | 400-500 | GTJ-25 |
| 36 kV | 35-70 | GTJ-31 |
| 36 kV | 95-150 | GTJ-32 |
| 36 kV | 185-300 | GTJ-33 |
| 36 kV | 400 | GTJ-34 |
15–24 kV system: 8.7/15 kV, 11/11 kV, 12.7/22 kV. 36 kV system: 19/33 kV. All kits are supplied with full kit contents for making a transition joint. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GTJ/2436kV-Series page.
GTJ/2436 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | Inline Connerctor (Barrier Type) | 3 Nos. |
| 2. | Stress Relif Mastic | 6 Nos. |
| 3. | H. S. Oil Barrier Sleeve | 3 Nos. |
| 4. | Semi-conducting Tubing | 1 Nos. |
| 5. | High Permittivity Void Filler | 1 No. |
| 6. | H. S. Conducting Breakout | 1 No. |
| 7. | Stress Control Mastic at semi con Cut end XLPE side and semi-conducting | 6 Nos. |
| 8. | H. S. Stress Control Tubing | 3 Nos. |
| 9. | H. S. Insulation Tubings | 16 Nos. |
| * 15-24kV | 6 Nos. | |
| * 36kV | 9 Nos. | |
| 10. | H. S. Screened Tubing (Duall Wall) (Alternatively seperate Insulation & Conducting Tubings) | 3 Nos. |
| 11. | H. S. Compression Tubings | 3 Nos. |
| 12. | Metallic Protection case/Warparound Joint Case (Alternatively a G I Mesh Tape for mechanical protection A New concept.) | 1 Nos. |
| 13. | H. S. Adhesive Lined Side Sleeve | 2 Nos. |
| 14. | Insulating wedge EPDM | 1Nos. |
| 15. | Tinned Copper Mesh Tape | 3 Nos. |
| 16. | Tinned Copper Earth Braid | 1 No. |
| 17. | Constant Face Spring Clamp/Solder+Flux. | 1 Set. |
| 18. | Jubilee Clamps. | 2 Nos. |
| 19. | H. S. Outer Jacking Tubing (Centre) | 1 No. |
| 20. | Plumbing Metal | 1 Set. |

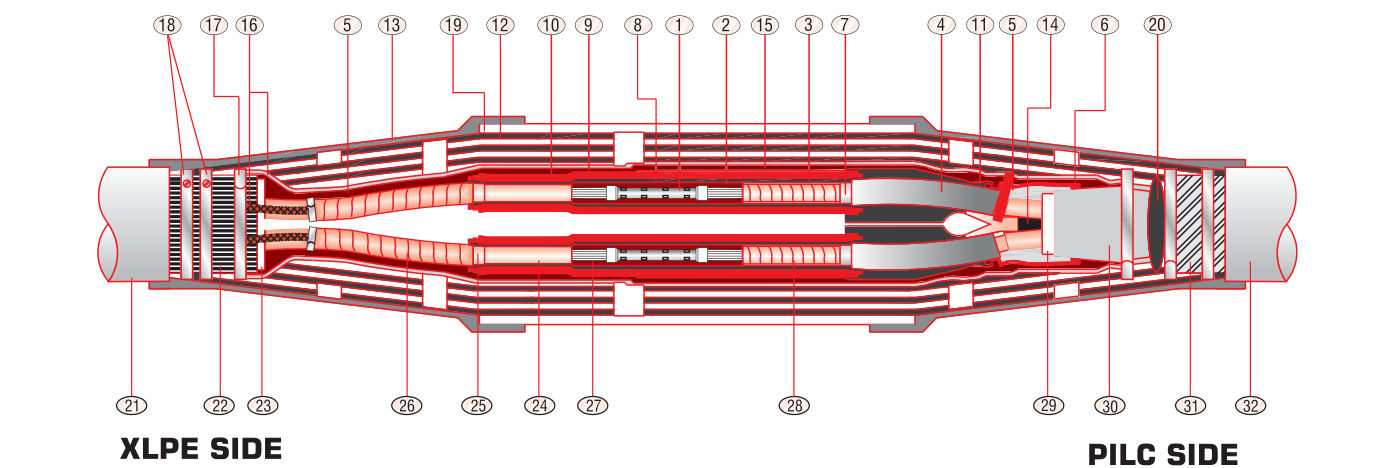

| Cable components (numbers on the drawing) | ||
| 21. | XLPE Cable Outer Sheath. | |
| 22. | Armour. | |
| 23. | Inner Sheath. | |
| 24. | XLPE Insulations. | |
| 25. | Semi-Conducting Screen. | |
| 26. | Copper Screen. | |
| 27. | Conductor. | |
| 28. | Paper Insulation. | |
| 29. | Paper Inner Sheath. | |
| 30. | Lead Sheath. | |
| 31. | Steel Armour. | |
| 32. | Paper Cable Outer Sheath. | |
| Installation aids & accessories (part of the standard kit) | ||
| • | Nylon String for Cutting XLPE Inulation | 1 No. |
| • | Aloxite Emery Tape | 3 Pcs. |
| • | Mopping Cloth | 1 Pc. |
| • | Silicon Grease | 3 Pcs. |
| • | Cleaning Tissue | 6 Pcs. |
| • | Mastic Sealing Tape | 2 Nos. |
| • | Copper Binding Wire | 1 Roll. |
| • | Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GTJ/2436kV-Series page.
Dimensions & Drawings
GTJ/2436 kV is the higher-voltage counterpart to GTJ/1112 kV, matching XLPE-side components (semi-conducting screen, copper screen) to PILC-side components (paper insulation, lead sheath, steel armour).
Features & Benefits
- Covers 15–24 kV system (8.7/15 kV, 11/11 kV, 12.7/22 kV) and 36 kV system (19/33 kV)
- AC withstand voltage 50 kV/1 minute (15–24 kV) and 75 kV/1 minute (36 kV)
- Matched cable-side components: XLPE outer sheath, inner sheath, XLPE insulation, semi-conducting screen, copper screen, conductor
- PILC-side components: paper insulation, paper inner sheath, lead sheath, steel armour, paper outer sheath
- DC withstand 96 kV / 30 minutes (15–24 kV) and 144 kV / 30 minutes (36 kV)
- Lightning impulse withstand 125 kV (15–24 kV) and 170 kV (36 kV)
- Kit codes GTJ-21 to GTJ-25 at 15–24 kV and GTJ-31 to GTJ-34 at 36 kV
Applications
- Transition jointing of XLPE cable to PILC cable at 24 kV and 36 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Transition Joint GTJ/2436 kV used for?
It is used for:
- Transition jointing of XLPE cable to PILC cable at 24 kV and 36 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, on a 15–24 kV system, a 400-500 sq mm cable takes kit GTJ-25.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
