Polyolefin Overhead Line Cover (Insulcover)

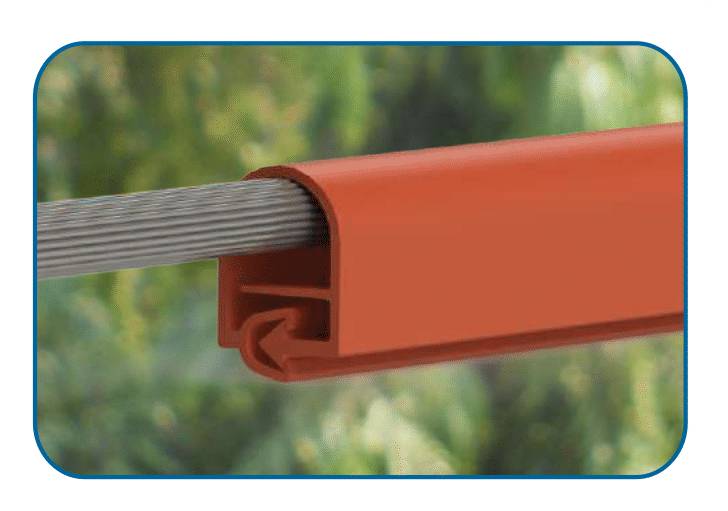

Insulcover is a wrap-around medium voltage line cover that retrofits insulation onto bare overhead conductors, preventing outages caused by tree branches or wildlife contact.
- ASTM D638
- ASTM D792
- ASTM D2240
Choose a size
Selection Chart
| Gala Code | Conductor Dia.(mm) | Packaging(Mtr./Roll) |
|---|---|---|
| GOC 1 | upto 10 | 30 |
| GOC 1A | upto 15 | 30 |
| GOC 2 | upto 22 | 30 |
| GOC 3 | upto 28 | 30 |
| GOC 4 | upto 38 | 30 |
Insulcover is available in five sizes that cover conductors up to 800 sq. mm. Source: GALA Overhead Line Cover (INSULCOVER) catalogue sheet, Issue 2, December 2025.
Material properties
Technical Specification
| Properties | Value | Test method |
|---|---|---|
| Tensile Strength | 9 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 250% (min.) | ASTM D638 |
| Density | 1.20 ± 0.2 gm/cm³ | ASTM D792 |
| Hardness | 40 ± 5 Shore D | ASTM D2240 |
| Water Absorption | 0.5% (max.) | ASTM D570 |
| Low Temperature Flexibility (-40 °C for 4 hrs.) | No Cracking | ASTM D2671 |
| Continuous Temperature Limit | -45 °C to +105 °C | IEC 216 |
| Dielectric Strength | 20 kV/mm (min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹³ Ohm.cm (min.) | ASTM D257 |
| Dielectric Constant | 5 (max.) | ASTM D150 |
Source: GALA Overhead Line Cover (INSULCOVER) catalogue sheet, Issue 2, December 2025.

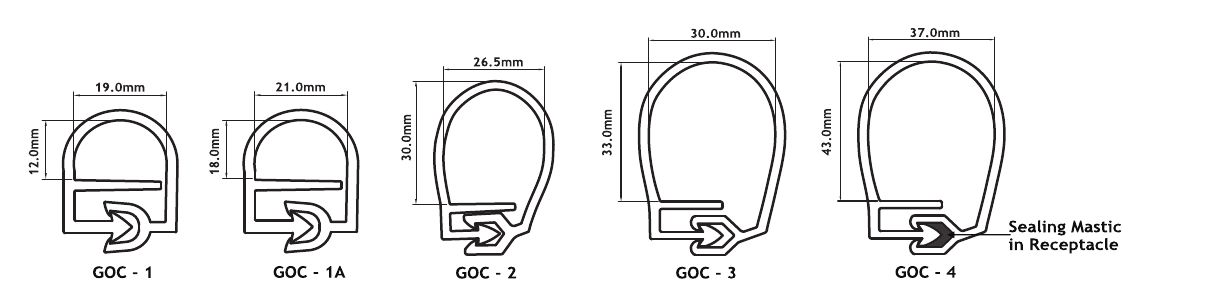

Dimensions & Drawings

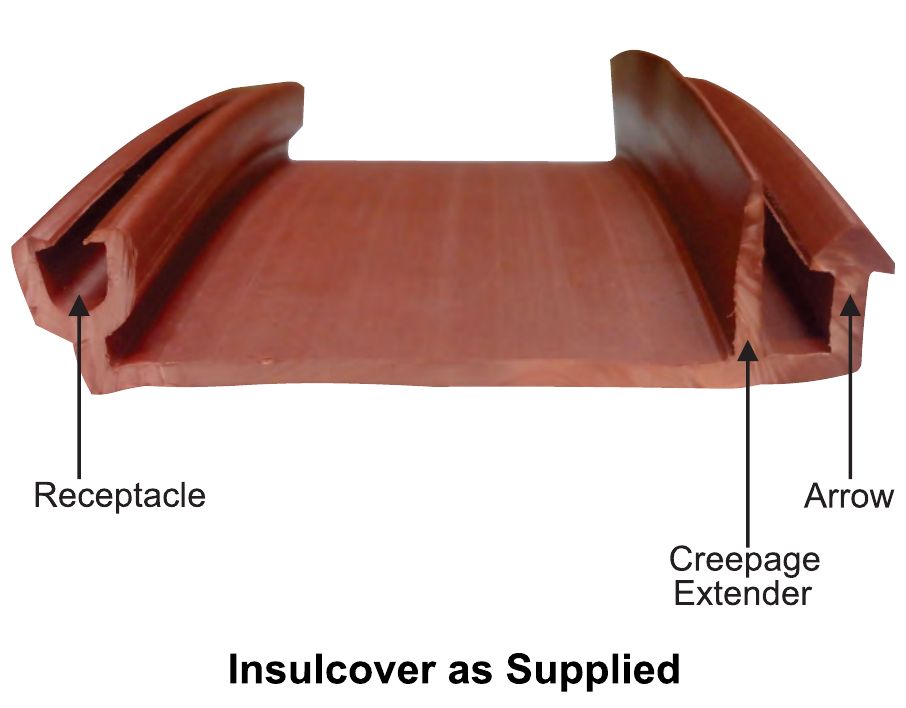

Insulcover is a wrap-around line cover in non-tracking cross-linked polyolefin, used to enhance insulation up to 400 kV. It retrofits insulation onto bare overhead conductors to prevent outages from tree and wildlife contact, without conductor replacement or added line hardware.

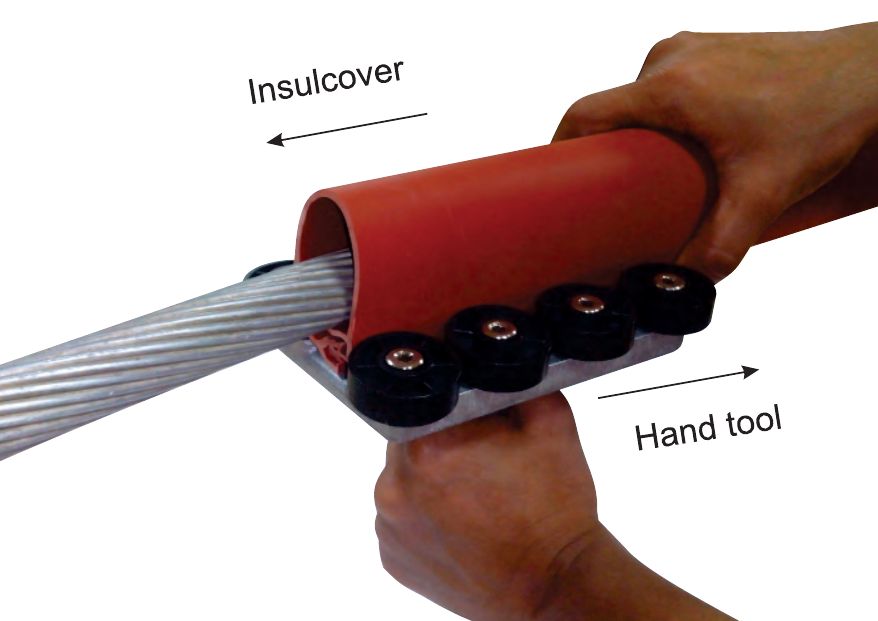

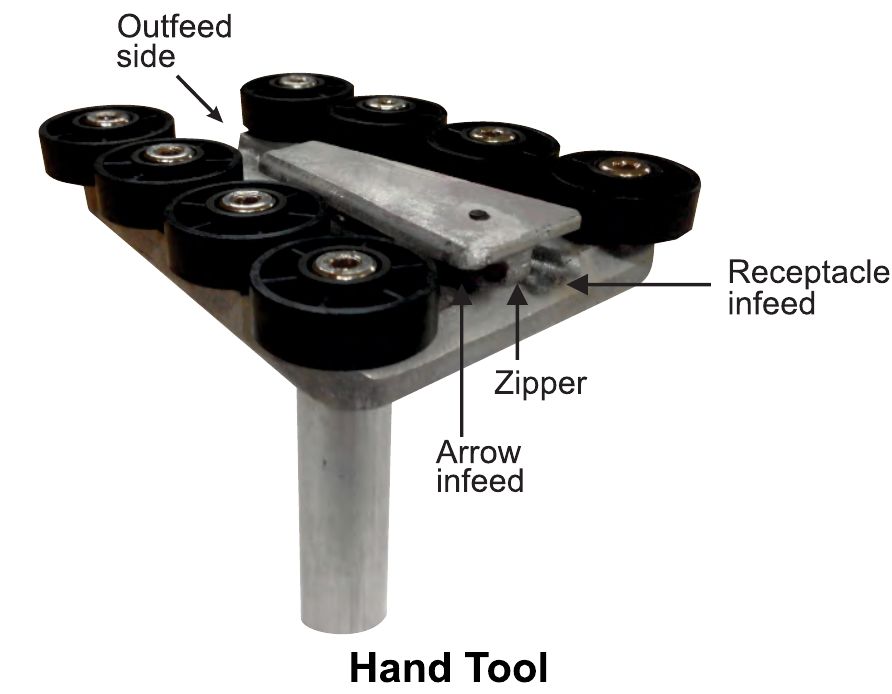

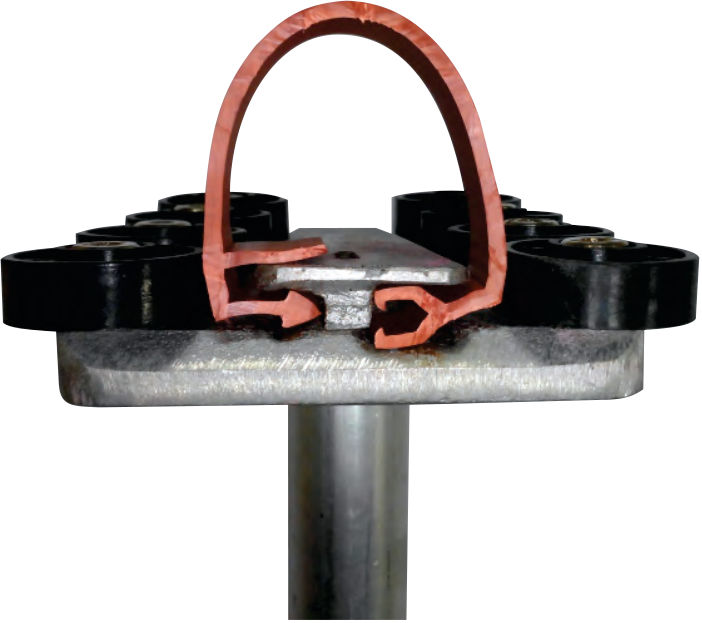

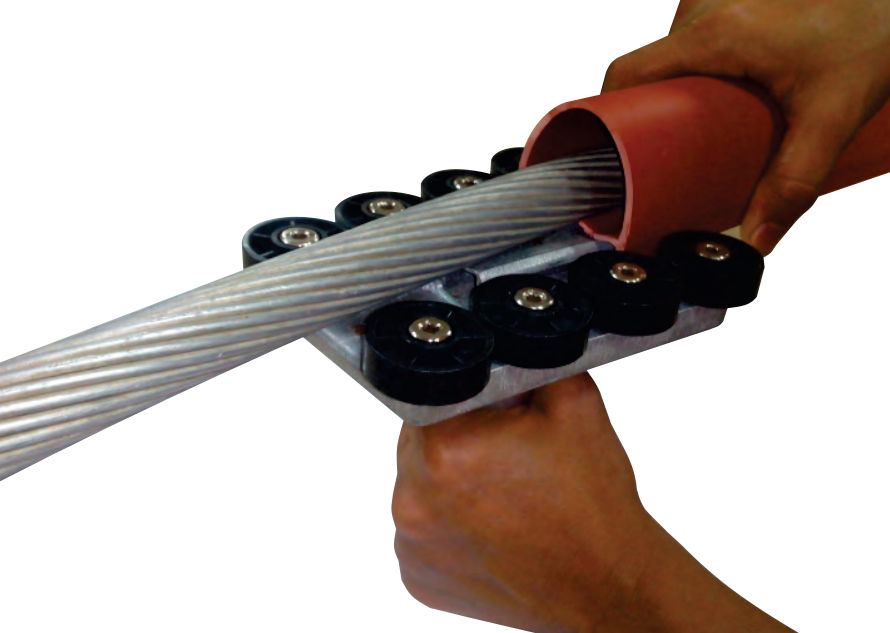

Installed with the Split Insulation Tube Tool, which stays in one location for the fit.
Features & Benefits
- High dielectric strength
- UV stabilised and weather resistant, passed 5000hr UV test
- Tracking and erosion resistant
- Resistant to chemical corrosion from strong acid, alkali and salt
- Halogen free, flame retardant
- Available in five sizes covering conductors up to 800 sq.mm
Applications
- Overhead conductor insulation retrofit
- Outage prevention from tree contact
- Wildlife protection on distribution lines
Standards & Compliance
- ASTM D638
- ASTM D792
- ASTM D2240
- ASTM D570
- ASTM D2671
- ASTM D149
- ASTM D257
- ASTM D150
- ASTM G154
- ASTM D2303
FAQs
Frequently Asked Questions
What is the Polyolefin Overhead Line Cover used for?
It is used for:
- Overhead conductor insulation retrofit
- Outage prevention from tree contact
- Wildlife protection on distribution lines
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D638
- ASTM D792
- ASTM D2240
- ASTM D570
- ASTM D2671
- ASTM D149
- ASTM D257
- ASTM D150
- ASTM G154
- ASTM D2303
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
