Termicap — PVC Terminal Insulation Cap
Termicap is Gala's flexible-PVC insulating and colour-coding cap for crimped wire-end terminals on power cables, tested to ANSI C37.20.2 for switchgear applications up to 36 kV.
Termicap is moulded from flexible PVC and tested to ANSI C37.20.2 for medium-voltage switchgear application up to 36 kV.
Termicap

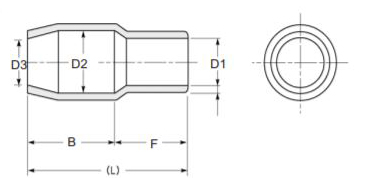

Technical Drawing :
Key Features
- Tested to ANSI C37.20.2 for medium-voltage switchgear application up to 36 kV
- TCV series, TCV 12 to TCV 3251; custom sizes, shapes and colours
- Insulates and colour-codes the crimped wire-end terminal
- Dielectric strength 16 kV/mm (min., ASTM D149)
- Tensile strength 12 N/mm² (min.), elongation 350% (min.), ASTM D638
- Continuous operating temperature −20°C to 115°C (IEC 216)
Applications
- Insulating and colour-coding crimped terminals on power cables
- Switchgear terminal insulation up to 36 kV
