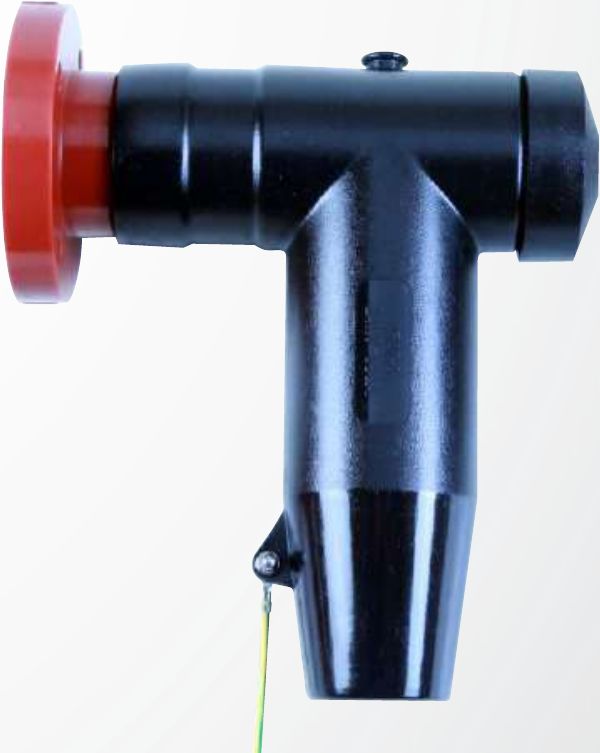

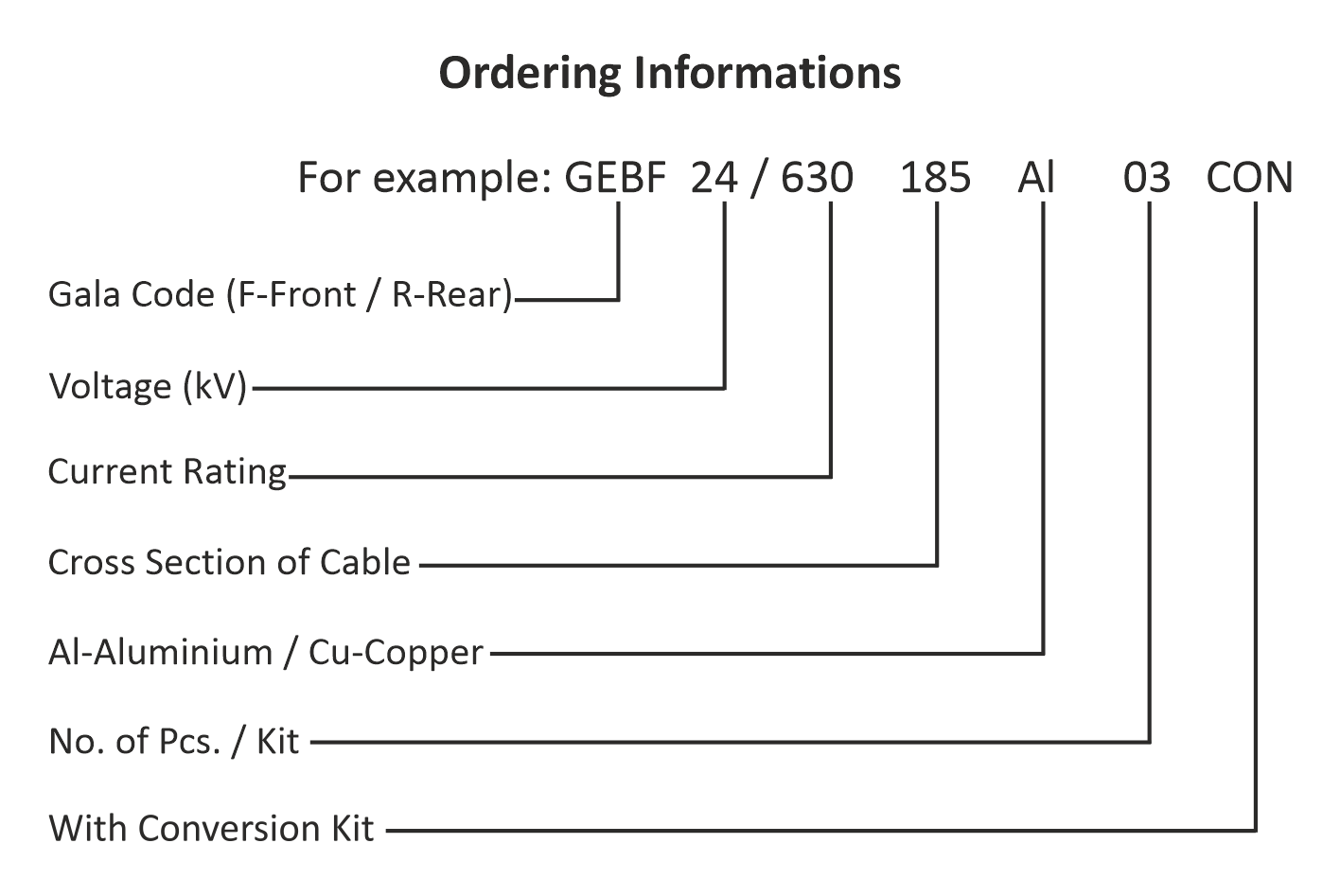

Screened Separable Connector up to 24 kV, 630A
Gala Screened Separable Connectors and touch-proof terminations connect single and three core polymeric cables to medium voltage switchgear and other equipment using type "C" bushings.
- EN 50180
- EN 50181
- IEC 60502.4
Dimensional data
Technical Specification
| Voltage class | 11kV | 24kV |
|---|---|---|
| Continuous Current | 630A | 630A |
| Alliance Bushing | EN 50180 & 50181 Type C | EN 50180 & 50181 Type C |
| AC Withstand Voltage | 29kV for 5 min | 54kV for 5 min |
| Impulse Withstand Voltage (10 times for each Polarity) | 95kV | 125kV |
| Partial Discharge at 1.73U0 | ≤10pC | ≤10pC |
| Screen Resistance | ≤5000Ω | ≤5000Ω |
| Cable Cross-section | 25-400mm² | 25-400mm² |
Source: GALA Screened Separable Connector catalogue, Issue 2, August 2026.

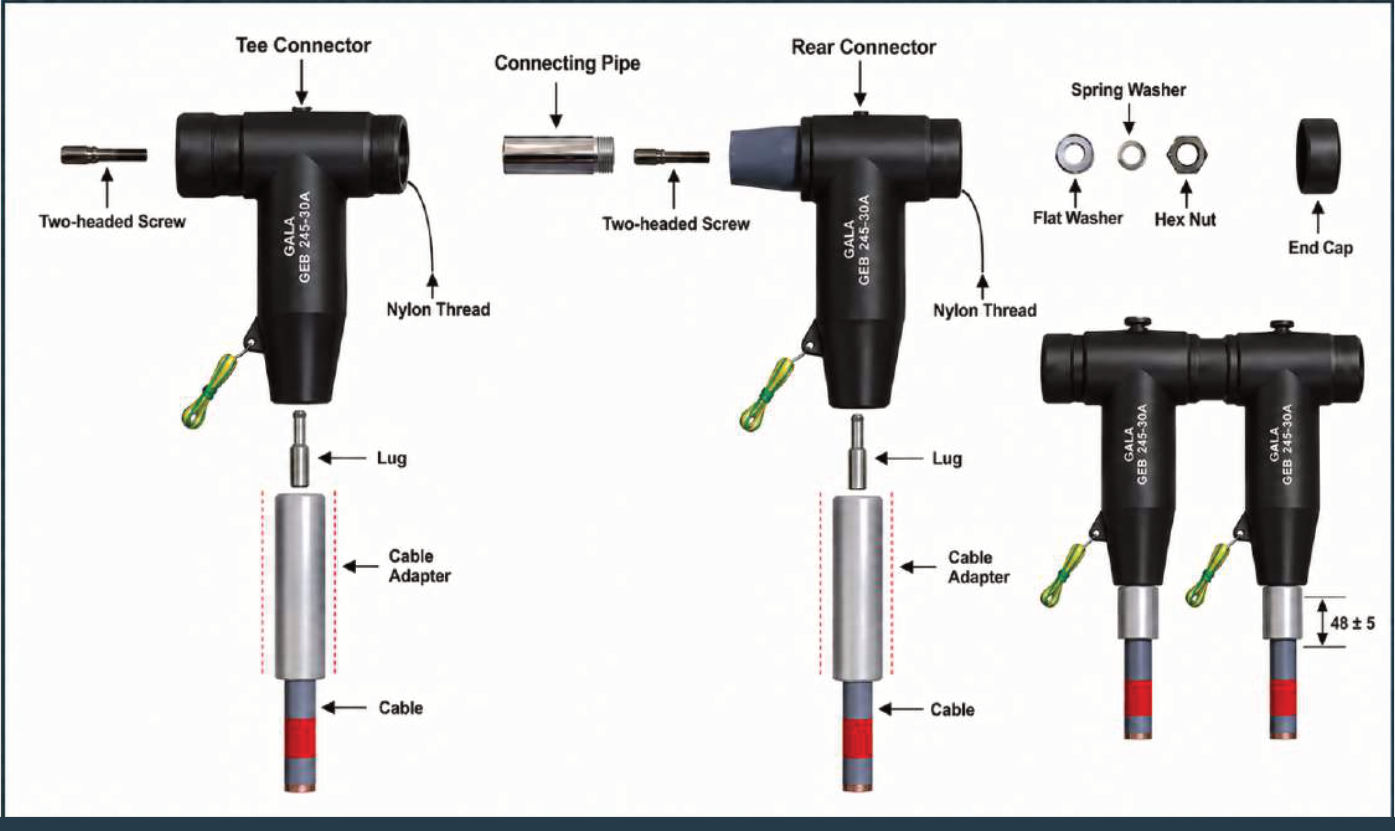

Dimensions & Drawings

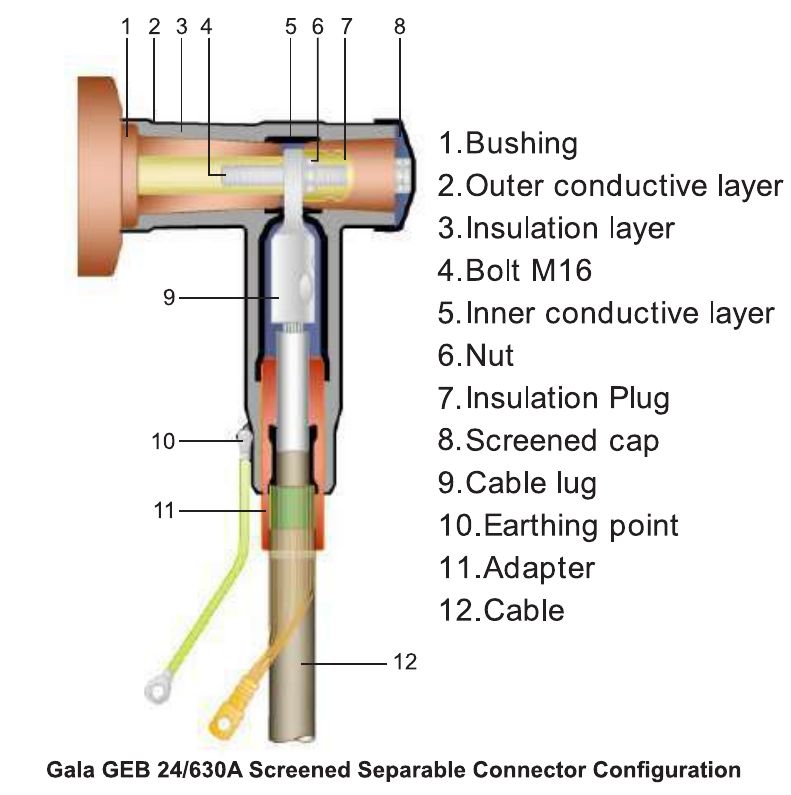

Gala's Screened Separable Connectors and touch-proof terminations connect single and three-core polymeric cable to medium-voltage switchgear and other equipment via type "C" bushings, in two variants: 630 A up to 24 kV, and 630/1250 A up to 36 kV. Built from highly modified EPDM rubber with a touch-proof, earthed outer conductive screen.
One body and stress-cone adapters cover cross-sections from 25 to 400 sq.mm up to 24 kV, and 95 to 630 sq.mm at 36 kV; every kit includes high-performance, multi-range compression lugs matched to the connector.
Covered on this page
- Screened Separable Connector upto 24 kV - 630 A
- Screened Separable Connector upto 36 kV - 630/ 1250 A
Features & Benefits
- Provides a fully screened and submersible separable connection
- Mates with C-type bushings and plugs complying with EN 50180 and EN 50181
- Compact design
- Each connector factory tested for AC withstand and partial discharge (PD)
- Tested in compliance with IEC 60502.4
- Two catalogue variants: 630 A up to 24 kV, and 630/1250 A up to 36 kV
Applications

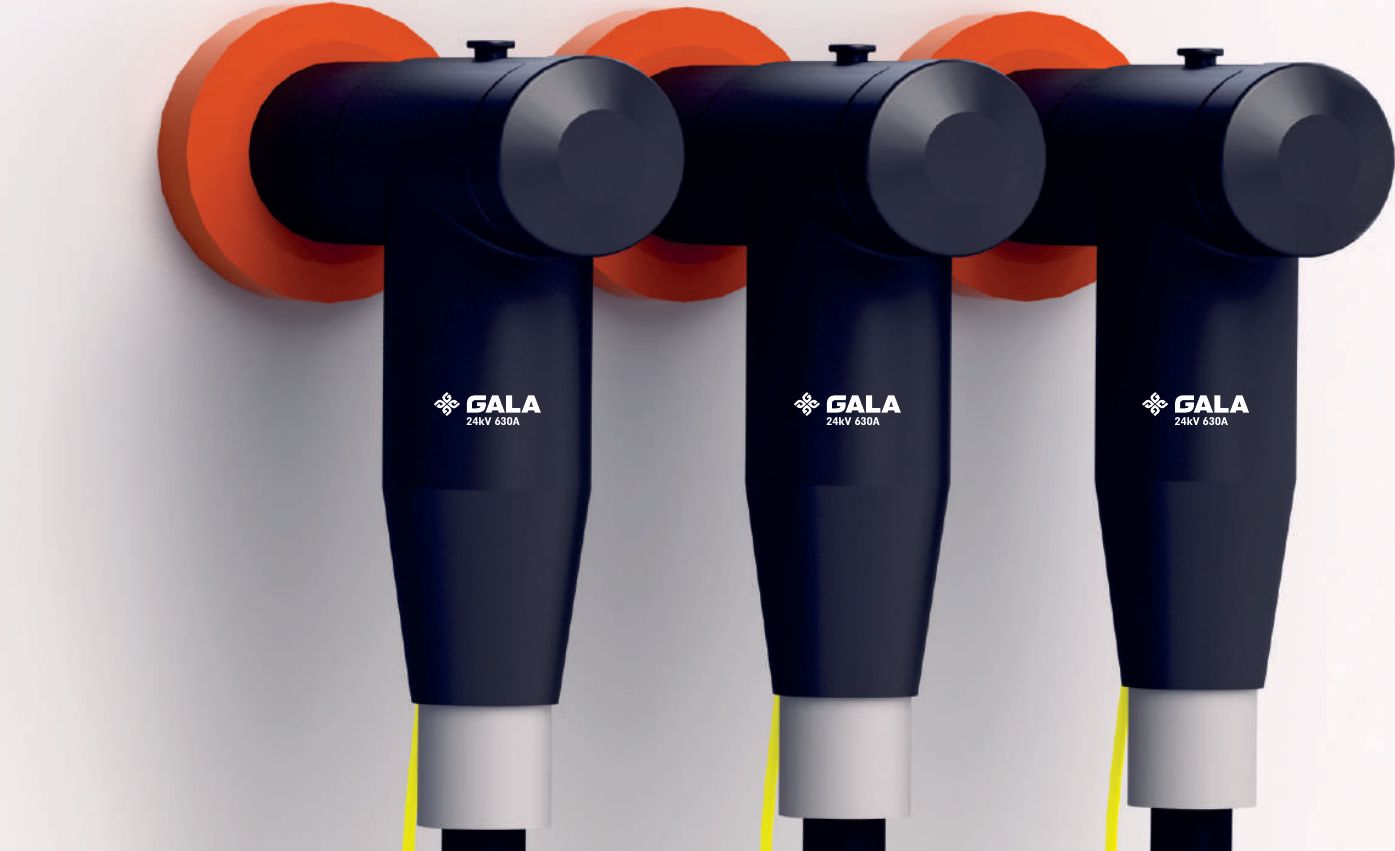

- MV switchgear connections up to 24 kV, 630A

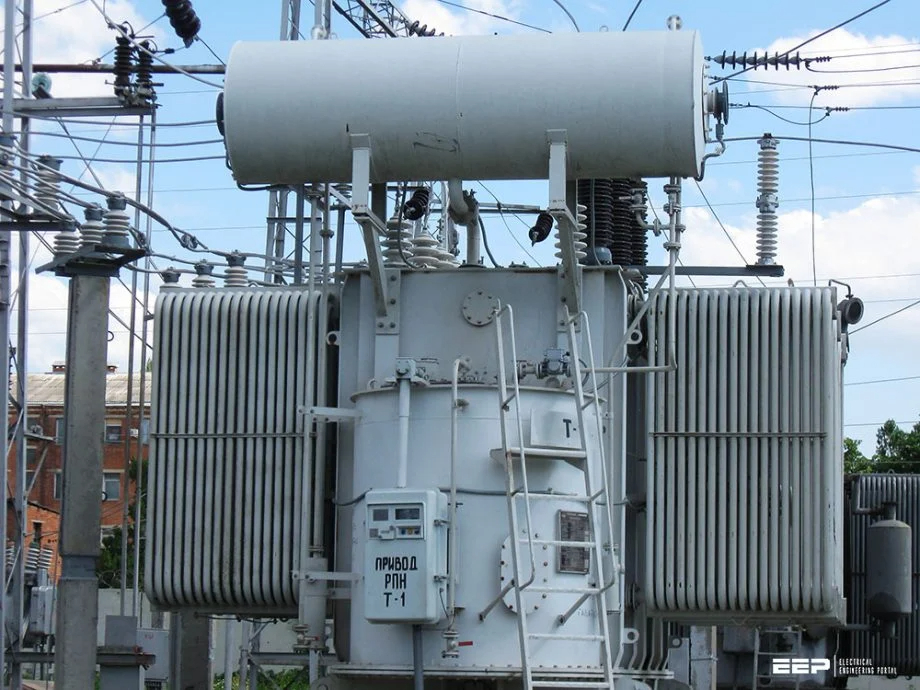

- RMU and transformer bushing connections
Standards & Compliance
- EN 50180
- EN 50181
- IEC 60502.4
FAQs
Frequently Asked Questions
What is the Screened Separable Connector up to 24 kV, 630A used for?
It is used for:
- MV switchgear connections up to 24 kV, 630A
- RMU and transformer bushing connections
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- EN 50180
- EN 50181
- IEC 60502.4
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
