GTJ Series Heat Shrink Transition Joint Kit
GTJ/1112-Series heat shrinkable transition joint kit for connecting PILC cable to XLPE cable — branch joints, transition joints and PILC cable accessories — on systems up to 12 kV.
- PILC cable accessories up to 12 kV
Choose a size
Selection Charts
| Cable size(sq. mm) | Kit code |
|---|---|
| 3x16-35 | GTJ-11 |
| 3x50-95 | GTJ-12 |
| 3x120-185 | GTJ-13 |
| 3x240-300 | GTJ-14 |
| 3x400-500 | GTJ-15 |
| 3X630 | GTJ-17 |
All kits are supplied with full kit contents for making a transition joint. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GTJ/1112kV-Series page.

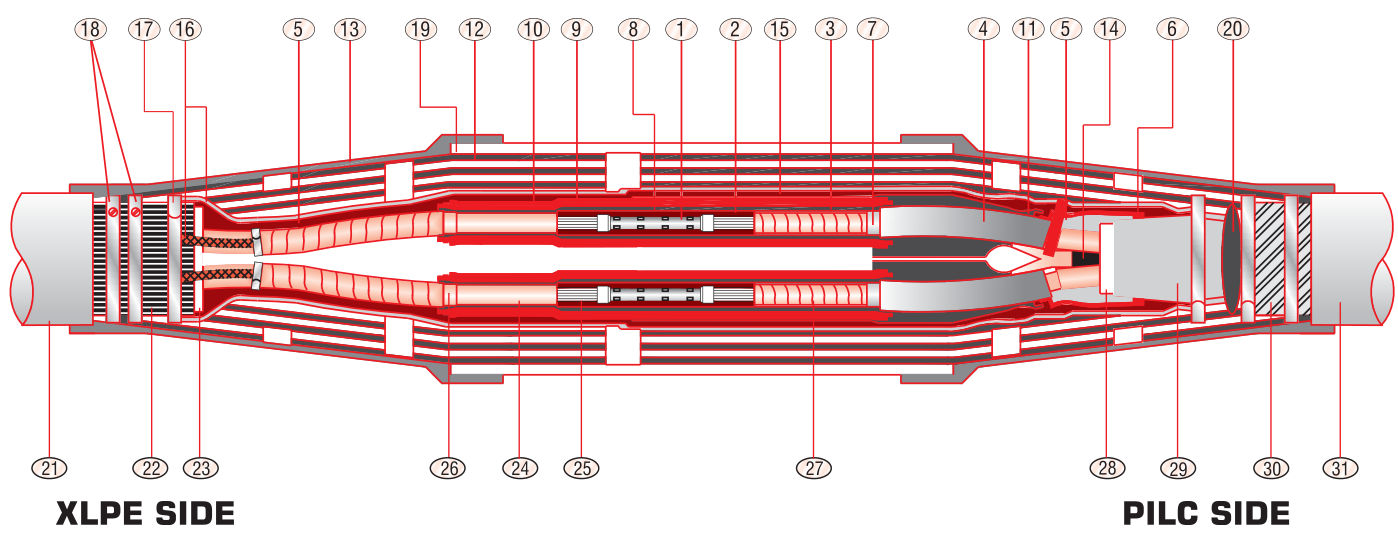

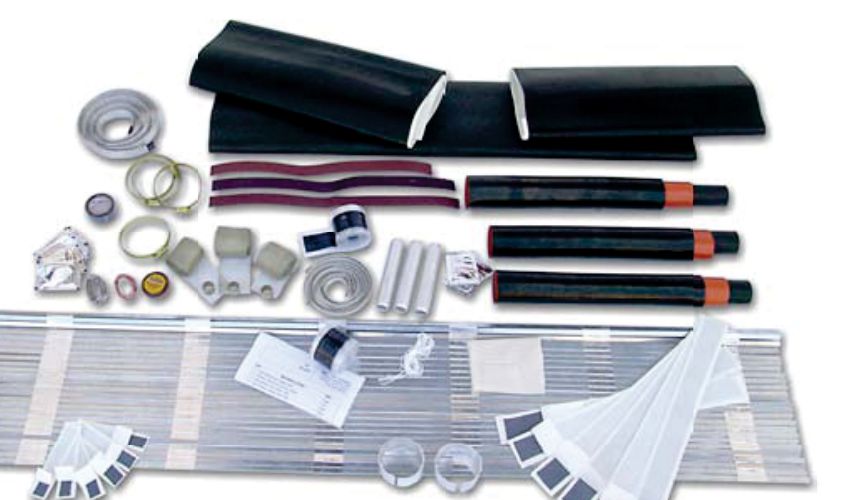

GTJ/1112 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | Inline Connector (Barrier Type) | 3 Nos. |
| 2. | Stress Relief Mastic | 6 Nos. |
| 3. | H. S. Oil Barrier Sleeve | 3 Nos. |
| 4. | H. S. Conducting Tubing | 3 Nos. |
| 5. | High Permittivity Void Filler | 1 No. |
| 6. | H. S. Conducting Breakout | 1 No. |
| 7. | Stress Relief Mastic (for S. C.) cut end of XLPE conducting tubing | 6 Pcs. |
| 8. | H. S. Stress Control Tubing | 3 Nos. |
| 9. | H. S. Insulation Tubing | 3 Nos. |
| 10. | H. S. Screened Tubing (Dual Wall Red + conducting) (alternatively separate insulation & conducting tubings) | 3 Nos. |
| 11. | H. S. Compression Tubing | 3 Nos. |
| 12. | Metallic Protection Case / Wraparound Joint Case (alternatively G I mesh tape for mechanical protection) | 1 No. |
| 13. | H. S. Adhesive Lined Side Sleeve | 2 Nos. |
| 14. | Insulating Wedge EPDM | 1 No. |
| 15. | Tinned Copper Mesh Tape | 3 Nos. |
| 16. | Tinned Copper Earth Braid | 1 No. |
| 17. | Constant Force Spring Clamp / (Solder + Flux) | 1 Set. |
| 18. | Jubilee Clamps | 6 Nos. |
| 19. | H. S. Outer Jacketing Tubing (Centre) | 1 No. |
| 20. | Plumbing Metal | 1 Set. |
| Installation aids & accessories (part of standard kit) | ||
| • | Nylon String for Cutting XLPE Insulation | 1 No. |
| • | Aloxite Emery Tape | 3 Pcs. |
| • | Mopping Cloth | 1 Pc. |
| • | Silicon Grease | 3 Pcs. |
| • | Cleaning Tissue | 6 Pcs. |
| • | Mastic Sealing Tape | 2 Nos. |
| • | Copper Binding Wire | 1 Roll. |
| • | Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GTJ/1112 page.
Dimensions & Drawings

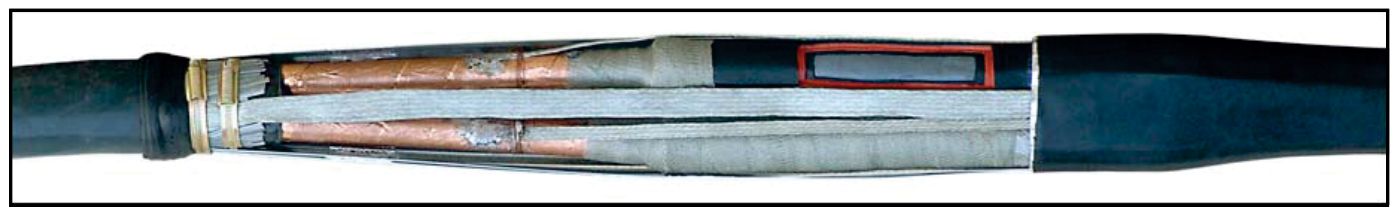

GTJ/1112 joins two different cable constructions in one splice — typically an older paper-insulated lead-covered (PILC) run extended in XLPE — up to 12 kV.
Covered on this page
- Branch Joint, Transition Joint, PILC Joint, Cable Accessories
Features & Benefits
- Kit engineered for PVC outer sheath, XLPE insulation, paper-insulated and lead-sheathed PILC cable construction
- Includes inline connector (barrier type), stress-relief mastic and heat shrink oil-barrier sleeve
- Covers cable, kit and installation-aid components as a complete jointing solution
- Electrical performance: AC withstand 35 kV / 1 minute, DC withstand 48 kV / 30 minutes, lightning impulse withstand 75 kV required and 95 kV typical
- Kit codes GTJ-11 to GTJ-17 for 3x16–35 up to 3x630 sq mm cable
Applications
- PILC-to-XLPE cable transition joints
- Branch joints on MV distribution cable
- PILC cable accessories up to 12 kV
FAQs
Frequently Asked Questions
What is the GTJ Series Heat Shrink Transition Joint Kit used for?
It is used for:
- PILC-to-XLPE cable transition joints
- Branch joints on MV distribution cable
- PILC cable accessories up to 12 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 3x240-300 sq mm cable takes kit GTJ-14.
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
