Pre-Insulated Pipe Sealing Cap for Pipeline Joints

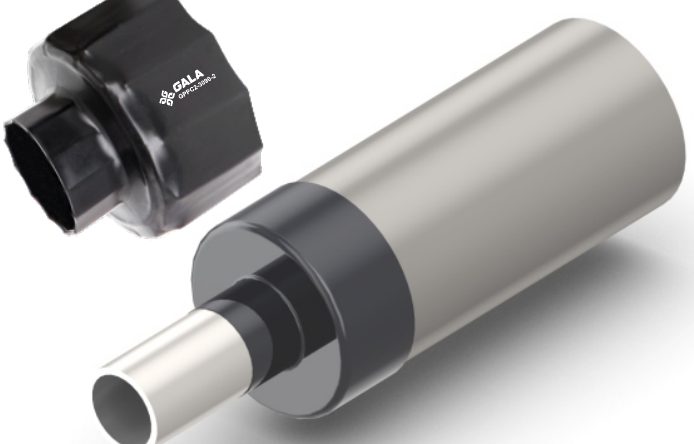

GPPC1 heat shrink caps protect pre-insulated pipeline weld joints with a hot-melt adhesive lining sealed to IP68, 60–178 mm supplied diameter, in single- or double-outlet sizes.
- ASTM D638
- ASTM D570
- ASTM D2671

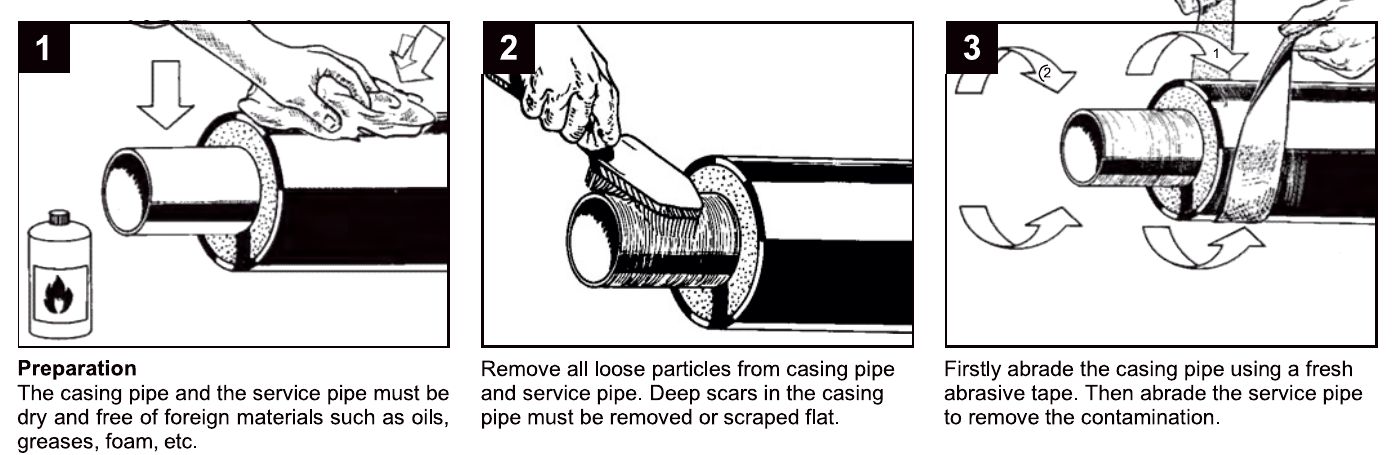

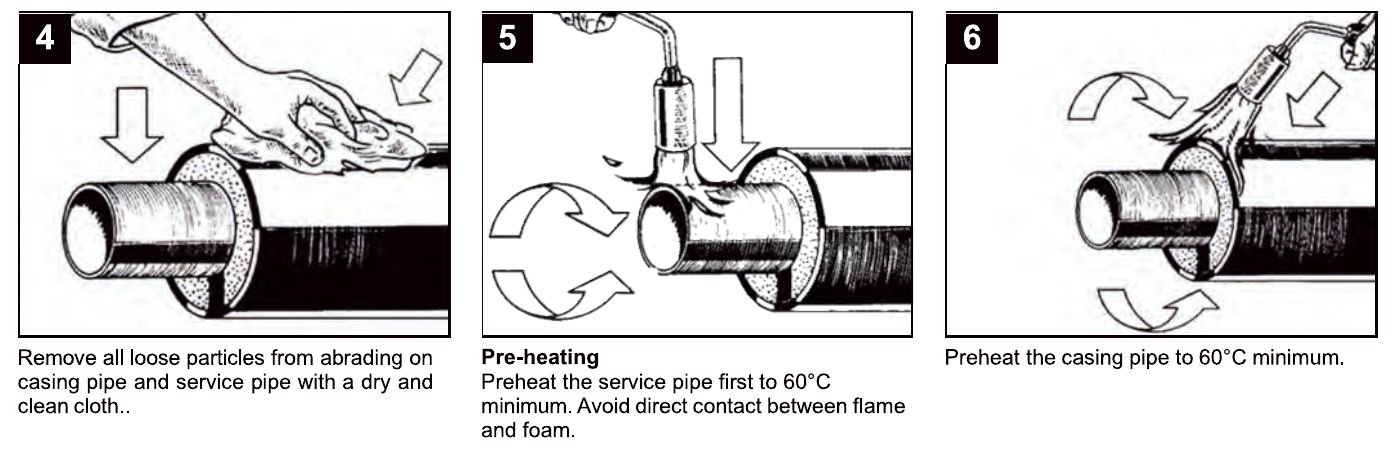

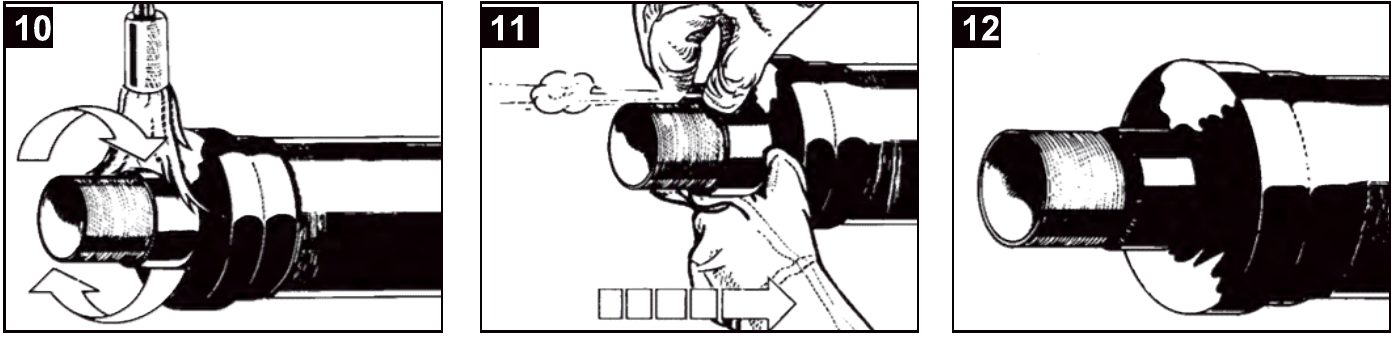

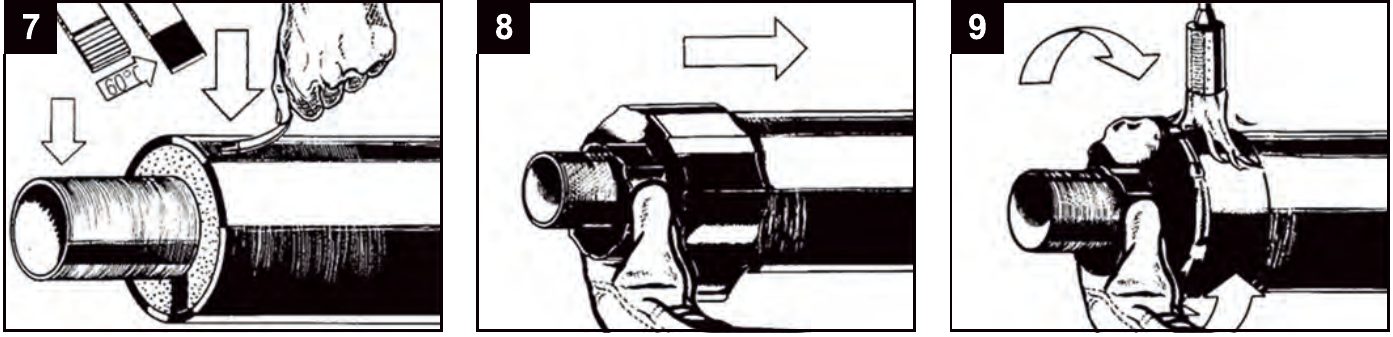

Installation instructions
Full dimensional specifications and technical data, ready to download.
Choose a size
Selection Charts
- D, d
- Internal diameter — D of the body, d of the finger (outlet)
- s / f
- s: as supplied; f: after free recovery
- L, l
- Length — L of the body, l of the finger
- Tb, Tc
- Wall thickness after free recovery — body, finger (±10%)
- Mlb, Mlc
- Mastic length of body, mastic length of finger
| Code | Ds(min.) | Df(max.) | ds(min.) | df(max.) | Ls(min.) | Lf(min.) | ls(min.) | lf(min.) | Tb(±10%) | Tc(±10%) | Mlb(min.) | Mlc(min.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPPC1-1030 | 60 | 30 | 45 | 10 | 70 | 70 | 40 | 50 | 3.2 | 4.5 | 30 | 15 |
| GPPC1-2460-1 | 85 | 60 | 42 | 24 | 70 | 87 | 90 | 108 | 3.4 | 3.3 | 30 | 15 |
| GPPC1-2640-2 | 105 | 61 | 45 | 24 | 70 | 87 | 85 | 108 | 3.4 | 3.3 | 30 | 15 |
| GPPC1-2460-3 | 125 | 61 | 65 | 24 | 75 | 87 | 75 | 108 | 3.4 | 3.3 | 30 | 15 |
| GPPC1-2460-4 | 140 | 60 | 76 | 24 | 70 | 87 | 70 | 108 | 3.4 | 3.3 | 30 | 15 |
| GPPC1-2475-1 | 118 | 75 | 52 | 24 | 65 | 75 | 30 | 40 | 2.5 | 2.3 | 30 | 15 |
| GPPC1-2475-1A | 125 | 75 | 65 | 24 | 65 | 75 | 28 | 40 | 2.5 | 2.3 | 30 | 15 |
| GPPC1-2475-2 | 145 | 75 | 65 | 24 | 55 | 75 | 28 | 40 | 2.5 | 2.3 | 30 | 15 |
| GPPC1-2475-2A | 145 | 75 | 75 | 24 | 55 | 75 | 26 | 40 | 2.5 | 2.3 | 30 | 15 |
| GPPC1-2475-3 | 158 | 75 | 70 | 24 | 55 | 75 | 26 | 40 | 2.5 | 2.3 | 30 | 15 |
| GPPC1-3090-1 | 165 | 90 | 100 | 30 | 80 | 85 | 37 | 50 | 2.3 | 2.5 | 30 | 15 |
| GPPC1-3090-2 | 185 | 90 | 67 | 30 | 65 | 85 | 32 | 50 | 2.3 | 2.5 | 30 | 15 |
| GPPC1-3090-3 | 185 | 90 | 105 | 30 | 80 | 85 | 34 | 50 | 2.3 | 2.5 | 30 | 15 |
| GPPC1-3090-4 | 207 | 90 | 105 | 30 | 70 | 85 | 34 | 50 | 2.3 | 2.5 | 30 | 15 |
| GPPC1-4090-1 | 156 | 90 | 95 | 40 | 90 | 72 | 60 | 118 | 3.7 | 4.5 | 30 | 15 |
| GPPC1-4090-2 | 178 | 90 | 105 | 40 | 95 | 72 | 55 | 118 | 3.7 | 4.5 | 30 | 15 |
| GPPC1-225300 | 570 | 300 | 420 | 225 | 55 | 80 | 45 | 90 | 3.5 | 3.6 | 30 | 15 |
Source: GALA Pre-Insulated Pipe Sealing Cap catalogue sheet, Issue 2, March 2024.

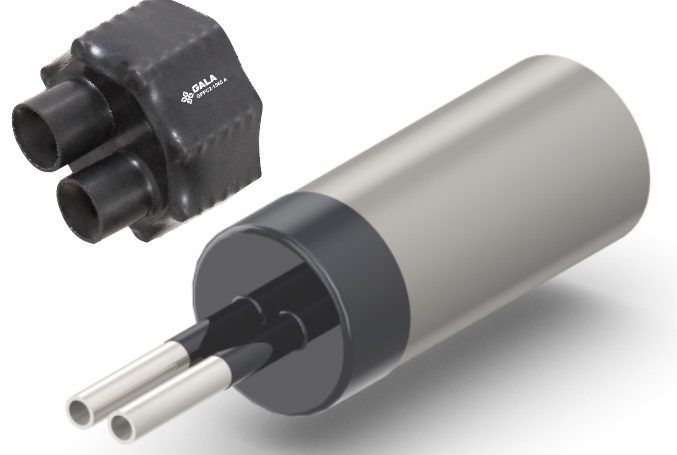

GPPC2 — double outlet (dimensions per finger)
| Code | Ds(min.) | Df(max.) | ds(min.) | df(max.) | Ls(min.) | Lf(min.) | ls(min.) | lf(min.) | Tb(±10%) | Tc(±10%) | Mlb(min.) | Mlc(min.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPPC2 1565S | 115 | 65 | 36 | 15 | 60 | 80 | 40 | 54 | 2.2 | 2.0 | 30 | 15 |
| GPPC2 1565 | 125 | 65 | 45 | 15 | 60 | 80 | 40 | 54 | 2.2 | 2.0 | 30 | 15 |
| GPPC2 1565A | 152 | 65 | 52 | 15 | 60 | 80 | 40 | 54 | 2.2 | 2.0 | 30 | 15 |
| GPPC2 1565AA | 156 | 65 | 45 | 15 | 60 | 80 | 40 | 54 | 2.2 | 2.0 | 30 | 15 |
| GPPC2 2075 | 175 | 75 | 60 | 20 | 80 | 105 | 45 | 80 | 3.1 | 2.9 | 30 | 15 |
| GPPC2 2075A | 200 | 75 | 60 | 20 | 80 | 105 | 45 | 80 | 3.1 | 2.9 | 30 | 15 |
| GPPC2 24135 | 235 | 135 | 68 | 24 | 80 | 160 | 50 | 70 | 2.8 | 2.5 | 30 | 15 |
| GPPC2 55175 | 265 | 175 | 86 | 55 | 80 | 130 | 50 | 65 | 3.5 | 3.5 | 30 | 15 |
| GPPC2 55175A | 300 | 175 | 100 | 55 | 80 | 130 | 50 | 65 | 3.5 | 3.5 | 30 | 15 |
| GPPC2 55175AA | 355 | 180 | 155 | 60 | 80 | 130 | 50 | 65 | 3.5 | 3.5 | 30 | 15 |
Source: GALA Pre-Insulated Pipe Sealing Cap catalogue sheet, Issue 2, March 2024.
Material properties
Technical Specification
| Properties | Value | Standard |
|---|---|---|
| Tensile Strength | 18 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 450% (min.) | ASTM D638 |
| Water Absorption | 0.1% (max.) | ASTM D570 |
| Hardness | 45 Shore D (min.) | ASTM D2240 |
| Accelerated Ageing | (150 °C for 168 hrs.) | ASTM D2671 |
| Ultimate Elongation | 320% (min.) | ASTM D638 |
| Low Temp. Flexibility on 25mm Mandrel (-40 °C for 4 hrs.) | No Cracking | ASTM D3111 |
| Continuous Temperature Limit | -40 °C to 125 °C | IEC 216 |
| Adherence to the casing | 100 (max.) (@23 °C 9N/cm) | Annex B |
| Adherence to the coating (3lpp) | 100 (max.) (@23 °C 9N/cm) | Annex B |
| Shear Resistance (Adhesive) | 7N/cm² (min.) (@23 °C 10mm/min.) | DIN 30672 |
| Softening Point (Adhesive) | 130 °C (min.) | ASTM E28 |
| Adhesion / Peel Strength | 14N/cm (min.) | ISO 21809-3 |
Source: GALA Pre-Insulated Pipe Sealing Cap catalogue sheet, Issue 2, March 2024.
Dimensions & Drawings
Pre-insulated Pipe Sealing Cap is a heat shrink cap with a hot-melt adhesive/mastic lining, used to seal and protect the joints of pipelines and other substrates. The caps are manufactured from cross-linked polyolefin.

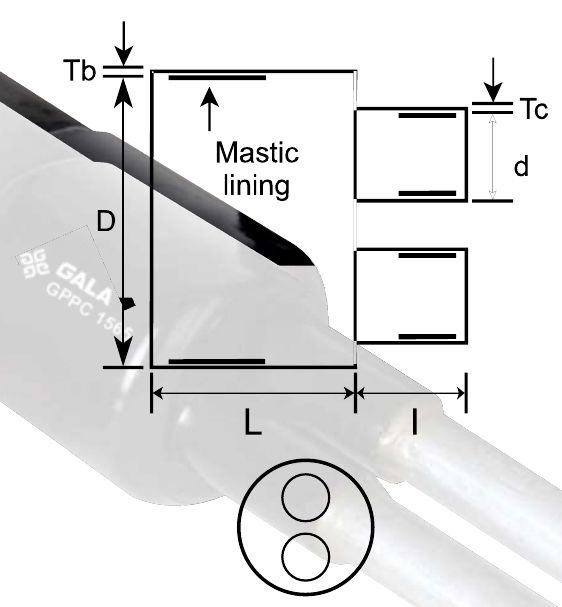

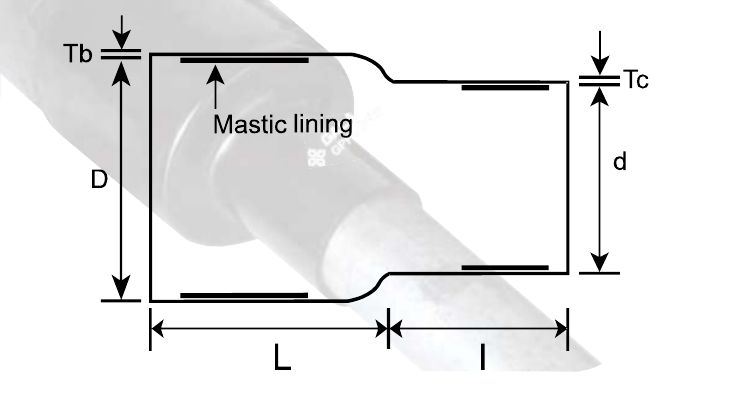

D, d: internal diameter; s: as supplied; f: after free recovery; L, l: length. Tb, Tc: thickness after free recovery; AL: adhesive length.
