Bushing Boot & Bellows for Switchgear
Bushing Boots are non-tracking elastomeric insulating boots used with terminations, fitting over switchgear bushings to insulate right-angle or straight bushing connections up to 25 kV; Bellows are flexible PVC components used for cable ducting in low-voltage switchgear and transformer industry.
- ANSI C37.20.2
- ASTM D638
- ASTM D2671
More datasheets
Full dimensional specifications and technical data, ready to download.
Choose a size
Selection Chart
| Product code | Total length | ID - bushing entry | ID - cable entry | Thickness |
|---|---|---|---|---|
| GSBB - 1 | 230 mm (min.) | 50.5 mm (min.) | 17.5 mm (min.) | 2.5 mm (min.) |
| GSBB - 2 | 230 mm (min.) | 50.5 mm (min.) | 22.0 mm (min.) | 2.5 mm (min.) |
Source: GALA BUSHINGBOOT and Reusable Insulating Boot catalogue sheet, Issue 2, January 2024.

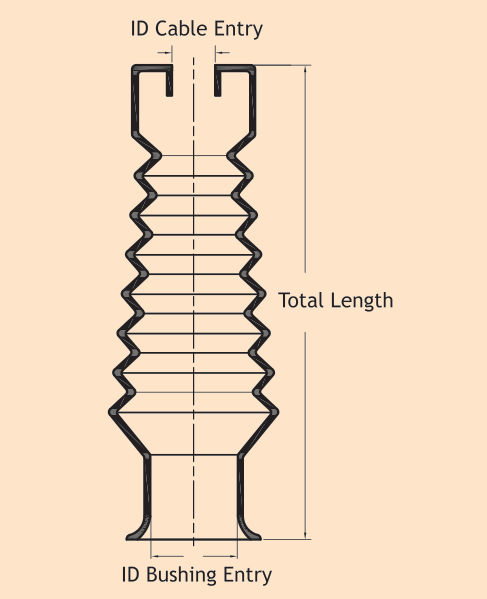

Dimensions & Drawings

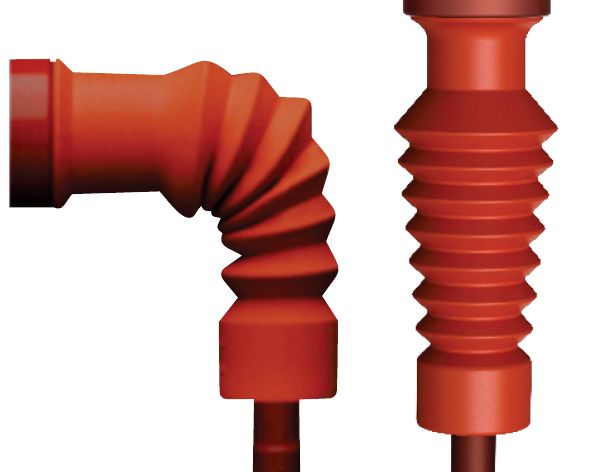

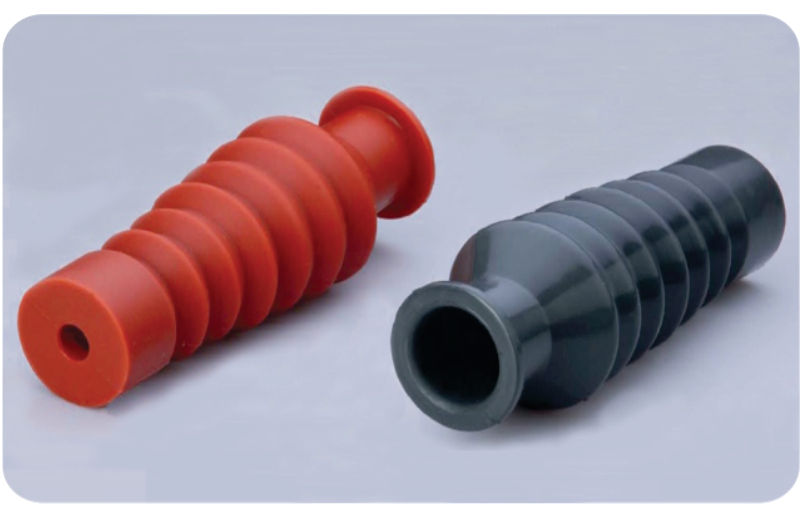

Bushing Boots are non-tracking elastomeric insulating boots used with terminations, fitting over switchgear bushings to insulate right-angled or straight connections up to 25 kV and enhance phase-to-phase and phase-to-earth insulation, protecting against flashover or induced surges.

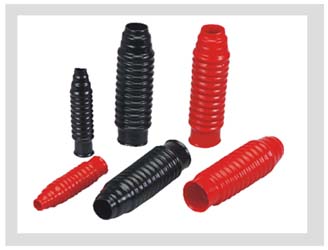

Bellows, in flexible PVC, handle cable ducting in low-voltage switchgear and transformer equipment, in shapes and sizes matched to different mounting options.
Covered on this page
- Bushing Boot - BUSHINGBOOT
- SYSTEM SPECIFICATION
- Bushing Boot - BUSHINGBOOT
Features & Benefits
- Non-tracking elastomeric material (Bushing Boot)
- Right-angled or straight bushing connection profiles
- Protects against flashover or surges induced in switchgear and transformer boxes
- Bellows made from flexible PVC in multiple shapes/sizes with matching mounting options
- Tested to ANSI C 37.20.2 for MV switchgear application up to 36 kV
Applications
- Insulating switchgear and transformer bushing connections up to 25 kV
- Enhancing phase-to-phase and phase-to-earth insulation
- Low-voltage cable ducting in switchgear and transformer enclosures (Bellows)
Standards & Compliance
- ANSI C37.20.2
- ASTM D638
- ASTM D2671
- ASTM D2240
- ASTM D570
- ASTM D149
- ASTM D257
- ASTM D150
- ASTM G-21
- ASTM B-17
FAQs
Frequently Asked Questions
What is the Bushing Boot & Bellows for Switchgear used for?
It is used for:
- Insulating switchgear and transformer bushing connections up to 25 kV
- Enhancing phase-to-phase and phase-to-earth insulation
- Low-voltage cable ducting in switchgear and transformer enclosures (Bellows)
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Which standards and test methods are quoted for it?
These:
- ANSI C37.20.2
- ASTM D638
- ASTM D2671
- ASTM D2240
- ASTM D570
- ASTM D149
- ASTM D257
- ASTM D150
- ASTM G-21
- ASTM B-17
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
