Cable Accessories & Heat Shrinkable Joints (GXOS/E)
GXOS/E-1236 series Class I heat shrinkable termination kit for single-core extruded dielectric, shielded, armoured and unarmoured cable up to 36 kV.
Choose a size
Selection Charts
| System | Cable size(sq. mm) | Indoor kit code | Outdoor kit code |
|---|---|---|---|
| 12 kV | 16 - 50 | GXES-11 | GXOS-11 |
| 12 kV | 70 - 120 | GXES-12 | GXOS-12 |
| 12 kV | 150 - 300 | GXES-13 | GXOS-13 |
| 12 kV | 400 - 630 | GXES-14 | GXOS-14 |
| 12 kV | 800 - 1000 | GXES-15 | GXOS-15 |
| 15–24 kV | 16 - 50 | GXES-21 | GXOS-21 |
| 15–24 kV | 70 - 150 | GXES-22 | GXOS-22 |
| 15–24 kV | 185 - 300 | GXES-23 | GXOS-23 |
| 15–24 kV | 400 - 630 | GXES-24 | GXOS-24 |
| 15–24 kV | 800 - 1000 | GXES-25 | GXOS-25 |
| 36 kV | 25 - 50 | GXES-31 | GXOS-31 |
| 36 kV | 70 - 185 | GXES-32 | GXOS-32 |
| 36 kV | 240 - 500 | GXES-33 | GXOS-33 |
| 36 kV | 630 - 800 | GXES-34 | GXOS-34 |
| 36 kV | 1000 | GXES-35 | GXOS-35 |
12 kV system: 6.6/6.6 kV, 6.35/11 kV. 15–24 kV system: 8.7/15 kV, 11/11 kV, 12.7/22 kV. 36 kV system: 19/33 kV. All kits are supplied with full kit contents for making a termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXOS/E-1236-Series page.
GXOS/E-1236 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 1. | Terminal Lug | 1 Nos. |
| 3. | Heat Shrinkable Adhesive Lined Terminal Sleeve | 1 Nos. |
| 4. | Lug Sealing Tape / Mastic Strip | 1 Strip |
| 5. | Rain Sheds — 12 kV System | 2 Nos. |
| Rain Sheds — 24 kV System | 3 Nos. | |
| Rain Sheds — 36 kV System | 4 Nos. | |
| 6. | Anti Tracking Sleeve | 1 Nos. |
| 7. | Stress Control Sleeve | 1 Nos. |
| 8. | Stress Control Mastic | 1 Strip |
| 9. | Constant Force Spring Roll (Alternatively Solder Tack) | 1 Nos. |
| 10. | Copper Braid for Screen Earthing | 1 Nos. |
| 11. | Worm Drive Clip | 1 Nos. |
| 12. | Adhesive Lined Gland Sleeve (only for armoured cables) | 1 Nos. |
| 13. | Tinned Copper Braid duly fitted with Terminal Lug at One end + Solder block | 1 Nos. |

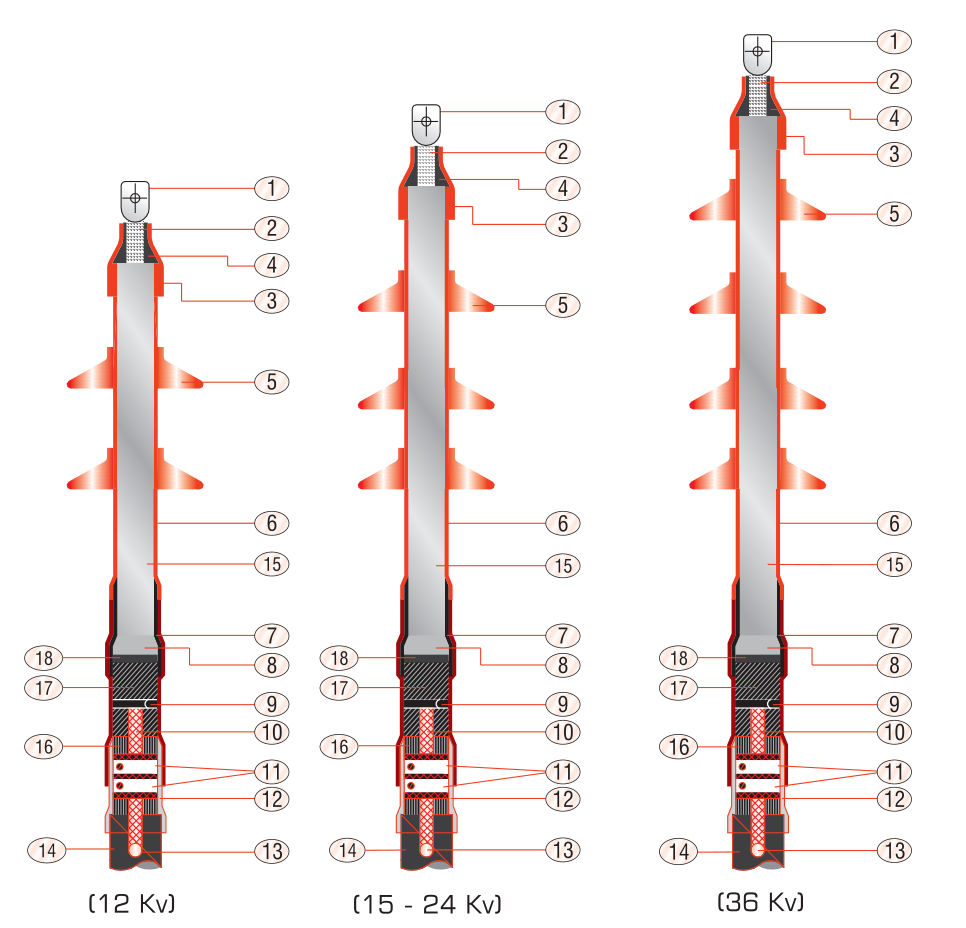

| Cable components (numbers on the drawing) | ||
| 2. | Conductor | |
| 14. | Outer Sheath | |
| 15. | XLPE Insulation | |
| 16. | Armour | |
| 17. | Metal Shied | |
| 18. | Semi-Conducting Screen | |
| Installation aids & accessories (part of the standard kit) | ||
| • | Mastic Sealing Tape | 1 Roll |
| • | Silicone Grease | 1 No. |
| • | Cleaning Tissue | 2 No. |
| • | Nylon String for Cutting XLPE Insulation | 1 No. |
| • | Aloxite Emery Tape | 3 Pc. |
| • | Mopping Cloth | 1 Pc. |
| • | Installation Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GXOS/E-1236-Series page.

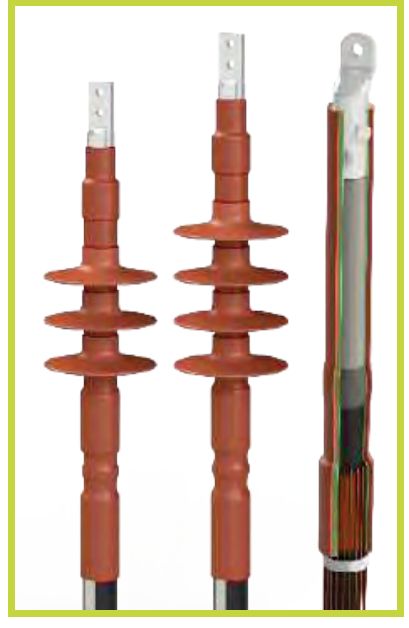

Dimensions & Drawings
GXOS/E-1236 terminates single-core shielded MV cable — where GXO/E covers 3-core constructions, this series is Gala's single-core equivalent, up to 36 kV.
Covered on this page
- Cable Accessories & Heat Shrinkable Joints
- Cable Accessories - GXOS/E - 1236 - Series Heat Shrinkable Terminations Suitable for Single Core XLPE/EPR/PVC Insulated Cables For 36kV
- Accessories and optional items
Features & Benefits
- Heat shrinkable adhesive-lined terminal sleeve, anti-tracking sleeve, stress control sleeve and stress control mastic
- Rain sheds by system voltage: 2 for 12 kV, 3 for 24 kV, 4 for 36 kV
- Constant force spring roll (or solder tack), copper braid for screen earthing and worm drive clip
- Adhesive-lined gland sleeve for armoured cable; tinned copper braid fitted with terminal lug and solder block
- AC dry withstand 35 kV / 50 kV / 75 kV for 1 minute at 12 kV / 15–24 kV / 36 kV system voltage
- DC withstand 48 kV / 96 kV / 144 kV for 1 minute, lightning impulse withstand 75 kV / 125 kV / 170 kV
- Partial discharge at 12.7 kV, 25 kV and 38 kV
- Standard tail lengths 900, 800 and 600mm outdoor and 700, 550 and 450mm indoor for 36 kV, 24 kV and 12 kV
- Indoor rain sheds: none at 12 kV, 1 at 15–24 kV, 2 at 36 kV
- Indoor (GXES) and outdoor (GXOS) kit codes covering 16 to 1000 sq mm cable
Applications

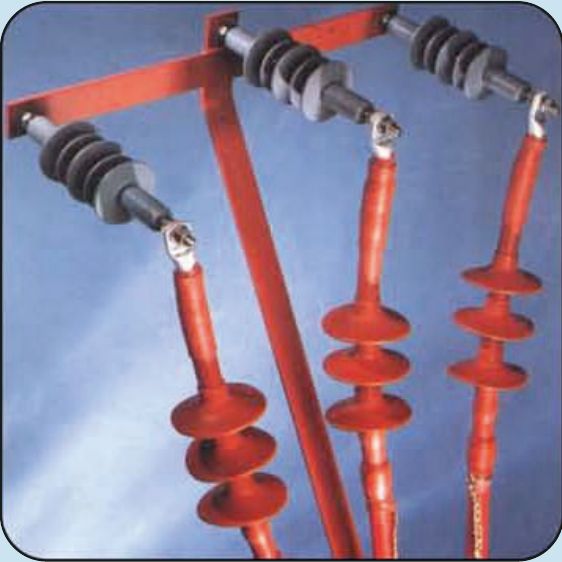

- Single-core shielded MV cable terminations up to 36 kV
- Armoured and unarmoured single-core cable terminations
FAQs
Frequently Asked Questions
What is the Cable Accessories & Heat Shrinkable Joints used for?
It is used for:
- Single-core shielded MV cable terminations up to 36 kV
- Armoured and unarmoured single-core cable terminations
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, on a 15–24 kV system, a 185 - 300 sq mm cable takes GXES-23 (Indoor) or GXOS-23 (Outdoor).
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
