Heat Shrink Coupler for HDPE Pipe Jointing
Heat Shrink Coupler joints sections of corrugated HDPE pipe with a hot-melt adhesive lining sealed to IP68, replacing butt welding, snap-fit or split couplers on water, sewer, drainage and underground cable-duct lines.
- Hot-melt adhesive lining seals to IP68
- ASTM D638
- ASTM D2671
- ASTM D2240

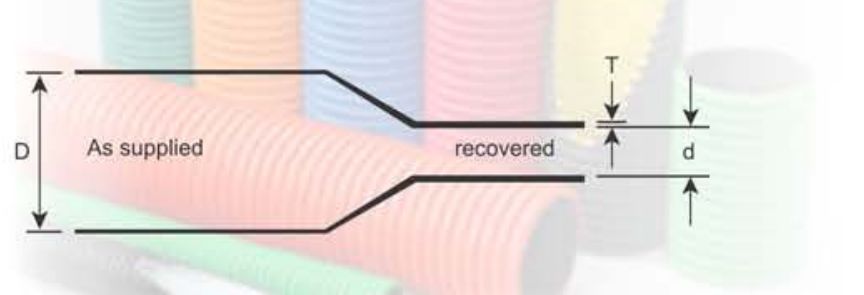

Dimensions & Drawings

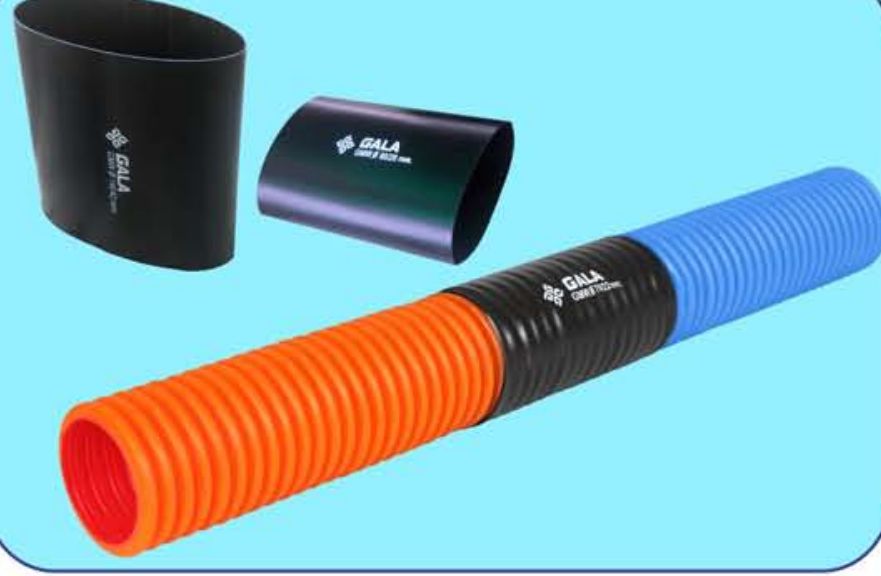

Heat Shrink Coupler is a Tubing suitable to joint Corrugated HDPE pipes, used in Water management, Irrigation, Sanitary, Sewer and Drainage, Construction, Mining industries, Ducting and for underground Cable protection.
These tubes are manufactured from cross-linked polyolefin. Hot melt adhesive lining provides 100% sealing according to IP 68 (Ingress Protection).
It is feasible and the most economic jointing solution compared to Conventional Butt welding or using Snap Fit Coupler or Split coupler.
Covered on this page
- Pipeline / Corrosion Protection Products
- Heat Shrinkable Coupler (for pipe connection)
Features & Benefits
- Hot-melt adhesive lining seals to IP68
- 3:1 shrink ratio covers GMW 70/22 to GMW 863/250 in fewer stocked sizes
- Tensile strength 20 N/mm² min, elongation 350% min (ASTM D638)
- Hardness 45±10 Shore D (ASTM D2240); continuous temperature limit -40°C to +110°C, shrink temperature 125°C (IEC 216)
- Dielectric strength 15 kV/mm min (ASTM D149); volume resistivity 1×10¹⁴ Ω·cm min (ASTM D257)
- Installs in-line with the pipe in wet or dry underground conditions, no special skill required
- Resistant to heat, UV rays, vibration and sand-blasting
- Customised dimensions, length and colour available; Technical Qualification Report QR 1021
Applications
- Water management and irrigation piping
- Sanitary, sewer and drainage lines
- Construction and mining industries
- Underground cable protection ducting
Standards & Compliance
- ASTM D638
- ASTM D2671
- ASTM D2240
- ASTM D570
- ASTM D149
- ASTM D257
- ASTM D150
- IEC 216
- ESI 09-11
- IP68
FAQs
Frequently Asked Questions
What is the Heat Shrink Coupler for HDPE Pipe Jointing used for?
It is used for:
- Water management and irrigation piping
- Sanitary, sewer and drainage lines
- Construction and mining industries
- Underground cable protection ducting
How is it installed?

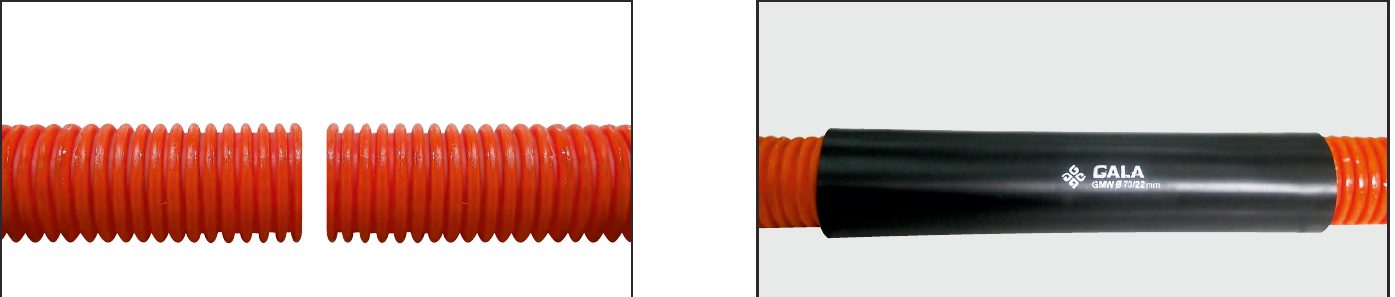

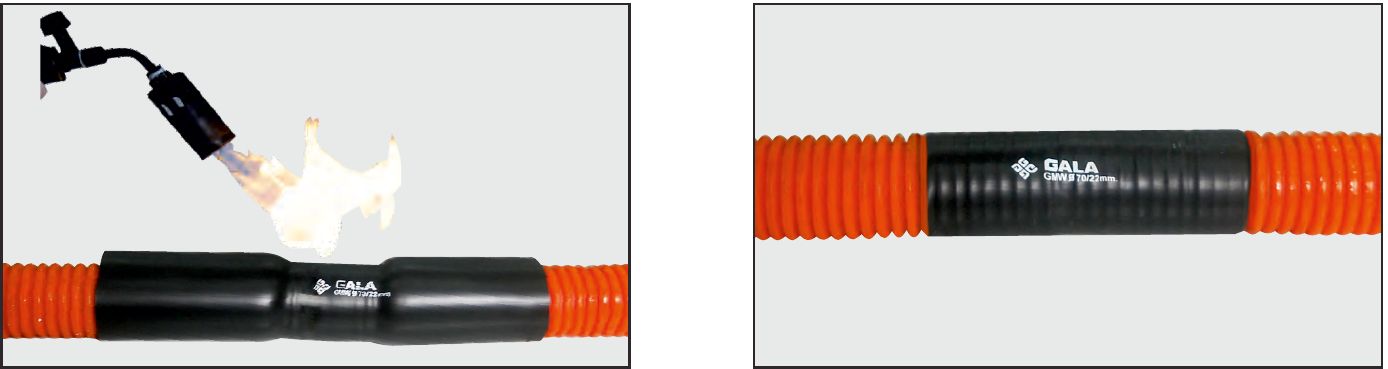

Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. Start at one end and work steadily along to the other.
Which standards and test methods are quoted for it?
These:
- ASTM D638
- ASTM D2671
- ASTM D2240
- ASTM D570
- ASTM D149
- ASTM D257
- ASTM D150
- IEC 216
- ESI 09-11
- IP68
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
