Elastomeric End Seal for CCV/VCV/SSCV

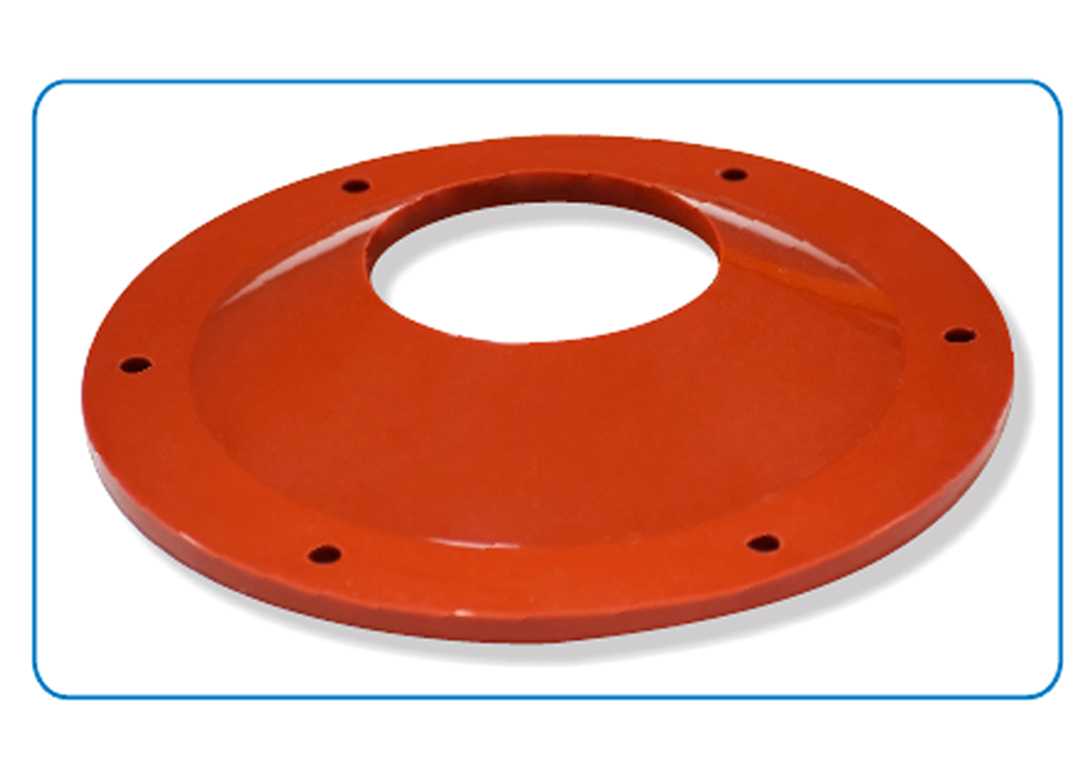

Gala Elastomeric End Seal is a rubber compound seal, used on the exit side of continuous vulcanization (CV) cable lines, that holds curing pressure at the set level and grips the cable during production runs.
- ASTM D149
- ASTM D638
- ASTM D792
Choose a size
Selection Chart
- A
- Overall diameter
- B, C

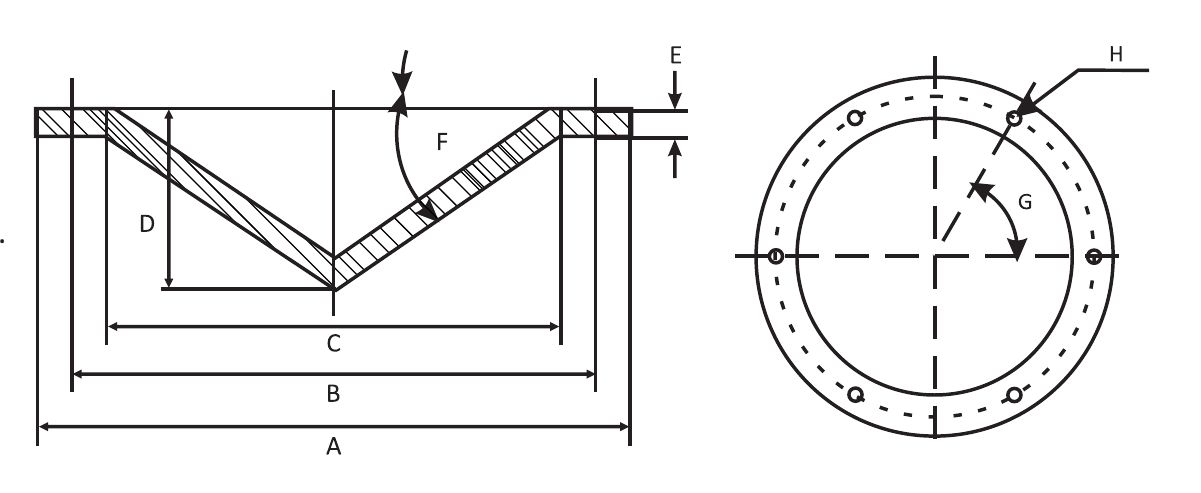

- Nested diameters shown on GSF’s section drawing
- D
- Depth of the cone
- E
- Flange thickness
- F
- Cone wall angle
- G
- Angle between bolt holes
- H
- Bolt hole pattern: six Ø9 holes at 60°
| Gala Code | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F | G | H |
|---|---|---|---|---|---|---|---|---|
| GSES-1 S | 180 | 156 | 129 | 47 | 10 | 30° | 60° | 6x60° Ø9 |
| GSES-1 | 255 | 226 | 195 | 68 | 10 | 30° | 60° | 6x60° Ø9 |
F, G and H are printed under "(mm)" on the sheet; they are an angle, the hole spacing and the hole pattern. Source: GALA CV Gasket / End Seal catalogue sheet, Issue 2, May 2026.
Material properties
Technical Specification
| Test description | Typical value | Test method |
|---|---|---|
| Dielectric Strength | 12 kV/mm (min.) | ASTM D149 |
| Tensile Strength | 5 N/mm² (min.) | ASTM D638 |
| Elongation | 300% (min.) | ASTM D638 |
| Density | 1.23 gm/cm³ | ASTM D792 |
| Hardness | 60 ± 5 Shore A | ASTM D2240 |
| Continuous Operating Temp. | -20 °C to 180 °C | IEC 216 |
Source: GALA CV Gasket / End Seal catalogue sheet, Issue 2, May 2026.
Dimensions & Drawings

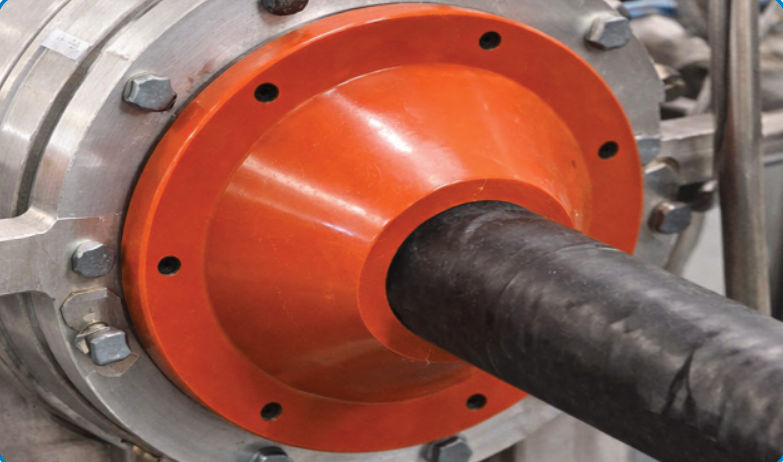

The Elastomeric End Seal, in a specially formulated rubber compound, holds pressure at the required level during the CCV/VCV/SSCV continuous-vulcanization curing process and holds the cable tight through the production run, on both water- and gas-cooled lines.
The sealing unit is opened and closed hydraulically from the control panel, and locked or unlocked manually. GHSGs ship with a factory-applied hot-melt adhesive that seals to the wire and cable jacket.
Covered on this page
- Elastomeric End Seal for CCV / VCV / SSCV - Continuous Vulcanization Tube
Features & Benefits
- Dielectric strength 12 kV/mm min. (ASTM D149)
- Tensile strength 5 N/mm² min., elongation 300% min. (ASTM D638)
- Hardness 60±5 Shore A (ASTM D2240)
- Opens/closes hydraulically, operated from the control panel with manual lock/unlock
- GSES-1S and GSES-1 sizes
- Rubber compound body, harmless to the insulation and sheath surface
- Good temperature and pressure withstandability, good abrasion resistance
Applications

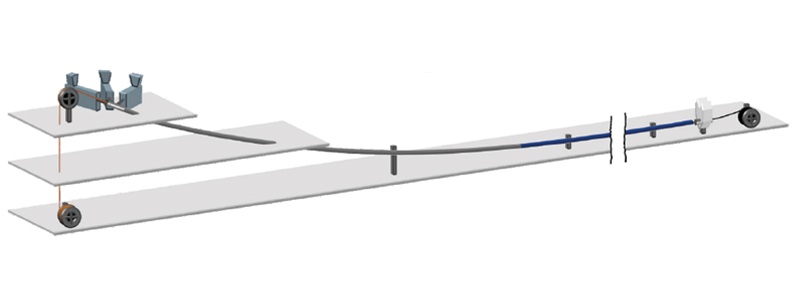

- Holding curing pressure on the exit side of CCV, VCV and SSCV cable lines
- Compatible with water-cooling and gas-cooling CV line systems
Standards & Compliance
- ASTM D149
- ASTM D638
- ASTM D792
- ASTM D2240
- IEC 216
FAQs
Frequently Asked Questions
What is the Elastomeric End Seal for CCV/VCV/SSCV used for?
It is used for:
- Holding curing pressure on the exit side of CCV, VCV and SSCV cable lines
- Compatible with water-cooling and gas-cooling CV line systems
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions, and the key above it says what each column means. If you are not sure which fits, send the dimensions you are working to with the form below.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D149
- ASTM D638
- ASTM D792
- ASTM D2240
- IEC 216
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
