Anti-Tracking Cable Breakout (Insulcore-NT)
Insulcore Non-Tracking Cable Breakout seals the crutch of 3-core PVC/PILC cable rated up to 36 kV, in non-tracking cross-linked polyolefin.
DatasheetSpec table
Product line
Cable Joints & Terminations — MV Splicing and Termination Kits
Heat-shrink joint and termination kits for MV cable, 1.1 kV to 36 kV, sold as itemised component sets — joints, terminations, breakouts, boots and rain sheds — for PILC and XLPE/EPR cable.
35 products in the Cable Joints & Terminations range — 34 with downloadable datasheets, 12 with dimensional spec tables.
Kits span the GLT, GPO/E, GXO/E, GPS, GXS and GTJ series, from the GLT-1100 at 1.1/3.3 kV up to the GXO/E-3336 and GPO/E-3336 at 36 kV, including PILC-to-XLPE transition joints (GTJ series). Every kit is a named set of components — breakouts, rain sheds, stress-control and oil-barrier sleeves, mastic and sealing tape — not a single moulded part.
The range also carries LV and semi-conductive cable breakouts, anti-tracking breakouts, 2-way and 3-way heat-shrink boots, right-angle boots, creepage extension skirts (rain sheds), a cable repair wrap-around sleeve, and heat-shrink moulded shapes for custom joint geometries.
Boots for cable-harness connector joints sit alongside the MV kits: the Y-type boot is type-tested to SAE AS81765/1, and chemical, solvent and oil resistance is to MIL-I-81765A.
Browse every Cable Joints & Terminations datasheet in the datasheet library →
Showing all 35 products
Cable Joints & Terminations products

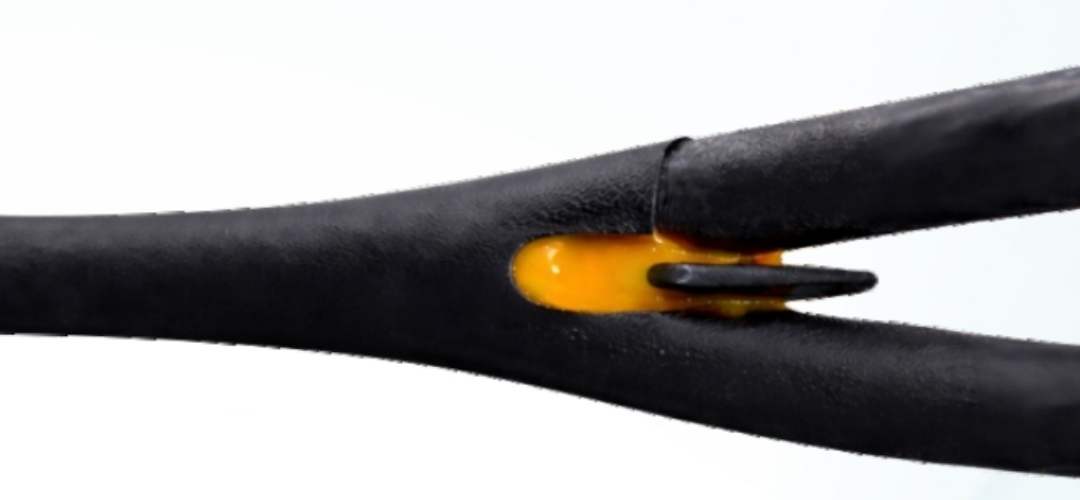

Branch Off Clip
A hot-melt-adhesive-lined clip that separates and seals two cable cores emerging from a joint, used in telecom cable jointing; the adhesive melts as the outer sleeve shrinks.
Spec table
Cable Accessories & Heat Shrinkable Joints (GXOS/E)
GXOS/E-1236 series Class I heat shrinkable termination kit for single-core extruded dielectric, shielded, armoured and unarmoured cable up to 36 kV.
Datasheet
Cable Joints (GXLT / GXS / GPS Series)
Heat shrinkable, waterproof straight-through and transition joint kits connecting MV power cable, spanning PVC, XLPE and PILC construction from 1.1 kV to 36 kV.
Datasheet
Cable Repair Wrap-Around Sleeve (Insulsleeve)
Insulsleeve is a cross-linked polyolefin sleeve that wraps around a cable or pipe, zips shut with a stainless steel channel, then heat shrinks — no need to cut the cable to install it.
DatasheetSpec table
Cable Terminations (GLT / GXO / GPO Series)
Heat shrinkable termination kits that seal and stress-grade the cut end of an MV power cable at a switchgear bushing, transformer or overhead line, from 1.1 kV up to 36 kV.
Datasheet
Components for Cable Joints & Terminations
Components that go into power cable accessories — breakouts, rain sheds, boots, repair sleeves, insulation and stress control tubes, mastic tape, springs, clamps and earthing braid.
Datasheet
Creepage Extension Skirt / Rain Shed (INSULSHED)
Insulshed increases the surface creepage distance of an outdoor cable termination's cores without increasing tail length, and helps prevent rainy-season tracking faults.
Datasheet
GTJ Series Heat Shrink Transition Joint Kit
GTJ/1112-Series heat shrinkable transition joint kit for connecting PILC cable to XLPE cable — branch joints, transition joints and PILC cable accessories — on systems up to 12 kV.
Datasheet

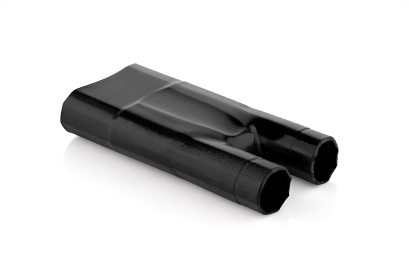

Heat Shrink 2-Way Boot
GHS2-N cross-linked polyolefin boot seals a two-way branch on a cable harness, dielectric strength ≥20 kV/mm and tensile strength ≥15MPa, flame retardant.
DatasheetSpec table

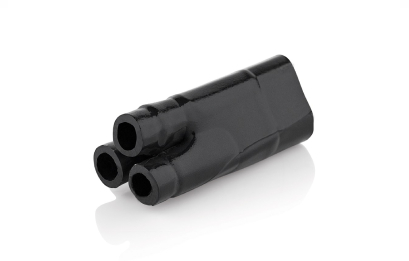

Heat Shrink 3-Way Boot
Cross-linked polyolefin boot seals a three-way branch on a cable harness, dielectric strength ≥20 kV/mm and tensile strength ≥15MPa, flame retardant.
DatasheetSpec table
Heat Shrink Boot — Right Angle Type
Cross-linked polyolefin boot for a 90° connector joint on a cable harness, giving insulation and strain relief where the cable exits at a right angle.
Datasheet

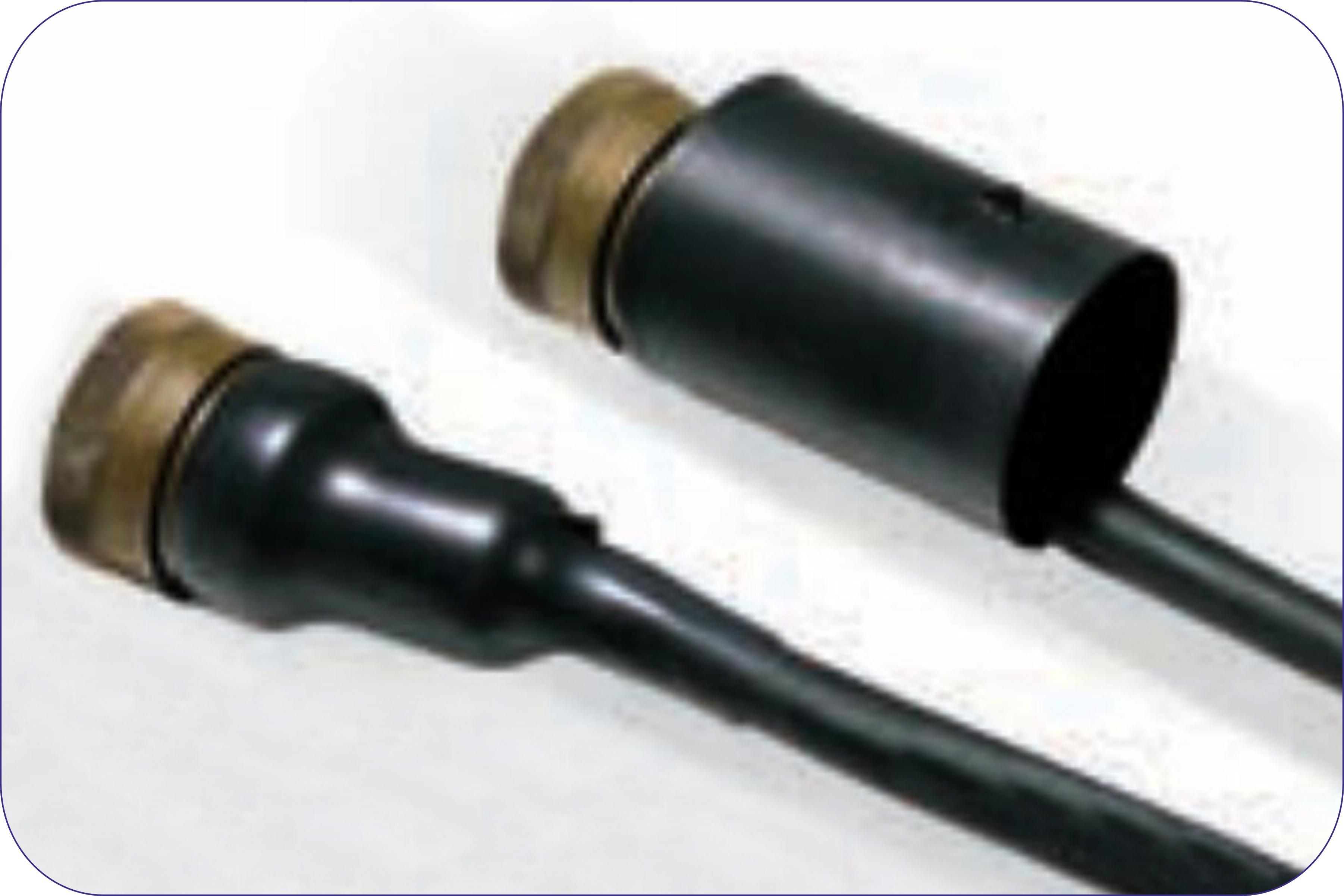

Heat Shrink Boots for Cable Harness Connectors — Military Spec
Cross-linked polyolefin boot for connector joints in cable harnesses, conforming to military specifications. Straight, right-angle, lipped, Y-type, 2-way and 3-way geometries across the GHSB, GHRB, GHYB, GHS2-N and GHS3-N ranges; the Y-type boot is type tested to SAE AS81765/1. Shrinks at 120°C, flame retardant and self-extinguishing.
DatasheetSpec table
Heat Shrink Cable Joint Kit GPS/2436 — 24/36 kV PILC
GPS/2436 series heat shrinkable, waterproof straight-through joint kit for 3-core screened PILC cable up to 33 kV, covering both the 24 kV and 36 kV series.
Datasheet
Heat Shrink Cable Joint Kit GXS/1236 kV — up to 36 kV XLPE/PVC
GXS/1236 kV series heat shrinkable, waterproof straight-through joint kit for 3-core XLPE/PVC insulated cable, rated up to 36 kV.
Datasheet
Heat Shrink Cable Joint Kit GXSS-1236 — Single Core, up to 36 kV
GXSS/1236 series heat shrinkable, waterproof straight-through joint kit for single-core extruded dielectric, shielded, armoured or unarmoured cable, spanning 12 kV, 15–24 kV and 36 kV usage.
Datasheet
Heat Shrink Cable Repair Sleeve
An adhesive-lined, wraparound heat shrink sleeve in cross-linked polyolefin that repairs a cable jacket without disconnecting the cable, sealing to IP68.
Datasheet
Heat Shrink Outdoor Termination Kit GPO/E-1524 — 24 kV
GPO/E-1524 series Class I heat shrinkable outdoor termination kit for 3-core screened, paper insulated, lead sheathed or armoured PILC cable, up to 24 kV.
Datasheet

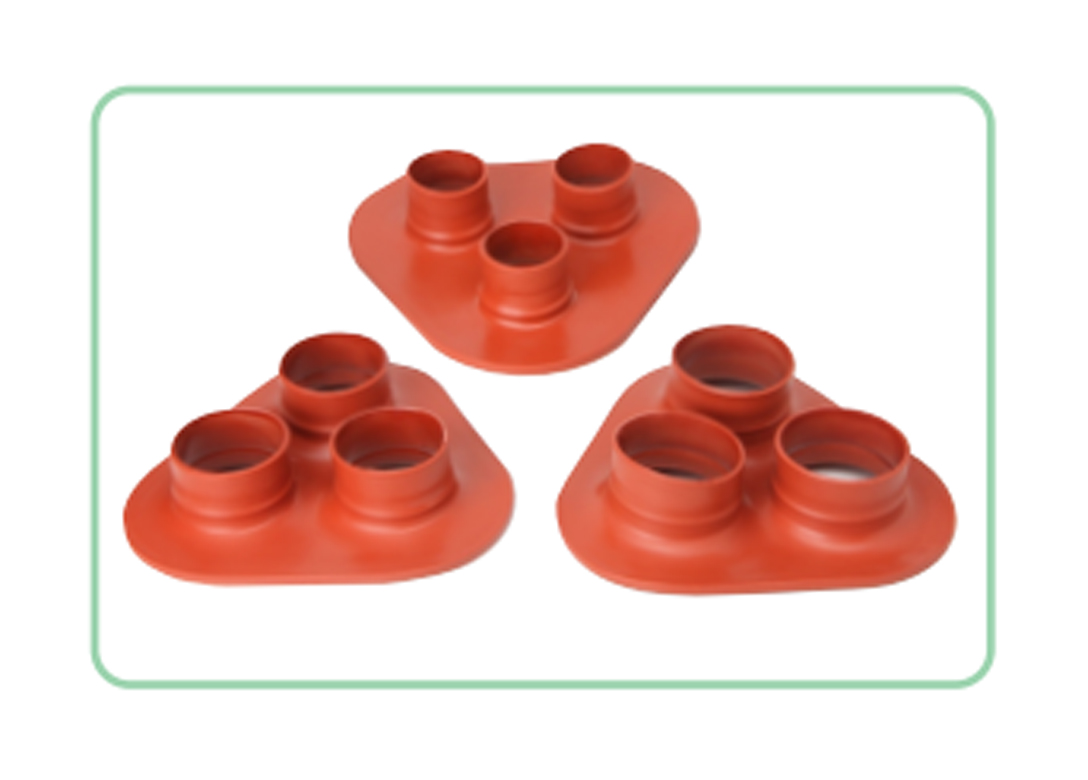

Heat Shrink Rain Shed — Tri-Core
The GHSG tri-core rain shed increases the surface creepage distance of a 3-core cable termination without increasing tail length, factory-fitted with hot melt adhesive.
DatasheetSpec table
Heat Shrink Rain Shed (Insulshed)
Insulshed increases the surface creepage distance of cable termination cores without increasing tail length, and helps prevent tracking-related faults during the rainy season.
Datasheet
Heat Shrink Termination Kit GLT-1100 — 1.1/3.3 kV
GLT-1100 series heat shrinkable termination kit for 1, 2, 3, 3½ and 4-core extruded (XLPE/PVC) and paper-insulated cable, armoured or unarmoured, rated 1.1 kV and 3.3 kV.
DatasheetSpec table
Heat Shrink Termination Kit GPO/E-1112 — 12 kV PILC
GPO/E-1112 series Class I heat shrinkable termination kit for 3-core paper insulated lead covered (PILC), armoured or screened cable, rated 12 kV.
Datasheet
Heat Shrink Termination Kit GPO/E-3336 — 33/36 kV PILC
GPO/E-3336 series Class I heat shrinkable termination kit for 3-core screened, lead sheathed or armoured, paper insulated PILC cable, covering the 33 kV and 36 kV classes.
Datasheet
Heat Shrink Termination Kit GXO/E-1112 — 12 kV XLPE/EPR
GXO/E-1112 series heat shrinkable termination kit for 3-core XLPE/EPR insulated cable rated 12 kV, with non-tracking weather-resistant tubing and stress control tubing.
Datasheet
Heat Shrink Termination Kit GXO/E-1524 — 24 kV XLPE/EPR
GXO/E-1524 series Class I heat shrinkable termination kit for 3-core extruded dielectric, shielded, armoured and unarmoured cable rated 24 kV (Umax 24 kV).
Datasheet
Heat Shrink Termination Kit GXO/E-3336 — 36 kV XLPE/EPR
GXO/E-3336 series Class I heat shrinkable termination kit for 3-core XLPE/EPR insulated cable, shielded, armoured or unarmoured, rated 36 kV — the top of the GXO/E range.
Datasheet
Heat Shrink Transition Joint GTJ/1112 kV — PILC to XLPE, 12 kV
GTJ/1112 kV series heat shrinkable transition joint kit designed for connecting paper insulated lead covered (PILC) cable to XLPE cable, for systems up to 12 kV.
Datasheet
Heat Shrink Transition Joint GTJ/2436 kV — PILC to XLPE, 24/36 kV
GTJ/2436 kV series heat shrinkable transition joint designed for jointing XLPE cable to PILC cable, covering the 24 kV and 36 kV voltage classes in one kit.
DatasheetSpec table
Heat Shrinkable Cable Joint Kit GPS/1112 — 11 kV PILC
GPS/1112 series heat shrinkable, waterproof straight-through joint kit for 3-core paper insulated lead covered (PILC) cable rated 11 kV (Umax 12 kV).
Datasheet
Heat Shrinkable Cable Joints & Terminations
Index of Gala's heat shrinkable cable joint kits (GXLT/GXS/GPS/GTJ) and termination kits (GLT/GXO/E/GPO/E) for PVC, XLPE, EPR and PILC cable from 1.1 kV to 36 kV.
Datasheet
Heat Shrinkable Moulded Shapes
Category index of Gala's heat shrinkable moulded shapes: cable end caps, cable breakouts, rain sheds, right-angle/straight boots, military boots and anode caps.
Datasheet
Heat Shrinkable Termination — Soloterm
Soloterm is Gala's heat shrinkable termination for indoor and outdoor use on polymeric cable up to 33 kV, using an integrated varistor stress-control system.
Datasheet
Low Voltage Cable Breakout (Insulcore-LV)
Insulcore-LV cable breakout seals the crutch of 2, 3, 4, 5, 6 or 7-core PVC, XLPE, rubber or PILC cable rated up to 3.3 kV, to IP68.
DatasheetSpec table
MV Cable Joints — Cable Splicing Kit
GXLT/GPLT series heat shrinkable, waterproof straight-through joint kit for 1, 2, 3 or 4-core extruded (XLPE/PVC) and paper-insulated MV cable, armoured or unarmoured, rated 1.1 kV and 3.3 kV.
DatasheetSpec table
Semi-Conductive Cable Breakout (INSULCORE)
Insulcore Semi-Conductive Cable Breakout seals the crutch of PILC belted cable and provides individual screening to each core, in cross-linked semi-conductive polyolefin.
DatasheetSpec table
