Heat Shrink Tape (Bustape) - MV Busbar Insulation
Bustape is a heat-shrinkable polyolefin tape for insulating and protecting medium-voltage busbar connections, including bends and irregular geometries where heat shrink tubing cannot be used.
- ANSI C37.20.2
- IEC 216
- ASTM D638
Choose a size
Selection Chart

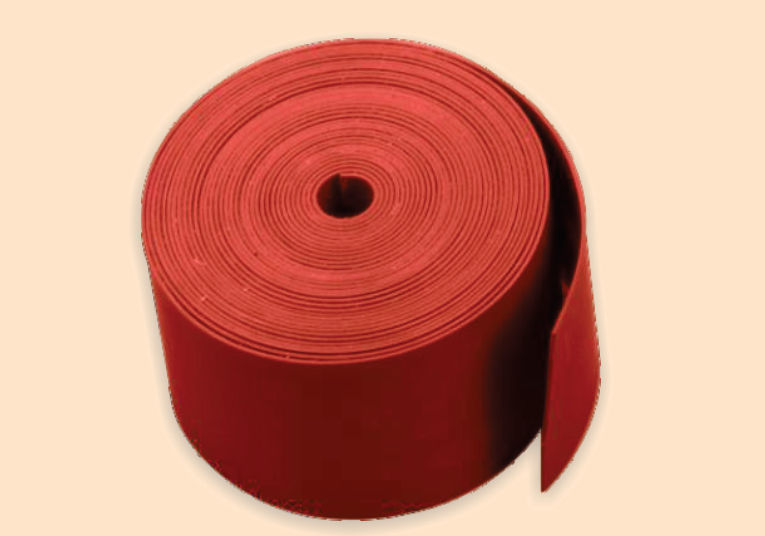

| Gala Code | Roll Width(min.) | Roll Length(min.) | Thickness(mm) |
|---|---|---|---|
| GMT-2L | 50.0 mm | 15.0 m | 1.0 ± 0.10 |
Source: GALA BUSTAPE Heat Shrink Tape catalogue sheet, Issue 2, January 2024.
Material properties
Technical Specification
| Test description | Recorded value | Test method |
|---|---|---|
| Physical | ||
| Tensile Strength | 10.5 N/mm² (min.) | ASTM D638 |
| Ultimate Elongation | 300% (min.) | ASTM D638 |
| Water Absorption | 0.5% (max.) | ASTM D570 |
| Density | 1.20 ± 0.2 gm/cm³ | ASTM D792 |
| Hardness | 45 ± 10 Shore D | ASTM D2240 |
| Thermal | ||
| Accelerated Ageing | 120 °C for 500 hrs | ASTM D2671 |
| Tensile Strength | 10 N/mm² (MPa) (min.) | ASTM D638 |
| Ultimate Elongation | 250% (min.) | ASTM D638 |
| Low Temp. Flexibility (-40 °C for 4 hrs) | No Cracking | ASTM D2671 |
| Heat Shock (250 °C for 30 min.) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125 °C | IEC 216 |
| Continuous Temp. Limit | -40 to +115 °C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 22 kV/mm (min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm (min.) | ASTM D257 |
| Dielectric Constant | 5 (max.) | ASTM D150 |
Source: GALA BUSTAPE Heat Shrink Tape catalogue sheet, Issue 2, January 2024.
Bustape is a conformable, tough, waterproof tape with an adhesive coating that bonds across a wide temperature range, purpose-built for insulating and protecting medium-voltage busbar connections where tubing cannot be used — bends and irregular geometries.

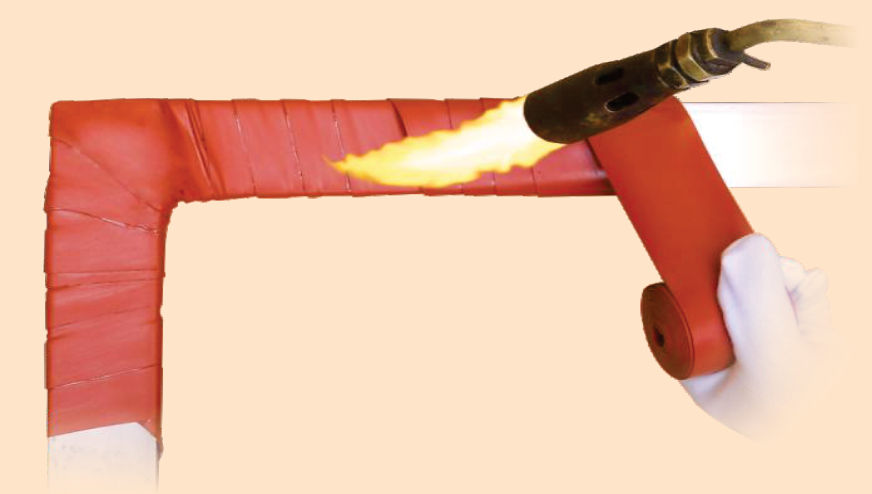

The shrinking action squeezes the adhesive into surface irregularities as the tape conforms to contours, forming an effective seal. After shrinking, the imprint is permanent and solvent-resistant.
Covered on this page
- Heat Shrink Tape - Switchgear Insulation Products
- HEAT SHRINK TAPE - BUSTAPE
Features & Benefits
- Very conformable, tough, waterproof tape with a special adhesive coating that bonds well to most surfaces over a wide temperature range
- Shrinking action conforms to contours and squeezes the adhesive into all surface irregularities, forming an effective seal
- Halogen-free and anti-tracking
- Meets ANSI C37.20.2 for MV switchgear applications up to 36 kV
- Reduces busbar clearance requirements
- Technical Qualification Report: QR 1020
- Gala Code GMT-2L: 50.0mm min. roll width, 15.0m min. roll length, 1.0mm ± 0.10 thickness
Applications

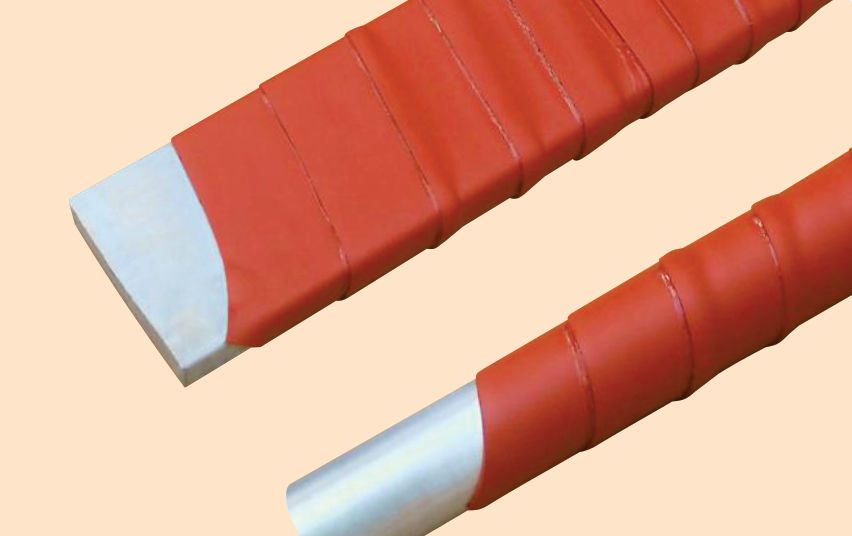

- Insulating and protecting MV busbar connections up to 36 kV
- Bends and irregular busbar geometries where heat shrink tubing cannot be used
- Insulating, anti-corrosive and mending work at the bending part
- Protection against accidental flash-over
Standards & Compliance
- ANSI C37.20.2
- IEC 216
- ASTM D638
- ASTM D570
- ASTM D792
- ASTM D2240
- ASTM D2671
- ASTM D149
- ASTM D257
- ASTM D150
- ASTM D2303
- ESI 09-11
FAQs
Frequently Asked Questions
What is the Heat Shrink Tape (Bustape) used for?
It is used for:
- Insulating and protecting MV busbar connections up to 36 kV
- Bends and irregular busbar geometries where heat shrink tubing cannot be used
- Insulating, anti-corrosive and mending work at the bending part
- Protection against accidental flash-over
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ANSI C37.20.2
- IEC 216
- ASTM D638
- ASTM D570
- ASTM D792
- ASTM D2240
- ASTM D2671
- ASTM D149
- ASTM D257
- ASTM D150
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
