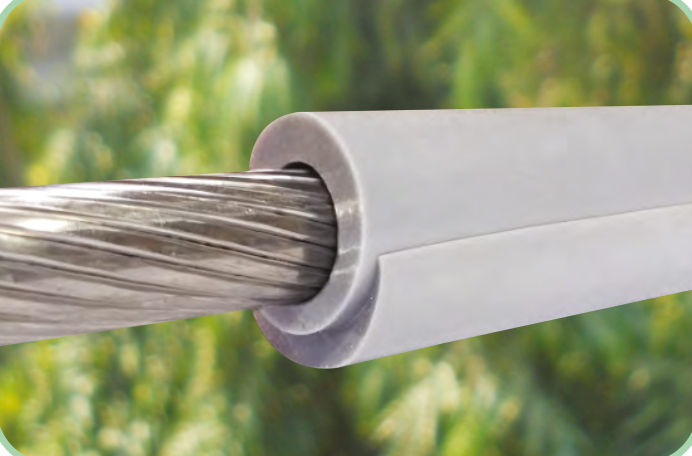

Silicone Overhead Line Cover – Self-Locking (GSOC Series)
A self-locking silicone cover that field-installs over bare overhead conductors, giving phase-to-phase and phase-to-ground insulation plus bird and animal protection across four voltage classes from 12 kV to 765 kV.
- ASTM D-638
- ASTM D-570
- ASTM D-2671

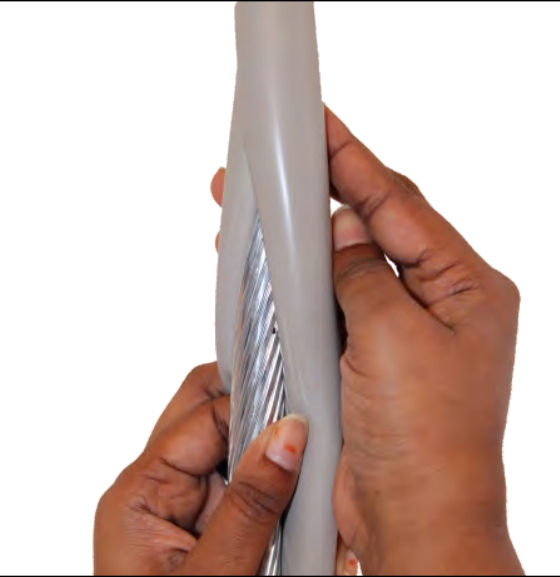

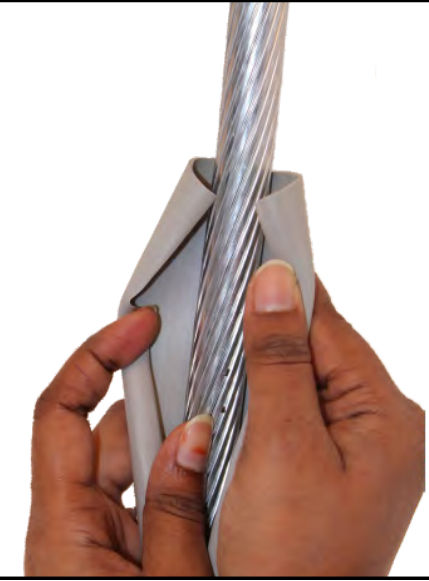

Installation instructions
Full dimensional specifications and technical data, ready to download.
Choose a size
Selection Charts
| Gala Code | Conductor Dia.(mm) | Thickness(mm) | Packaging(Mtr./Roll) |
|---|---|---|---|
| GSOC-M-15 | upto 15 | 2.0 | 15 |
| GSOC-M-20 | upto 20 | 2.0 | 15 |
| GSOC-M-24 | upto 24 | 2.0 | 15 |
| GSOC-M-28 | upto 28 | 2.0 | 15 |
| GSOC-M-32 | upto 32 | 2.0 | 15 |
| GSOC-M-38 | upto 38 | 2.0 | 15 |
Source: GALA Silicone Overhead Line Cover catalogue sheet, Issue 2, March 2026.
GSOC-H — 2.7 mm wall
| Gala Code | Conductor Dia.(mm) | Thickness(mm) | Packaging(Mtr./Roll) |
|---|---|---|---|
| GSOC-H-15 | upto 15 | 2.7 | 15 |
| GSOC-H-20 | upto 20 | 2.7 | 15 |
| GSOC-H-24 | upto 24 | 2.7 | 15 |
| GSOC-H-28 | upto 28 | 2.7 | 15 |
| GSOC-H-32 | upto 32 | 2.7 | 15 |
| GSOC-H-38 | upto 38 | 2.7 | 15 |
Source: GALA Silicone Overhead Line Cover catalogue sheet, Issue 2, March 2026.
GSOC-H3 — 3.0 mm wall
| Gala Code | Conductor Dia.(mm) | Thickness(mm) | Packaging(Mtr./Roll) |
|---|---|---|---|
| GSOC-H3-15 | upto 15 | 3.0 | 15 |
| GSOC-H3-20 | upto 20 | 3.0 | 15 |
| GSOC-H3-24 | upto 24 | 3.0 | 15 |
| GSOC-H3-28 | upto 28 | 3.0 | 15 |
| GSOC-H3-32 | upto 32 | 3.0 | 15 |
| GSOC-H3-38 | upto 38 | 3.0 | 15 |
Source: GALA Silicone Overhead Line Cover catalogue sheet, Issue 2, March 2026.
GSOC-EH — 5.0 mm wall
| Gala Code | Conductor Dia.(mm) | Thickness(mm) | Packaging(Mtr./Roll) |
|---|---|---|---|
| GSOC-EH-15 | upto 15 | 5.0 | 15 |
| GSOC-EH-20 | upto 20 | 5.0 | 15 |
| GSOC-EH-24 | upto 24 | 5.0 | 15 |
| GSOC-EH-28 | upto 28 | 5.0 | 15 |
| GSOC-EH-32 | upto 32 | 5.0 | 15 |
| GSOC-EH-38 | upto 38 | 5.0 | 15 |
Self-fusing silicone tape: 63.5 mm (width) × 0.76 mm (thickness). The quantity of tape required depends on the conductor size. Source: GALA Silicone Overhead Line Cover catalogue sheet, Issue 2, March 2026.
Material properties
Technical Specification
| Properties | Test method | Typical value |
|---|---|---|
| Physical | ||
| Tensile Strength | ASTM-D-638 | 7 N/mm² (Min.) |
| Elongation | ASTM-D-638 | 300% (Min.) |
| Water Absorption | ASTM-D-570 | 0.5 (Max) |
| Low Temp. Install at 0 °C | - | Installable without difficulty |
| Thermal | ||
| Air Ageing | ASTM-D-2671 | 150 °C for 168 hrs. |
| Tensile Strength | ASTM-D-638 | 3.5 N/mm² (Min.) |
| Elongation | ASTM-D-638 | 150% (Min.) |
| Electrical | ||
| Volume Resistance | ASTM-D-257 | 1x10¹³ ohm cm (Min) |
| Tracking and Erosion Resistance | ASTM-D-2303 | No tracking or erosion to top surface or flame failure after 1 hr. at 2.5 kV · 1 hr. at 2.75 kV · 1 hr. at 3.0 kV · 20 min. at 3.25 kV |
Source: GALA Silicone Overhead Line Cover catalogue sheet, Issue 2, March 2026.
GSOC field-installs over bare conductors with no special tool, giving phase-to-phase and phase-to-ground protection from bird and animal contact across four voltage classes: GSOC-M to 12 kV, GSOC-H/H3 to 36 kV, GSOC-EH to 765 kV.
Optional self-fusing silicone tape (63.5 mm x 0.76 mm) applies over the cover for added insulation; quantity depends on conductor size.
Covered on this page
- Overhead Line Cover - Silicone - Self-locking
Features & Benefits
- No special installation tool required
- UV and ozone resistance
- Tracking resistance
- Good dielectric strength
- Highly flexible silicone tubing for easy field application
- Flame retardant
- Does not require further derating of conductors
- Four voltage classes: GSOC-M (upto 12 kV), GSOC-H/H3 (upto 36 kV), GSOC-EH (upto 765 kV)
- Optional self-fusing silicone tape for added insulation
Applications
- Phase-to-phase and phase-to-ground insulation on bare overhead conductors
- Bird and animal contact protection on bare overhead conductors
- Insulation protection for leads and jumpers on overhead lines
- Field-installed insulation enhancement on conductors rated up to 765 kV
Standards & Compliance
- ASTM D-638
- ASTM D-570
- ASTM D-2671
- ASTM D-149
- ASTM D-257
- ASTM D-2303
FAQs
Frequently Asked Questions
What is the Silicone Overhead Line Cover used for?
It is used for:
- Phase-to-phase and phase-to-ground insulation on bare overhead conductors
- Bird and animal contact protection on bare overhead conductors
- Insulation protection for leads and jumpers on overhead lines
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D-638
- ASTM D-570
- ASTM D-2671
- ASTM D-149
- ASTM D-257
- ASTM D-2303
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
