Heat Shrink Termination Kit GPO/E-3336 — 33/36 kV PILC
GPO/E-3336 series Class I heat shrinkable termination kit for 3-core screened, lead sheathed or armoured, paper insulated PILC cable, covering the 33 kV and 36 kV classes.
Choose a size
Selection Charts
| Cable size(sq. mm) | Outdoor kit code | Indoor kit code |
|---|---|---|
| 35-70 | GPO-31 | GPE-31 |
| 95-150 | GPO-32 | GPE-32 |
| 185-300 | GPO-33 | GPE-33 |
| 400 | GPO-34 | GPE-34 |
All kits are supplied with full kit contents for making a termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-3336-Series page.
GPO/E-3336 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 2. | Terminal Lug | 3 Nos. |
| 3. | Lug Sealing Tape/Mastic | 3 Strips |
| 4. | Heat Shrinkable Adhesive Lined Terminal Sleeve | 3 Nos. |
| 5. | Heat Shrinkable Oil barrier Sleeve | 3 Nos. |
| 6. | Heat Shrinkable Non Tracking Weather Resistant Tubing | 3 Nos. |
| 7. | Stress Control Tubing | 3 Nos. |
| 8. | Glass Cushion Tape | 1 Roll. |
| 9. | Heat Shrinkable Belting Oil Barrier Sleeve | 1 No. |
| 10. | Worm Drive Clips (Optional) | 2 Nos. |
| 11. | Earthing Plumb (Connection of Lead Sheath to Armour) | 1 Set. |
| 12. | Tinned Copper Brand (Main Earthing) | 1 No. |
| 13. | Stress Control Mastic | 3 Strips |
| 14. | Rain Sheds | 9 Nos. |
| 15. | Insulaton Shield Continuting (Small Copper Braid + Copper Wire) | 1 Set. |
| 16. | Heat Shrinkable Conducting Breakout | 1 No. |

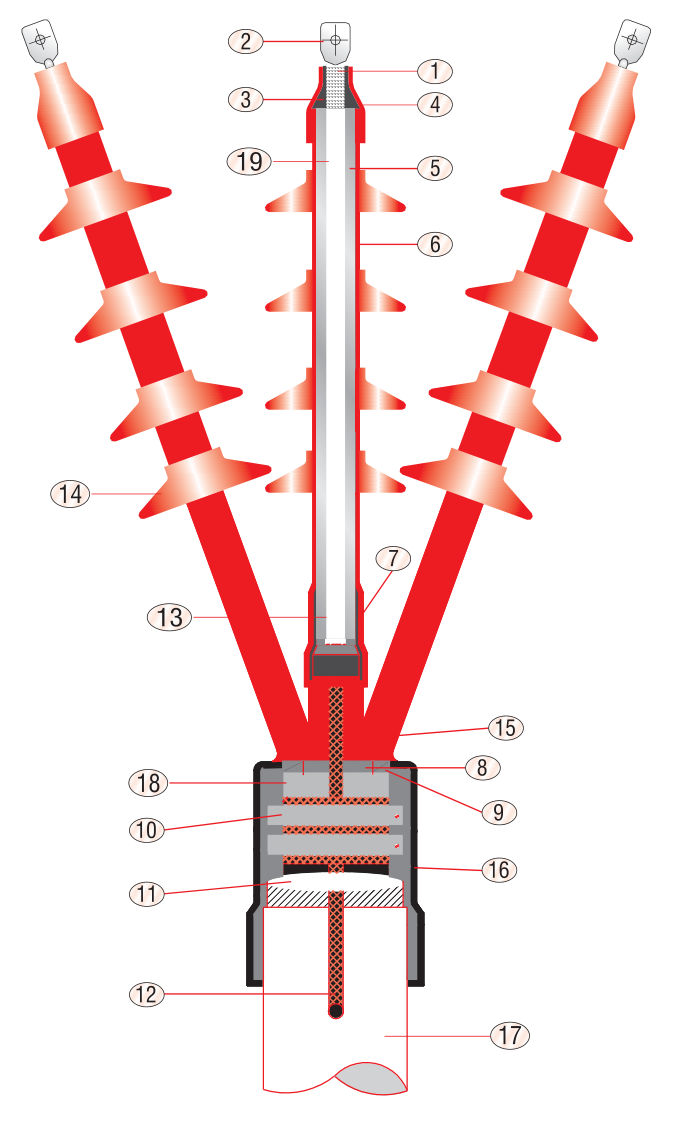

| Cable components (numbers on the drawing) | ||
| 1. | Conductor | |
| 17. | Outer Sheath | |
| 18. | Lead Sheath | |
| 19. | Paper Insulated Core | |
| Installation aids & accessories (part of the standard kit) | ||
| • | Mastic Sealing Tape | 1 Roll. |
| • | Cleaning Solvent | 1 Bottle. |
| • | Emery Sheet | 1 No. |
| • | Mopping Cloth | 1 Pc. |
| • | Installation Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-3336-Series page.
Dimensions & Drawings
GPO/E-3336 terminates PILC cable at the top of Gala's GPO/E range, covering both the 33 kV and 36 kV voltage classes in one kit family.
Covered on this page
- Accessories and optional items
Features & Benefits
- Terminal lug and lug sealing tape/mastic
- Heat shrinkable adhesive-lined terminal sleeve
- Heat shrinkable oil barrier sleeve
- Non-tracking weather-resistant tubing and stress control tubing
- Glass cushion tape, belting oil barrier sleeve, optional worm drive clips
- Electrical performance: AC dry withstand 75 kV / 1 minute, DC withstand 144 kV / 30 minutes, lightning impulse withstand above 170 kV
- Earthing plumb connecting lead sheath to armour, tinned copper braid main earthing and heat shrinkable conducting breakout
- Standard tail length 600mm outdoor and 450mm indoor; indoor kits supplied without rain sheds
- Outdoor (GPO-31 to GPO-34) and indoor (GPE-31 to GPE-34) kit codes for 35 to 400 sq mm cable
Applications
- Terminating 3-core screened, lead-sheathed PILC cable up to 36 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Termination Kit GPO/E-3336 used for?
It is used for:
- Terminating 3-core screened, lead-sheathed PILC cable up to 36 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 185-300 sq mm cable takes GPO-33 (Outdoor) or GPE-33 (Indoor).
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
