Cold Shrink End Cap
Cold Shrink End Cap is an EPDM rubber cable end cap, factory-expanded on a removable core, that seals against water and moisture ingress without tools, sized 10 mm to 80 mm.
- ASTM D-412
- ASTM D-624C
- ASTM G-21
.jpg)
.jpg)
Installation instructions
Full dimensional specifications and technical data, ready to download.
Choose a size
Selection Chart
- Ds (min.)
- Minimum internal diameter as supplied
- Df (max.)
- Maximum internal diameter after free recovery
- Lf (min.)
- Minimum length after free recovery
- Tf (min.)
- Minimum wall thickness after free recovery
- Application range
- Cable outside diameter the cap fits
| Code No. | Ds(min.) | Df(max.) | Lf(min.) | Tf(min.) | Application Range |
|---|---|---|---|---|---|
| GCCE - 01 | 25 | 12 | 60 | 3.3 | 13 - 20 |
| GCCE - 02 | 35 | 16 | 75 | 3.4 | 17 - 30 |
| GCCE - 03 | 45 | 22 | 80 | 3.4 | 23 - 38 |
| GCCE - 04 | 55 | 22 | 80 | 3.4 | 23 - 48 |
| GCCE - 05 | 90 | 45 | 100 | 3.4 | 46 - 80 |
D: diameter · s: as supplied · f: after free recovery. Source: GALA Cold Shrink End Cap catalogue sheet, Issue 1, March 2025.
Material properties
Technical Specification
| Properties | Test Methods | Typical Value |
|---|---|---|
| Colour | Visual | Black |
| 300% Modulus | ASTM D-412 | 3.3 MPa |
| Tensile Strength | ASTM D-412 | 9.6 MPa |
| Ultimate Elongation | ASTM D-412 | 750% |
| Die C Tear | ASTM D-624C | 26.3 kN/m |
| Fungus Resistance | ASTM G-21 | 28 days exposure, no growth |
Source: GALA Cold Shrink End Cap catalogue sheet, Issue 1, March 2025.

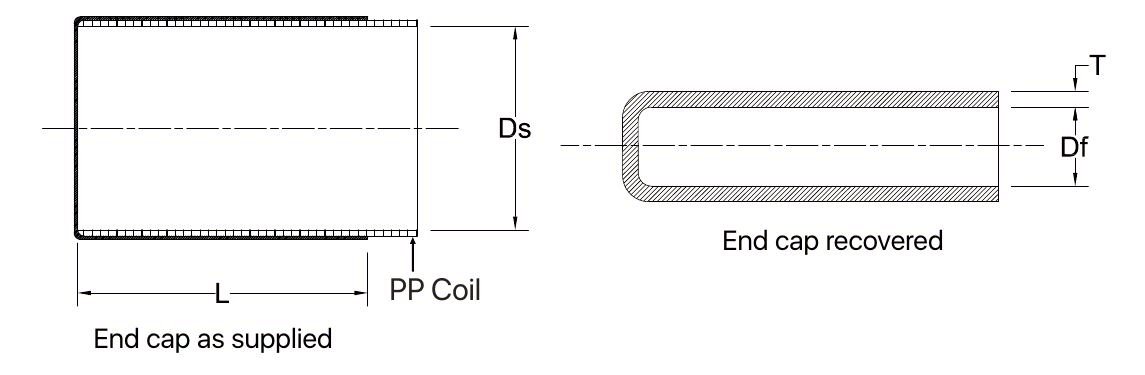

Dimensions & Drawings

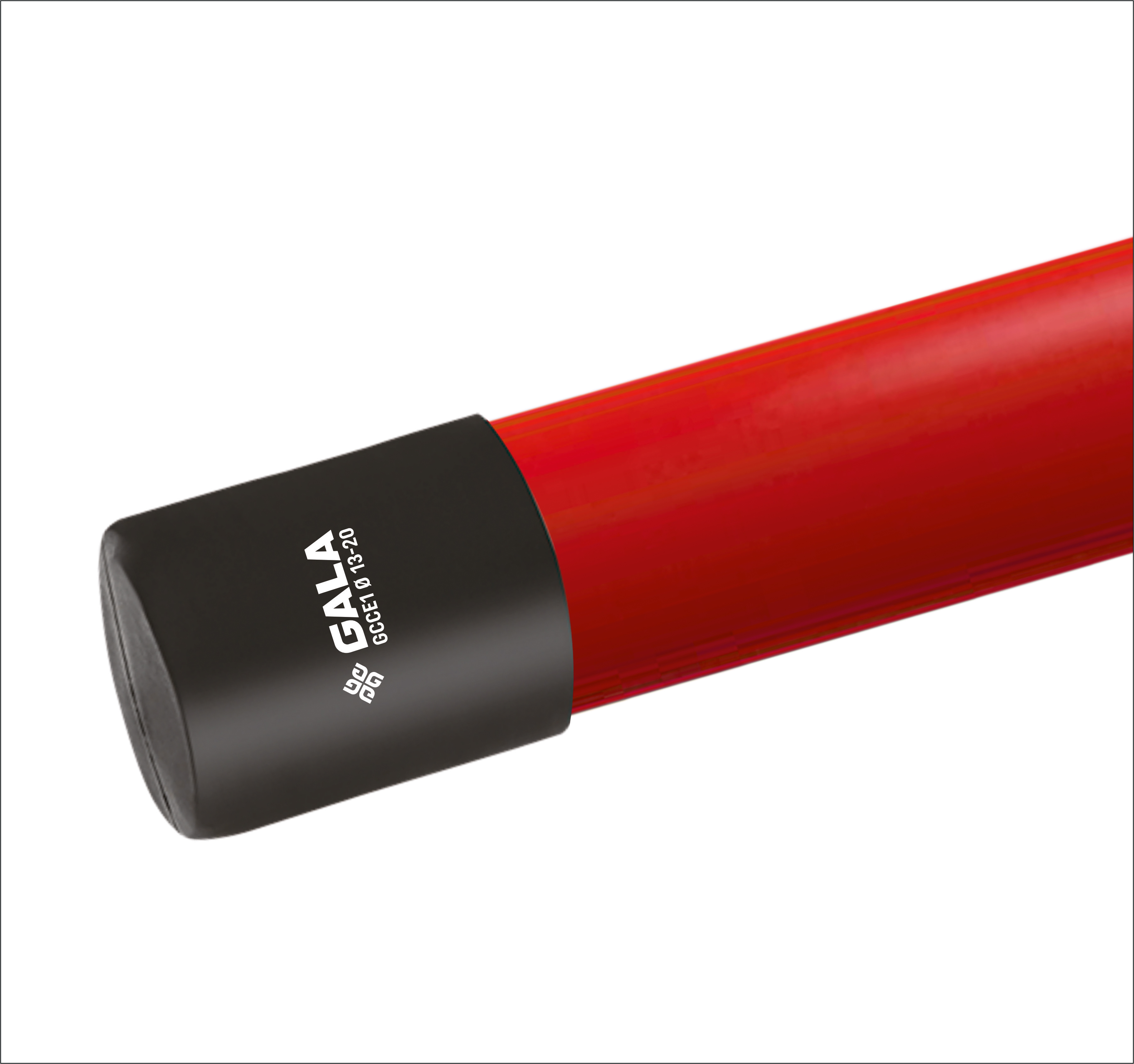

Compatible with the most commonly used cable jackets: XLPE, PVC, PILC or rubber sheathed cable.
Close-ended, tubular rubber caps, factory expanded and loaded onto a removable core. Position over the cable end, remove the core, and the cap provides a reliable environmental seal. Different sizes accommodate a wide size range.
Features & Benefits
- No tools required — installs by pulling the removable core
- GCCE-01 to GCCE-05 cover application range 13-80 mm
- EPDM rubber, compatible with XLPE, PVC, PILC and rubber-sheathed jackets
- Operating temperature range -40°C to 105°C
- Water-resistant seal, retains resiliency over time
- Resists ozone, fungus, acids and alkalis
Applications
- Sealing cable ends against water and moisture ingress
- Compatible with XLPE, PVC, PILC and rubber-sheathed cable jackets
Standards & Compliance
- ASTM D-412
- ASTM D-624C
- ASTM G-21
FAQs
Frequently Asked Questions
What is the Cold Shrink End Cap used for?
It is used for:
- Sealing cable ends against water and moisture ingress
- Compatible with XLPE, PVC, PILC and rubber-sheathed cable jackets
How do I choose the right size?
Measure the outside diameter of the cable and choose the code whose "Application Range" covers it. For example, GCCE - 03 fits a cable of 23–38 mm. Where two ranges overlap, either code fits.
How is it installed?

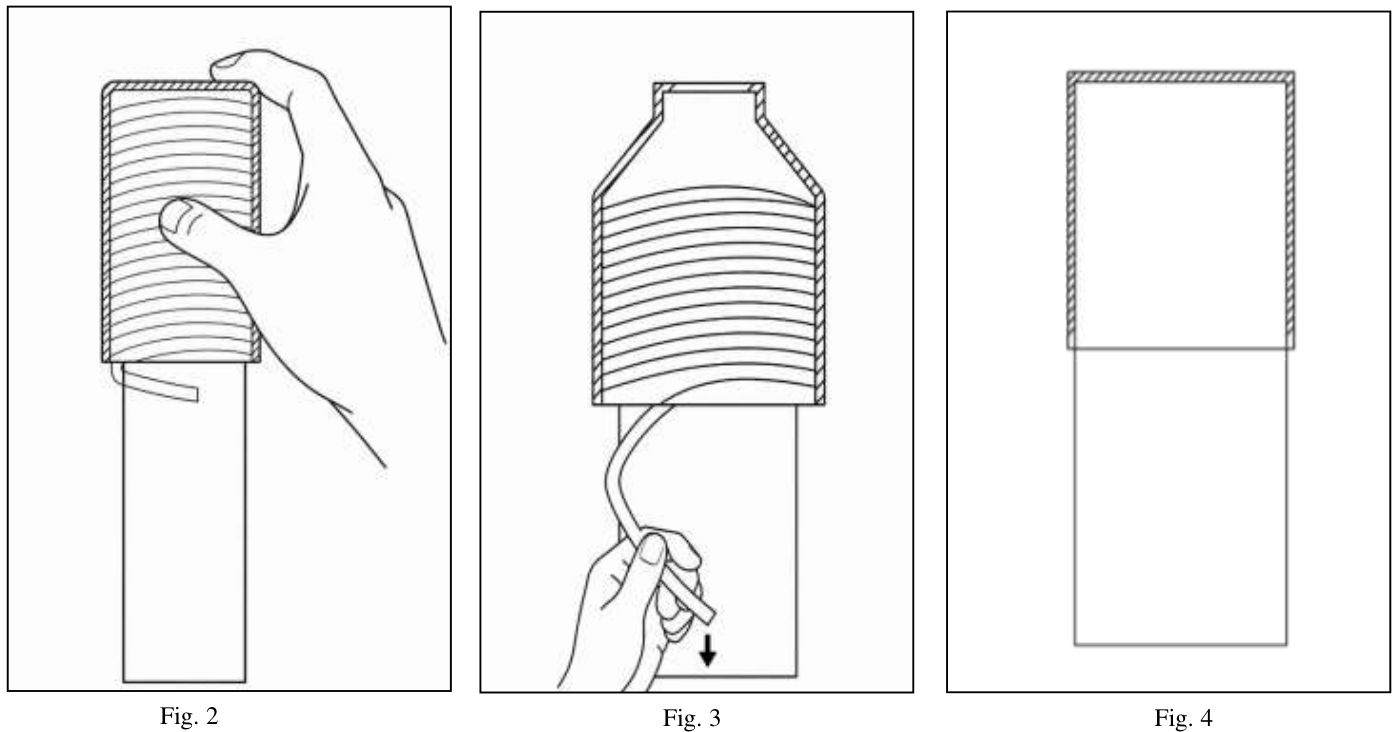

No heat and no tools. Place it over the cable, then pull and unwind the spiral support core: it shrinks onto the cable as the core comes out. Remove the core completely so it recovers fully.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D-412
- ASTM D-624C
- ASTM G-21
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
