Heat Shrink Outdoor Termination Kit GPO/E-1524 — 24 kV
GPO/E-1524 series Class I heat shrinkable outdoor termination kit for 3-core screened, paper insulated, lead sheathed or armoured PILC cable, up to 24 kV.
Choose a size
Selection Charts
| Cable size(sq. mm) | Outdoor kit code | Indoor kit code |
|---|---|---|
| 25 - 50 | GPO-21 | GPE-21 |
| 70 - 120 | GPO-22 | GPE-22 |
| 150 - 240 | GPO-23 | GPE-23 |
| 300 - 500 | GPO-24 | GPE-24 |
Standard tail length is 800 mm for outdoor and 550 mm for indoor terminations; special tail lengths on request. All indoor kit terminations have 1 rain shed on each core. All kits are supplied with full kit contents for making a termination. Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-1524-Series page.

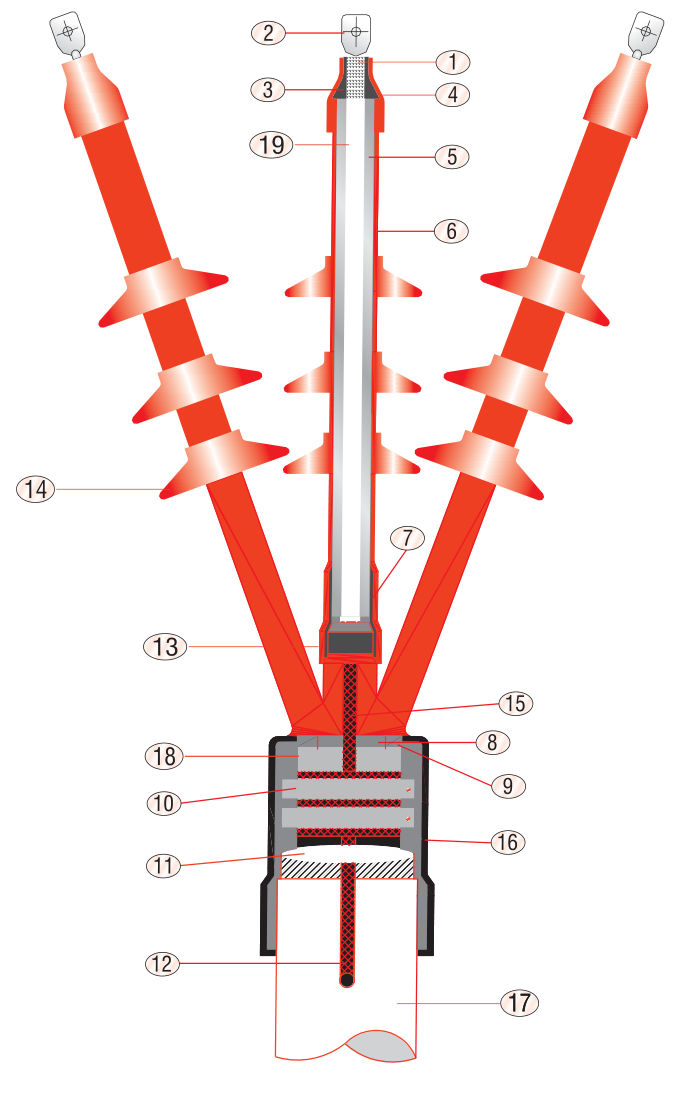

GPO/E-1524 — kit contents (bill of material, standard packing kit)
| No. | Description | Qty. |
|---|---|---|
| Kit components | ||
| 2. | Terminal Lug | 3 Nos. |
| 3. | Lug Sealing Mastic | 3 Strips |
| 4. | Heat Shrinkable Adhesive Lined Terminal Sleeve | 3 Nos. |
| 5. | Heat Shrinkable Oil Barrier Sleeve | 3 Nos. |
| 6. | Heat Shrinkable Non Tracking Weather Resistant Tubing | 3 Nos. |
| 7. | Stress Control Tubing | 3 Nos. |
| 8. | Glass Cushion Tape | 1 Roll |
| 9. | Heat Shrinkable Belting Oil Barrier Sleeve | 1 No. |
| 10. | Worm Drive Clips (Optional) | 2 Nos. |
| 11. | Earthing Plumb (Connection of Lead Sheath to Armour) | 1 Set. |
| 12. | Tinned Copper Braid (Main Earthing) | 1 No. |
| 13. | Stress Control Mastic | 3 Strips |
| 14. | Rain Sheds | 9 Nos. |
| 15. | Insulation Shield Continuity (Small Copper Braid + Copper Wire) | 1 Set |
| 16. | Heat Shrinkable Conducting Breakout | 1 No. |
| Installation aids & accessories (part of standard kit) | ||
| • | Mastic Sealing Tape | 1 Roll |
| • | Cleaning Solvent | 1 Bottle |
| • | Emery Sheet | 1 No. |
| • | Mopping Cloth | 1 Pc. |
| • | Installation Instruction Manual | 1 No. |
Source: GALA Joints and Termination Catalogue, Issue 2, July 2025, GPO/E-1524 page.
Dimensions & Drawings

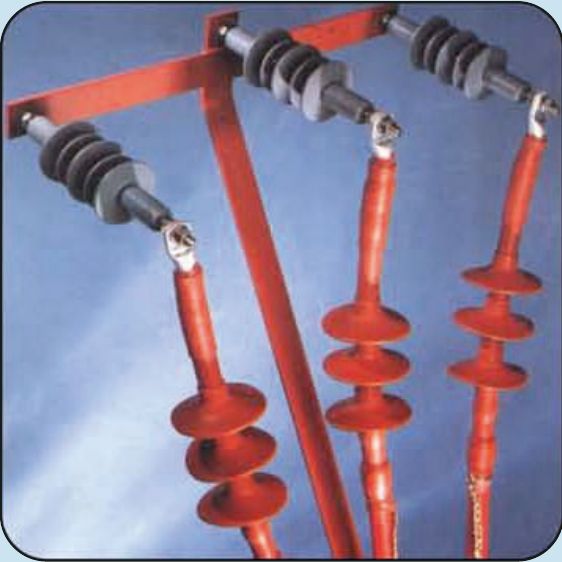

GPO/E-1524 terminates PILC cable outdoors at 24 kV, the mid-tier of Gala's GPO/E paper-insulated termination range.
Covered on this page
- Outdoor Termination - Heat Shrinkable Joints
- Accessories and optional items
Features & Benefits
- Terminal lug and lug sealing mastic
- Heat shrinkable adhesive-lined terminal sleeve
- Heat shrinkable oil barrier sleeve
- Non-tracking weather-resistant tubing and stress control tubing
- Glass cushion tape, belting oil barrier sleeve, optional worm drive clips
- Electrical performance: AC dry withstand 50 kV / 1 minute, DC withstand 96 kV / 15 minutes, lightning impulse withstand above 125 kV
- Earthing plumb connecting lead sheath to armour, tinned copper braid main earthing and heat shrinkable conducting breakout
- Standard tail length 800mm outdoor and 550mm indoor; indoor terminations carry 1 rain shed per core
- Outdoor (GPO-21 to GPO-24) and indoor (GPE-21 to GPE-24) kit codes for 25 to 500 sq mm cable
Applications
- Outdoor termination of 3-core screened PILC cable up to 24 kV
FAQs
Frequently Asked Questions
What is the Heat Shrink Outdoor Termination Kit GPO/E-1524 used for?
It is used for:
- Outdoor termination of 3-core screened PILC cable up to 24 kV
How do I choose the right size?
Choose by conductor size: the selection chart gives the kit for each cable size in sq mm. For example, a 150 - 240 sq mm cable takes GPO-23 (Outdoor) or GPE-23 (Indoor).
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. The instruction sheet in each kit gives the full sequence step by step, including where to start shrinking.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
