Heat Shrinkable Vented Thin Wall Tube
Cross-linked polyolefin heat shrink tube with an internal air-vent/groove design that shrinks wrinkle-free over bends without grease, protecting bolts and fasteners from corrosion.
- ASTM D638
- ASTM D570
- ASTM D792
Material properties
Technical Specifications
| Technical Specification | ||
|---|---|---|
| PROPERTIES | VALUE | STANDARD |
| Physical | ||
| Tensile Strength | 10 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min) | ASTM D638 |
| Water Absorption | 0.15 % (max.) | ASTM D570 |
| Specific Gravity | 1.4 | ASTM D792 |
| Longitudinal Change | -10% (max.) | ASTM D638 |
| Thermal | ||
| Operating Temperature | -40 to +125 °C | IEC 216 |
| Heat Shock (250 °C for 4 hrs.) | No dripping, cracking or flowing | |
| Low Temperature Flexibility(-55 °C for 4 hrs.) | No Cracking | ASTM D2671 |
| Chemical | ||
| Copper Corrosion | Good | ASTM D2671B |
| Chemical Resistance | Good | ASTM D2671 |
| Electrical | ||
| Dielectric Strength | >15 kV/mm. | ASTM D2671 |
| Di-electric Constant | 3.0 (max.) | ASTM D150 |
| Volume Resistivity | 1 × 10¹⁴ Ohm.cm (min) | ASTM D257 |
Selection Chart
| Selection Chart | |||||
|---|---|---|---|---|---|
| Part | Supplied | Recovered | Recovered Wall | Spools | Cut Lengths |
| Number / Size | I.D. (mm) | I.D. (mm) | Thickness (mm) | Mtr./Spool | 1.2Mtr./Box |
| GLC-SV 20/10 | 20.0 | 10 | 0.78 | 100 | 65 |
| GLC-SV 25/12.5 | 25.0 | 12.5 | 0.78 | 50 | 40 |
| GLC-SV 30/15 | 30.0 | 15.0 | 0.87 | 50 | 30 |
| GLC-SV 40/20 | 40.0 | 20.0 | 0.97 | 50 | 20 |
| GLC-SV 45/25 | 45.0 | 25.0 | 0.97 | 50 | 20 |
| GLC-SV 50/25 | 50.0 | 25.0 | 0.97 | 25 | 15 |
| GLC-SV 60/30 | 60.0 | 30.0 | 0.96 | 25 | 10 |
| GLC-SV 70/35 | 70.0 | 35.0 | 1.10 | 25 | 10 |

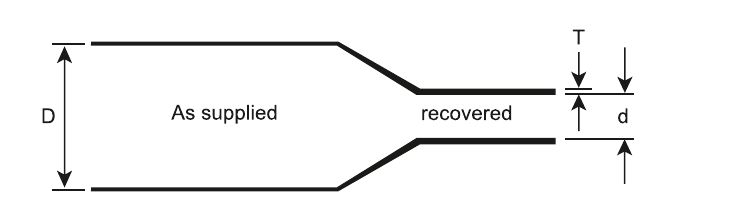

Dimensions & Drawings
Cross-linked polyolefin tube with an internal air-vent groove that shrinks wrinkle-free over bend areas without grease or any other lubricant, protecting wind power anchor bolts, automotive parts and U-bolts against corrosion.
Features & Benefits
- Halogen free
- Resistant to chemical and copper corrosion
- Flexible with good abrasion resistance
- Standard colour black
- Shrink ratio 2:1
- UV stabilized
- Meets RoHS compliance
- Internal air-vent groove for wrinkle-free shrink without grease or lubricant
Applications
- Wind power anchor bolts
- Automotive parts and U-bolts
- Corrosion protection on threaded fasteners
Standards & Compliance
- ASTM D638
- ASTM D570
- ASTM D792
- ASTM D2671
- ASTM D2671B
- ASTM D150
- ASTM D257
- IEC 216
FAQs
Frequently Asked Questions
What is the Heat Shrinkable Vented Thin Wall Tube used for?
It is used for:
- Wind power anchor bolts
- Automotive parts and U-bolts
- Corrosion protection on threaded fasteners
How is it installed?
Clean and degrease the surface, position the part, then shrink it with a gas torch or a hot-air gun: keep the heat moving round it with a smooth, brushing motion so it recovers evenly without scorching. Start at one end and work steadily along to the other.
Which standards and test methods are quoted for it?
These, with the values in the Technical Specification on this page:
- ASTM D638
- ASTM D570
- ASTM D792
- ASTM D2671
- ASTM D2671B
- ASTM D150
- ASTM D257
- IEC 216
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
