Product line
Heat-shrink and PVC end caps, glands and shrouds sealing a cable end against moisture ingress — Insulcap ranges, a de-gassing cap with relief valve, a live end cap and a heat-shrinkable anode cap for cathodic protection.
9 products in the End Caps & Sealing range — 9 with downloadable datasheets, 7 with dimensional spec tables.
The family covers cable end sealing caps (Insulcap), a heat-shrinkable gland (GHSG), a heat-shrink shroud (GHSS), a de-gassing end cap with pressure relief valve, a live end cap, a tamper-proof end seal, an end cap with an integral cable-pulling eye, plain PVC caps, and a heat-shrinkable anode cap for cathodic protection.
Sealed constructions are rated to IP68 where specified. Tested to ASTM D2671, D149, D257, D150, D638 and D570.
Browse every End Caps & Sealing datasheet in the datasheet library →
Showing all 9 products
Insulcap-De-gassing (RV) is a heat shrinkable end cap fitted with a relief valve, used to seal high-voltage and extra-high-voltage cable ends (33 kV and above) while releasing gas that builds up inside the cable during transport and storage in hot climates.
Datasheet

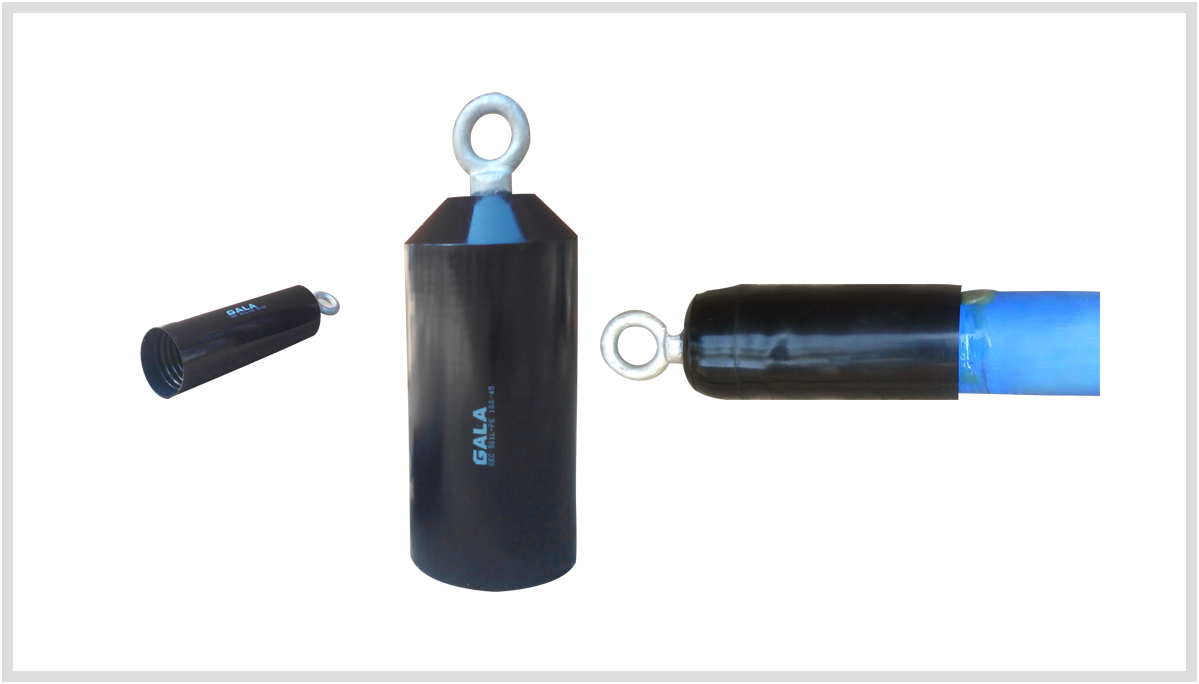

Heat Shrink End Caps with Cable Pulling Eye, for telephone and power cable, form a pulling connection as strong as the cable itself while sealing the end against water and moisture.
DatasheetSpec table

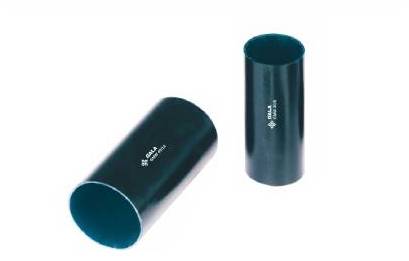

Gala Heat Shrink Shroud (GHSS) is a cross-linked polyolefin sleeve, internally lined with hot melt adhesive, that seals the point where a cable enters a cable gland to IP68.
DatasheetSpec table

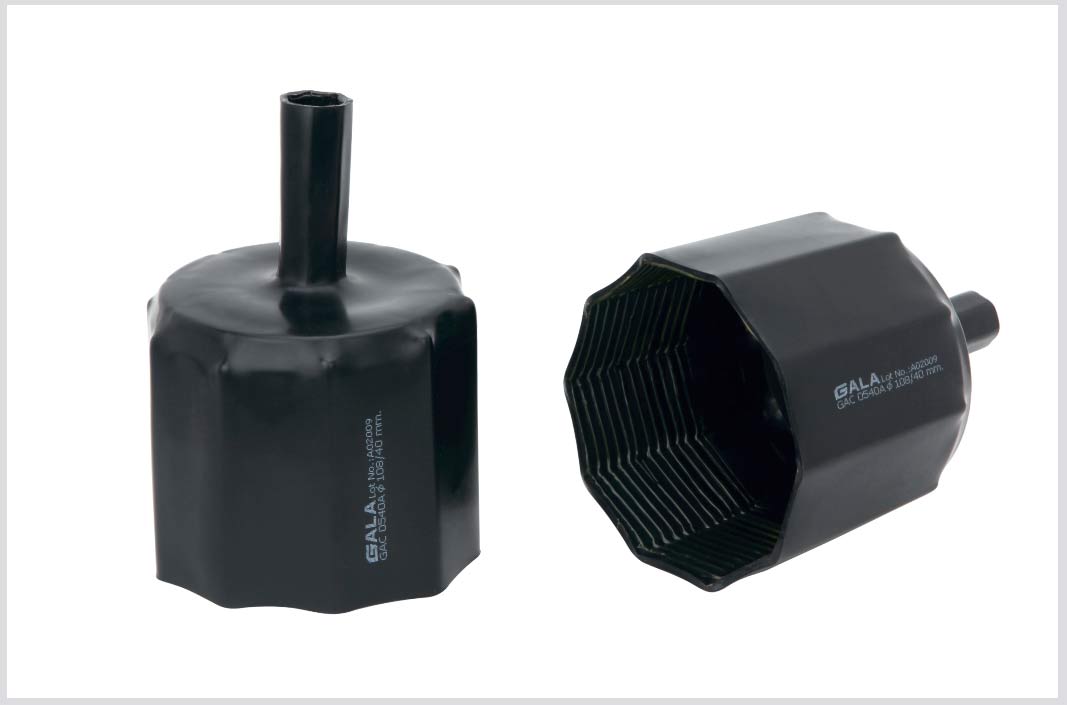

Anode Cap is a cross-linked polyolefin cap with a rubber-based mastic lining that seals and stress-relieves the lead-wire-to-anode connection in cathodic protection systems, sealed to IP68 and rated -55°C to +100°C.
DatasheetSpec table

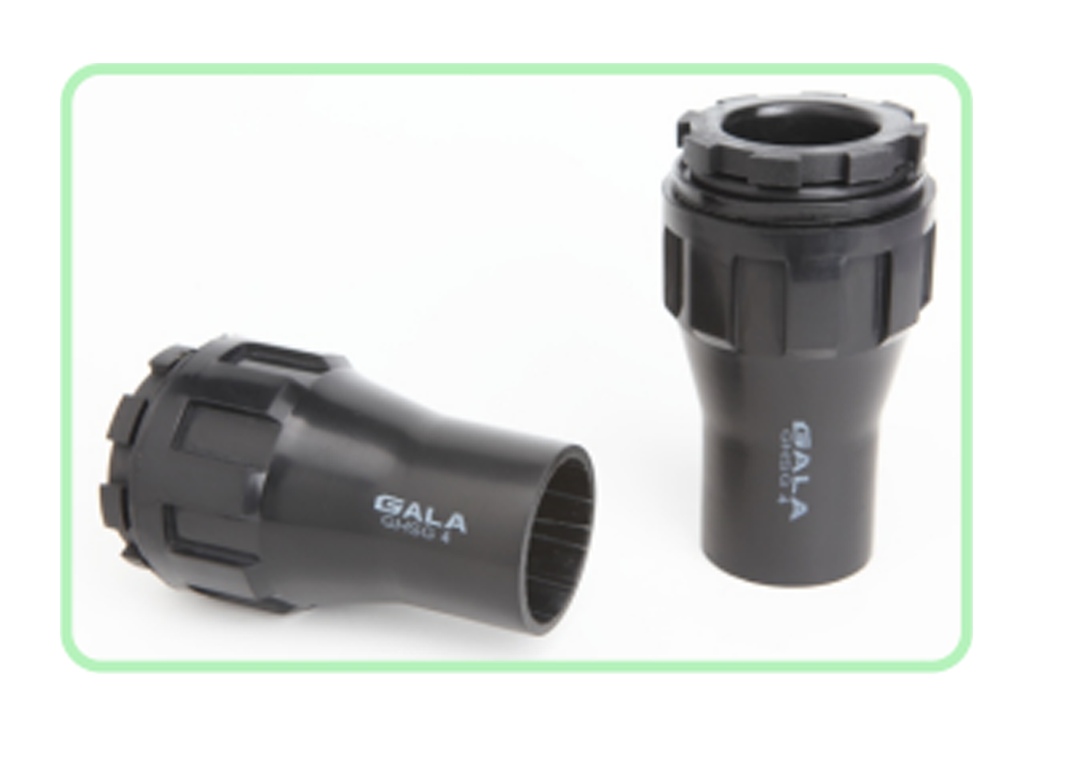

GHSG glands give a watertight, fume-tight seal where cable enters connection boxes, bulkheads or enclosures: a three-part cross-linked polyolefin and nylon-nut assembly, pressure-sealed to 25 psi, rated 600 V.
DatasheetSpec table
Insulcap is Gala's cross-linked polyolefin heat shrink end cap that seals cable ends against water and moisture ingress, in valved, relief-valve degassing and live-cable sealing variants.
DatasheetSpec table
Insulcap-Live (GLEC) is a heat shrinkable cap for sealing live cable ends, manufactured from cross-linked polyolefin in four sizes covering 1.5 to 300 sq.mm conductor.
Datasheet

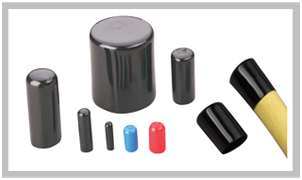

PVC caps are push-on cable end caps made from Polyvinyl Chloride, an economical, tool-free alternative to heat shrink end caps for weathering and moisture protection.
DatasheetSpec table
Tamper Proof End Seal is a heat shrink end cap, cross-linked polyolefin, that forms a permanent, non-removable seal against water and moisture ingress at the cable end.
DatasheetSpec table
No products match your search.
Send us your requirement — voltage class, cable size, environment — and we'll point you to the right part.
