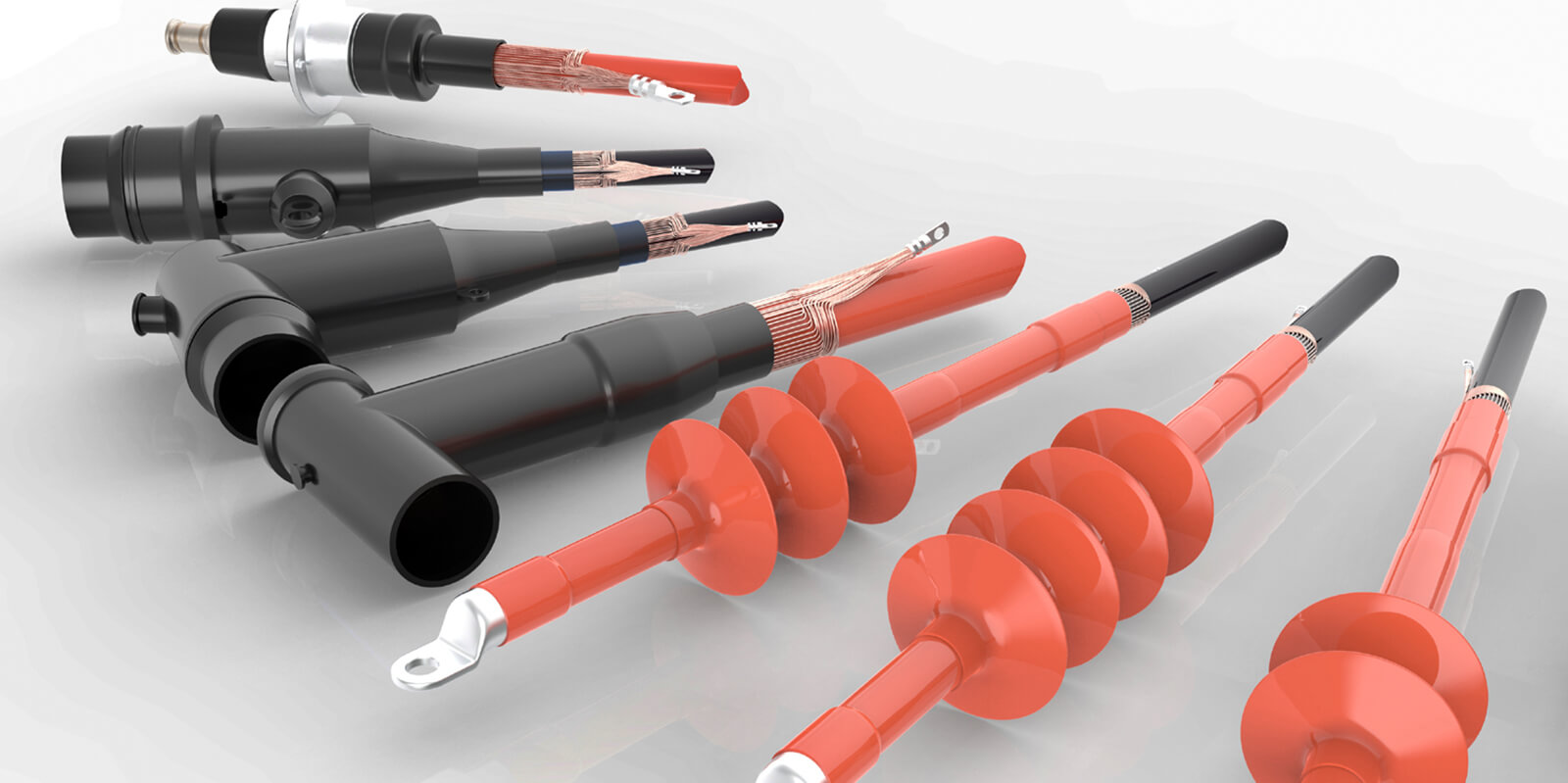

Components for Cable Joints & Terminations
Components that go into power cable accessories — breakouts, rain sheds, boots, repair sleeves, insulation and stress control tubes, mastic tape, springs, clamps and earthing braid.

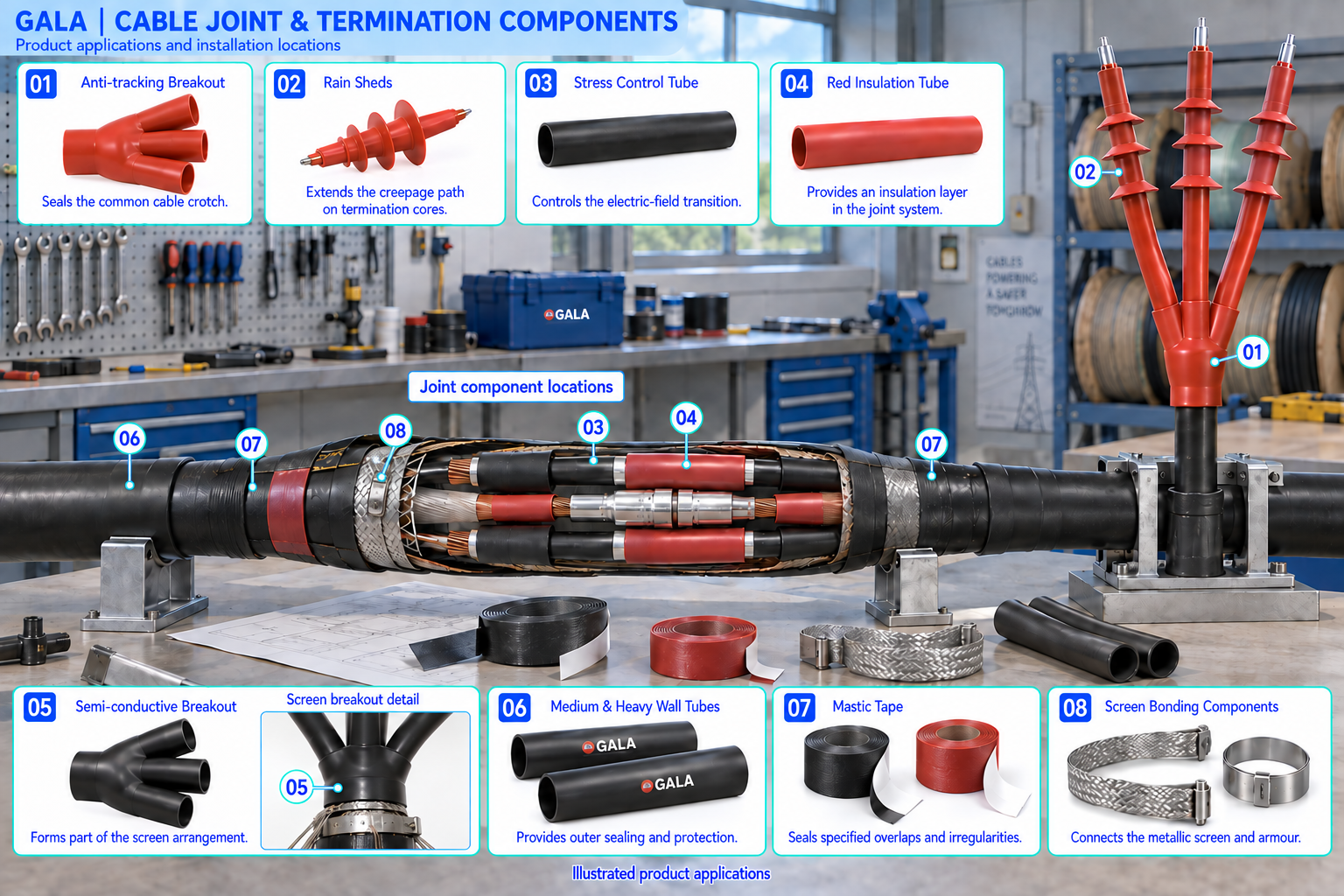

Products in this illustration (8)
- Anti-tracking Breakout
Seals the common cable crotch.
- Rain Sheds
Extends the creepage path on termination cores.
- Stress Control Tube
Controls the electric-field transition.
- Red Insulation Tube
Provides an insulation layer in the joint system.
- Semi-conductive Breakout
Forms part of the screen arrangement.
- Medium & Heavy Wall Tubes
Provides outer sealing and protection.

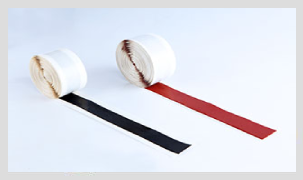

- Mastic Tape
Seals specified overlaps and irregularities.
- Screen Bonding Components
Connects the metallic screen and armour.
Product Images
Gala manufactures and supplies the components that make up power cable accessories. They are suitable for low, medium and high voltage applications and can operate under severe environments.
Covered on this page
- Below are the products offered for Components for Cable Joints & Terminations Industry

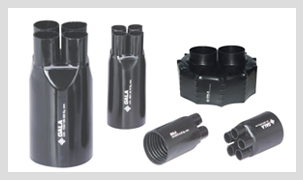

- Heat Shrink Low Voltage Cable Breakouts
- Cold Shrink Breakout

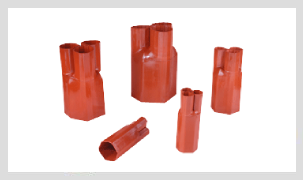

- Heat Shrink Non Tracking Cable Breakouts

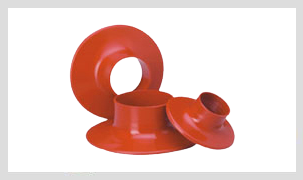

- Heat Shrink Creepage Extension Skirt (Rain Shed)

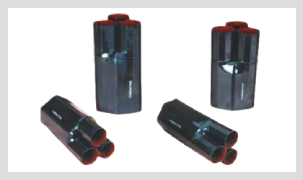

- Heat Shrink Semi Conductivecable Breakout
- Heat Shrink Right Angle / Straight Boot
- Heat Shrink Medium/Heavy Wall Tubes
- Cold Shrink Tubing

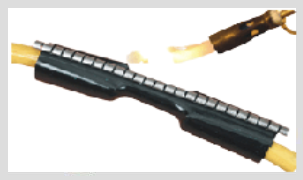

- Heat Shrink Wrap Around Sleeve
- Heat Shrink Red Insulation Tube

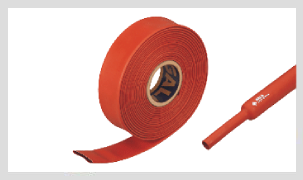

- Heat Shrink Non Tracking Tube

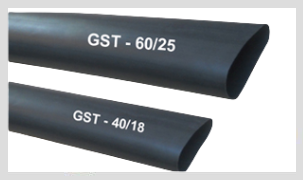

- Heat Shrink Stress Control Tube
- Heat Shrink Integrated Stress Control Tube

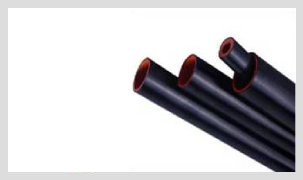

- Heat Shrink Double Layer Tube
- Mastic Tape

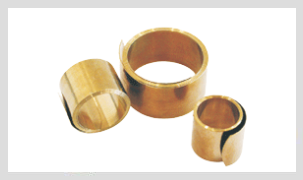

- Constant Force Spring

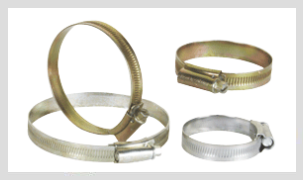

- Clamps
- Tinned Copper Braids
Features & Benefits

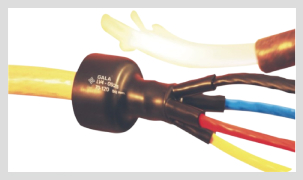

- Low voltage cable breakouts seal the crutch of 2–7 core PVC, XLPE, rubber and PILC cable up to 3.3 kV

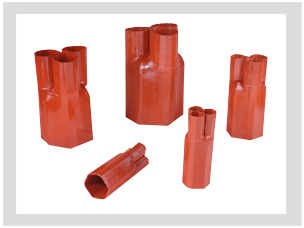

- Non-tracking cable breakout seals the crutch of 3-core PVC/PILC cable up to 36 kV

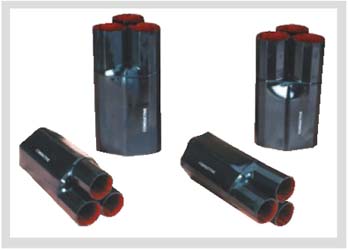

- Semi-conductive cable breakout seals and screens PILC belted cable cores
- Rain sheds extend termination creepage distance without lengthening the tail
- Wrap-around repair sleeve for field repair of a cable jacket

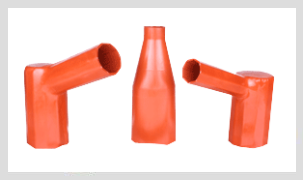

- Right-angle and straight boots insulate termination-box bushings where phase-to-phase or phase-to-earth clearance is below normal air clearance
- Medium and heavy wall tubes protect LV and MV joints and insulate connectors for straight-through joints up to 3.3 kV
- Red insulation tube insulates the joint area up to 66 kV; non-tracking tube and stress control tube also rated to 66 kV

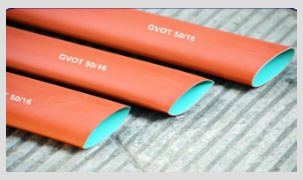

- GVOT integrated stress control sleeve, used as an integral part of Gala terminations up to 24 kV
- Cold shrink breakout and cold shrink tubing in EPDM rubber, free of chloride and sulfur
- Mastic tape (cold-applied butyl sealant), constant force spring, clamps and tinned copper earthing braid
Applications
- Low, medium and high voltage cable accessory assemblies
- Multi-core cable crutch sealing
- Cable jacket repair
FAQs
Frequently Asked Questions
What is the Components for Cable Joints & Terminations used for?
It is used for:
- Low, medium and high voltage cable accessory assemblies
- Multi-core cable crutch sealing
- Cable jacket repair
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
