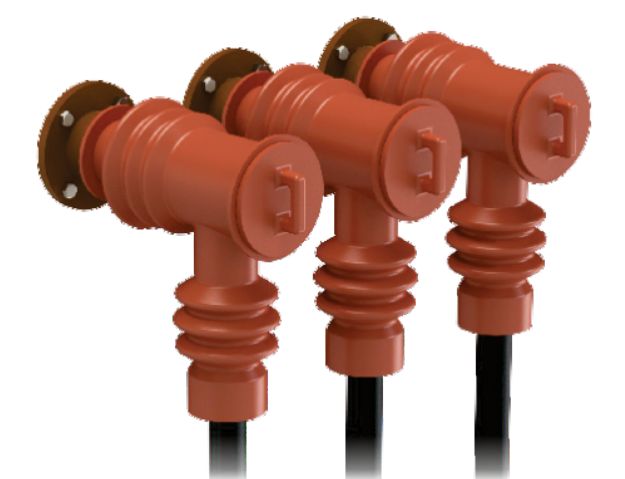

Reusable Insulating Boot
Reusable Insulating Boots are designed for use with all types of terminations and are suitable for PILC and XLPE cable, using a modified silicon/rubber shroud for flexibility.
- Economically viable for 11 kV and 22 kV
Choose a size
Selection Chart
| Product code | ID - bushing entry(min.) | ID - cable entry(min.) | L1(min.) | L2(min.) |
|---|---|---|---|---|
| GRRB - 1 | 44.0 mm | 20.0 mm | 175.0 mm | 170.0 mm |
Source: GALA BUSHINGBOOT and Reusable Insulating Boot catalogue sheet, Issue 2, January 2024.

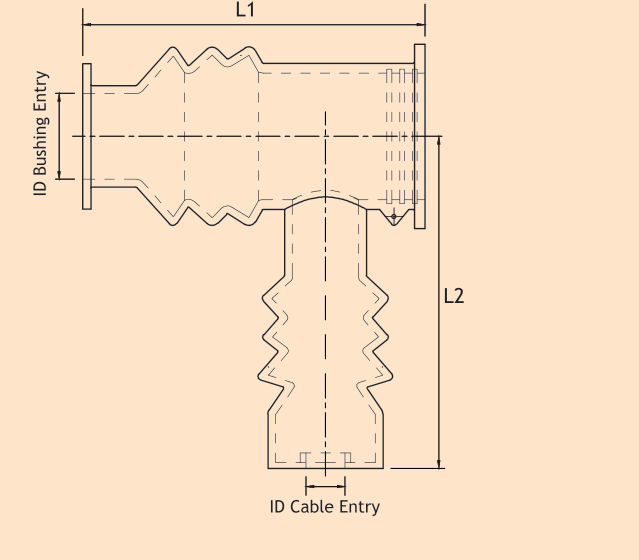

Dimensions & Drawings
Reusable Insulating Boots suit PILC and XLPE cable terminations. The modified silicone/rubber shroud gives the flexibility and dielectric strength needed between phase and phase and phase and ground.
Easy to install and remove as often as required; the connection can be re-energised immediately after installation, sealing the cable, cable lug and bushing against rodent ingress and high humidity.
Features & Benefits
- Easy to install or remove as often as required
- High electrical strength
- Facilitates direct voltage testing
- Connection can be energised immediately after installation
- Range-taking capability
- Economically viable for 11 kV and 22 kV
- Maximum system voltage 36 kV for 1 minute AC high voltage
- Bushing diameter 46–70mm
Applications
- PILC cable terminations
- XLPE cable terminations
- Installations needing repeated boot removal/reinstallation
FAQs
Frequently Asked Questions
What is the Reusable Insulating Boot used for?
It is used for:
- PILC cable terminations
- XLPE cable terminations
- Installations needing repeated boot removal/reinstallation
How do I choose the right size?
Use the selection chart on this page: it lists every code with its dimensions. If you are not sure which fits, send the dimensions you are working to with the form below.
Where can I download the datasheet?
From the "Download datasheet" button at the top of this page, or here:
Can I get a quote, a sample or a size that is not listed?
Send your cable details, quantity and application with the "Request a Quote or Sample" form at the foot of this page. For a size or variant that is not in the chart, describe what you need there, or use Technical support at the top of the page, and the technical team will confirm what can be supplied.
